Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)

NTI Part #: ST-C64K-HDBT-L8-R-Group

ST-C64K-HDBT-L8-R

Additional Images/Videos

NTI Part #: ST-C64K-HDBT-L8-R-Group

The XTENDEX® Multiple HDMI Extender Over HDBase-T with Power Over Ethernet transmits uncompressed digital HDMI signals from 8 sources to 8 remote displays and speakers, each located up to 328 feet away via CAT6/6a/7 cable using HDBase-T technology. Each input corresponds to a specific output in a point-to-point connection: input 1 is always connected to output 1, and so on. Power Over Ethernet (PoE) provides power to all connected receivers.

Also known as: 8x CAT6 HDMI Extender, Rackmount CAT5 HDMI Extender, Multiple HDBase-T Extender, Power Over Ethernet Extender, high definition 1080p extender over cat5, extend HDTV video, digital video balun, 8-port point to point extender, 1080p transmitters 1RU, 4K HDM

Supports 4K, 2K, 1080p, and 1920x1200 resolutions
8 transmitters grouped together in a single 1RU case
Extend up to 328 ft over CATx cable
Supports 3D signals
No power supply required for remote units

ROHS Compliant Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)
Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)Digital Signage Product
CE Compliant Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)
FCC Compliant Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)

Scroll Down to Get Quote

Overview

Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and 2096x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
- With CAT6/6a/7 (23 AWG): 328 feet.
- With CAT5e (24 AWG): 250 feet.
Each input is directly connected to a corresponding output – point-to-point extension.
- Input 1 is connected to output 1, input 2 is connected to output 2, etc.
HDCP compliant.
Supports Power over Ethernet (PoE) – power supply not required at the remote unit.
HDMI features supported:
- 4K x 2K - 3840x2160 and 4096x2160 resolutions
- 24/36-bit Deep Color
- x.v.Color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
- 3D
- Bandwidth up to 300 MHz (10.2 Gbps)
- Support for CEC (consumer electronic control) compatible devices
- Lip Sync
No loss of audio or video quality between the transmitter and remote units.
Reads EDID from the connected display.
Compact 1RU design.
- Rack mount kit included.

Specifications

ST-C64K-HDBT-L8-R

Eight female HDMI input connectors.
Eight female RJ45 HDBase-T connectors for sending high definition video, audio, and DDC signals.
Supported video resolutions:
- Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz, 4096x2160 @ 30Hz)
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200

Dimensions

WxDxH (in): 17x7.05x1.75 (432x179x44mm)
Rack mount kit included

Power

100 to 240 VAC at 50 or 60 Hz via AC adapters (country-specific power cord included).

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and storage relative humidity: 20 to 90% non-condensing RH.

Regulatory Approvals:

CE, FCC, RoHS

Warranty

Two years

Package Includes

One Multiple HDMI Extender
One 24V power supply
User manual
Mounting tabs

Cables

Use HD-xx-MM or DVI-HD-xx-MM cable to connect an HDMI or DVI source or display.
- 8-bit resolution: up to 33 ft (10 m).
- 12-bit resolution: up to 20 ft (6 m).
Use CAT5e/6/6a/7 solid straight through cables for TIA/EIA 568B wiring terminated with standard RJ45 connectors.
- CAT5e (24 AWG): up to 250 feet.
- CAT6/6a/7 (23 AWG): up to 328 feet.
Cables not included.

Remote Unit (Receiver)

Video Output

Supported video resolutions:
- Ultra-HD 4Kx2K resolutions (3840x2160 @ 30Hz, 4096x2160 @ 30Hz)
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200
One female HDMI output connector.
One female RJ45 HDBase-T connector for sending receiving high definition video, audio, and DDC signals.

Dimensions

WxDxH (in): 4.02x4.53x0.98 (102x115x25 mm)

Power

Environmental

Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -4 to 140°F (-20 to 60°C)
Operating/storage relative humidity: 20 to 90% non-condensing RH.

Regulatory Approvals

CE, FCC, RoHS
TAA compliant

Max Distance

250 feet (76 meters) over CAT5e cable (24 AWG).
328 feet (100 meters) over CAT6/6a/7 cable (23 AWG).

Compatible NTI Products

Combine NTI's video converters and extenders for multiple display signals.
- HDMI to VGA Converter Cable
  (HD-VGA-CNVTR-2M-MM)
  - Only supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.

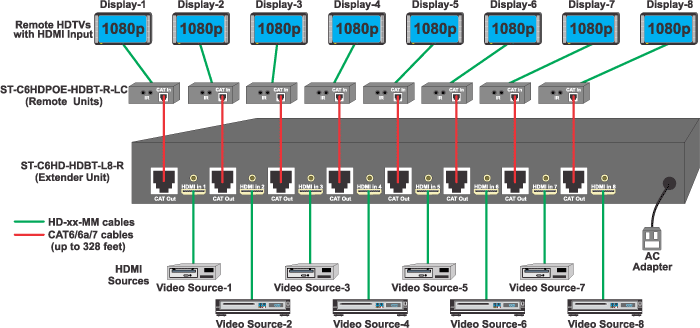

Application Drawings

Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE)

How to extend 8 sources to 8 remote displays

Downloads

Data Sheet:

ST-C6HD-HDBT-L8-R - Data Sheet 266 KB

User Manual:

Multiple HDMI Extender Over HDBase-T with Power Over Ethernet (PoE) — Installation and Operation Manual 1.6 MB
