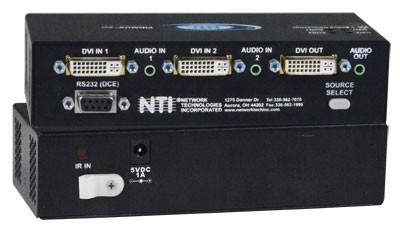

VIDMUX® SE-DVI-2ARS (Front & Back)

Additional Images/Videos

DVI/HDMI Video Switch with Audio & RS232

NTI Part #: SE-DVI-2ARS-Group

The VIDMUX® DVI/HDMI video/audio switch enables one DVI/HDMI display and speakers to be switched between two single link digital DVI/HDMI video sources.

Also known as: DVI Video switch, Digital DVI video only switcher, HDTV switch, DVI-D monitor switch, HDMI/DVI Video Switch, HDMI switch

CE Compliant DVI/HDMI Video Switch with Audio & RS232
FCC Compliant DVI/HDMI Video Switch with Audio & RS232

Scroll Down to Get Quote

Overview

The VIDMUX® DVI/HDMI video/audio switch enables one DVI/HDMI display and speakers to be switched between two single link digital DVI/HDMI video sources.

Supports DVI interface for crisp and clear video quality on flat panel display.
Supports HDTV resolutions up to 1080p, and up to 1920x1200 (WUXGA).
Eliminates redundant video displays.
Supports the DDC2B protocol.
3.5 mm stereo audio input for each channel.
Passes HDMI audio signal through DVI-I port.
- Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
Control via, infrared remote (IR) control or optional RS232.
IR remote control includes power on/off, mute function, and break-away audio (switch audio independent of video).
HDCP compliant.

Specifications

Audio/Video Input

Female DVI-I connectors.
3.5 mm stereo audio jacks.
Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with single link digital DVI outputs.

Audio/Video Output

One Female DVI-I connector.
One 3.5 mm stereo audio jack.
Single link DVI-D signal.
Supports HDTV resolutions up to 1080p, and up to 1920x1200 (WUXGA).

Power

100 to 240 VAC at 50 or 60 Hz via AC Adapter.
Input voltage: 5VDC

Dimensions (WxDxH)

SE-DVI-2ARS: 6.46x2.77x1.55 in (164x70x39 mm).

Cables

Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect the video source or display with integrated speakers (not included).
Use HD-xx-MM HDMI cables with HDMIF-DVIDM adapters to connect an HDMI source or display up to 100 feet away from the switch.

Regulatory Approvals

CE, FCC

Warranty

Two years

Compatible NTI Products

Combine NTI's extenders, switches, splitters and cables for complex applications
- DVI-I Single Link Interface Cable (DVI-IS-xx-MM)
- DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM)

Control Methods

RS232 Control Option

Control
- Female DB9 connector.
- Add "RS" to the end of the part number to specify this option.
- Baud rate 300 through 9600.
Commands
- RS – causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
- CS – causes one INx/OUTx connection to occur.
- RO – reads what output is connected to specified input.
- RU – reads size of switch, reports number of inputs and number of outputs on specified switch.

IR Remote Control

Control can be done using the included IR remote control.
Independently switch video and audio signals.
Press any button in the Video or Audio section to switch the respective output to that input.
Press "Mute" button to disrupt the Audio Out signal (2-port models only).

Application Drawings

DVI/HDMI Video Switch with Audio

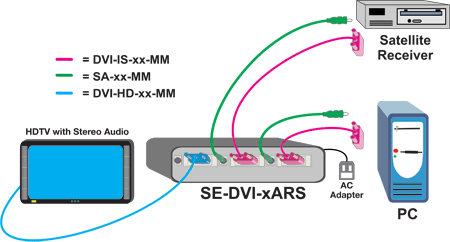

How to share one DVI-D/HDMI monitor among multiple video sources.

Downloads

"We received the SE-DVI-4ARS DVI Video Only switch with custom designed RMT-4-RS Remote Controller and had a chance to test it out. Once we corrected the serial cable pin-out, it works like a champ and will do exactly what we need. The front panel works for us without any changes. Thanks for all the hard work."

Eric Khol

SPAWARSYSCEN

North Charleston, SC

(0)DVI Switch

NTI Part #	Number of Ports	Supported Features	Qty
SE-DVI-2ARS	2	DVI + Audio + RS232
