Connect up to four USB 3.1 SuperSpeed+ peripheral devices to a PC/MAC. Features 2 female USB 3.1 Type C connectors & 2 female USB 3.1 Type A connectors.

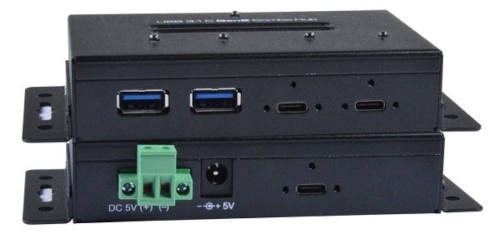

4-Port USB 3.1 Hub, Metal Enclosure – 2 Type C & 2 Type A Ports

NTI Part #: USB3-HUB-2C2A-Group
USB3-HUB-2C2A
USB3-HUB-2C2A
NTI Part #: USB3-HUB-2C2A-Group
The 4-port USB 3.1 Hub connects up to two USB 3.1 Type C and two USB 3.1 Type A SuperSpeed+ peripheral devices to a PC or MAC computer.
  • ROHS Compliant 4-Port USB 3.1 Hub, Metal Enclosure – 2 Type C & 2 Type A Ports
  • CE Compliant 4-Port USB 3.1 Hub, Metal Enclosure – 2 Type C & 2 Type A Ports
  • FCC Compliant 4-Port USB 3.1 Hub, Metal Enclosure – 2 Type C & 2 Type A Ports
Scroll Down to Get Quote

Overview

The 4-port USB 3.1 Hub connects up to two USB 3.1 Type C and two USB 3.1 Type A SuperSpeed+ peripheral devices to a PC or MAC computer.

  • Connect up to two USB 3.1 Type C and two USB 3.1 Type A SuperSpeed+ peripheral devices (keyboard, mouse, touchscreen, flashdri ve, webcam, game controllers, etc.) to a computer.
  • Compliant with USB 3.1 Gen 2 SuperSpeed+ specifications.
    • Backwards compatible with USB 3.0/2.0/1.1/1.0
    • Supports SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Each port supports full 900mA current.
  • Supports Plug-n-Play specification.
  • Hot-swappable.
  • Cascade hubs to connect up to 127 devices.
  • No drivers required.
  • Integrated mounting brackets for easy surface/wall mounting.
  • High quality, rugged steel construction with durable powder coat finish.

Specifications

Connectors
  • Two female USB 3.1 Type A connectors for peripheral devices.
  • Two female USB 3.1 Type C connectors for peripheral devices.
  • One female USB 3.1 Type C connector for PC or MAC computer.
    • Multiplatform support: Windows 7/8/8.1/10, Linux, and MAC OS 10.7 and higher.
Power
  • Input: 110 to 220 VAC at 50 or 60 Hz via AC adapter (included).
  • Output: 5VDC, 4A
  • If additional power is required, a 5V, >4A power supply can be wired to the screw terminal pair and used instead.
  • Power consumption: 15W max
  • Each port supports full 900mA current.
    • The overall maximum power the hub can supply to peripheral USB devices is 13.5W.
    • Overcurrent protection for each downstream port.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -13 to 158°F (-25 to 70°C).
Dimensions
  • WxDxH (in): 5.3x2.88x1.04 (135x73x27 mm).
Regulatory Approvals
  • CE, FCC, RoHS
Package Includes
  • 4-Port USB 3.1 Hub
  • Power adapter
  • 2.05 ft (625 mm) USB 3.1 Type C male-to-male cable.
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters, and cables for complex applications
    • SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters (USB3-AA-xxM)

(0)4 Port USB 3.1 Hub

NTI Part # Description Qty
USB3-HUB-2C2A 4-Port USB 3.1 Hub, Metal Enclosure – 2 Type C & 2 Type A Ports

Collapse all Expand all Related Items :

(0)SuperSpeed USB 3.0 Cables, Male A to Male A

NTI Part # Length Qty
USB3-AA-3-MM-K 3 feet
USB3-AA-6-MM-K 6 feet
USB3-AA-10-MM-K 10 feet

(0)SuperSpeed+ USB 3.1 Cables, Male A to Male C

NTI Part # Description Qty
USB3-AC-1M-K SuperSpeed+ USB 3.1 Cables, Male A to Male C

(0)Other

NTI Part # Qty
USB3-AA-10M
USB3-AA-15M
