Emulates a DisplayPort display (sink device) by providing Hot Plug Detect (HPD) signal to the DisplayPort source device. When used with a KVM/video switch, eliminates the need to reconfigure monitor settings when switching between computers.
DP-HP-MNTR-SRC
DP-HP-MNTR-SRC

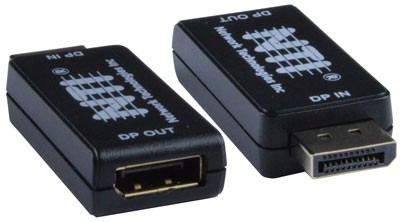

DisplayPort Hotplug Maintainer

NTI Part #: DP-HP-MNTR-SRC-Group
The DisplayPort Hotplug Maintainer emulates a DisplayPort display (sink device) by maintaining a hotplug signal between a video source and sink/display. When used with a KVM/video switch, the DP-HP-MNTR-SRC eliminates the need to reconfigure monitor settings when switching between computers.
  • Maintains hotplug signal between source & display
  • Resolves screen resetting issues when using a DP switch
  • Headless operation
  • Video pass-through
  • DisplayPort v1.4
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant DisplayPort Hotplug Maintainer
  • CE Compliant DisplayPort Hotplug Maintainer
Scroll Down to Get Quote

Overview

The DisplayPort Hotplug Maintainer emulates a DisplayPort display (sink device) by maintaining a hotplug signal between a video source and sink/display. When used with a KVM/video switch, the DP-HP-MNTR-SRC eliminates the need to reconfigure monitor settings when switching between computers.


  • Emulates a DisplayPort display (sink device) by providing Hot Plug Detect (HPD) signal to the DisplayPort source device.
  • Designed for use with KVM/video switches.
    • When the input channel is deselected, the host computer connected to that input channel via the DisplayPort Hotplug Maintainer will recognize the monitor as connected.
    • Eliminates the need to reconfigure monitor settings – keeps screen settings while switching to another computer and then back.
  • Supports all source and display resolutions, including Ultra-HD 8K (7680x4320) @30Hz, 4Kx2K (4096x2160 and 3840x2160) @60Hz, 2560x1600 (WQXGA), 2560x1440p (WQHD), and HDTV 1080p @120Hz.
    • The Hotplug Maintainer is completely transparent.
  • DisplayPort features supported:
    • DisplayPort v1.4
    • Multi-Stream Transport (MST)
    • 10-bit Deep Color
    • RGB, YCC 4:4:4, YCC 4:2:2
    • LPCM
    • HDR
    • High-bandwidth HBR3
      • Bandwidth up to 8.1Gbps per channel (32.4Gbps total)
  • Supports headless and video pass-through operations.
  • Compact design for easy installation and operation.
  • No power supply – powered by video source.

Specifications

Connectors
  • One male DisplayPort connector for source.
  • One female DisplayPort connector for display.
Resolutions
  • Supports all source and display resolutions, including Ultra-HD 8K (7680x4320) @30Hz, 4Kx2K (4096x2160 and 3840x2160) @60Hz, 2560x1600 (WQXGA), 2560x1440p (WQHD), and HDTV 1080p @120Hz.
    • The Hotplug Maintainer is completely transparent.
Power
  • Powered by video source.
Dimensions
  • WxDxH: 1x2.45x0.5 in (25.4x62.23x12.7 mm).
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Cables
  • One 1-foot DisplayPort male-to-female cable included.
    • Use the extension cable in tight spaces or where connectors are too close together.

(0)DisplayPort Hotplug Maintainer

NTI Part # Description Qty
DP-HP-MNTR-SRC DisplayPort Hotplug Maintainer
