The XTENDEX® Dual Monitor DVI USB KVM Extender provides remote KVM (USB keyboard, USB mouse and two 1080p DVI monitors) access to a dual-head USB computer up to 472 feet (144 meters) away via two CAT6/6a/7 cables.

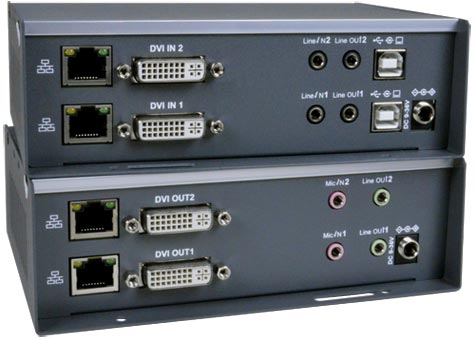

Each KVM extender consists of a local unit that connects to a dual-head computer, and a remote unit that connects to two DVI monitors, 3.5mm stereo audio speakers and microphone, and up to eight USB devices (keyboard, mouse, flash drive, HDD, or touchscreen display).

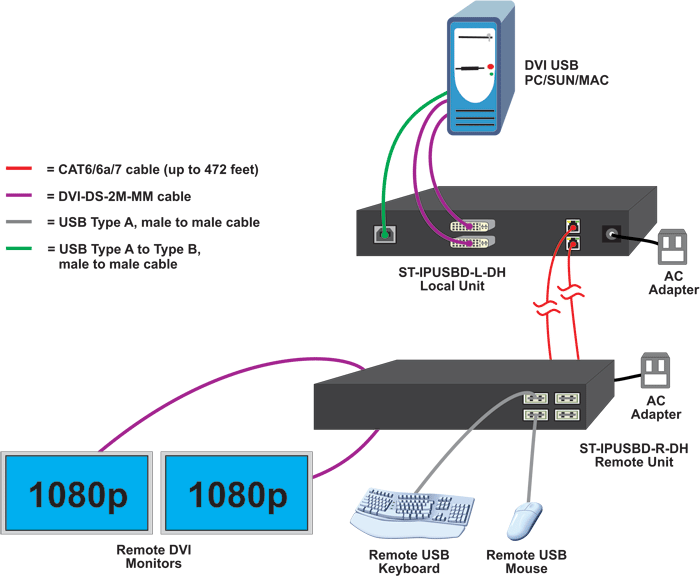

The local and remote units can be connected together for a Point-to-Point connection via CAT6/6a/7 cable, or a Point-to-Many or Many-to-Many connection via a managed Gigabit network switch.
- Signal transmission via two CAT6/6a/7 cables up to 472 feet (144 meters).
- Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
- Extend up to 472 feet in a Point-to-Point connection.

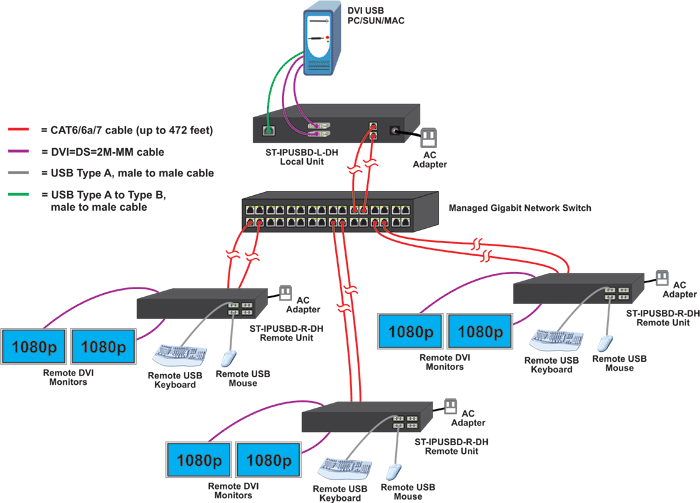

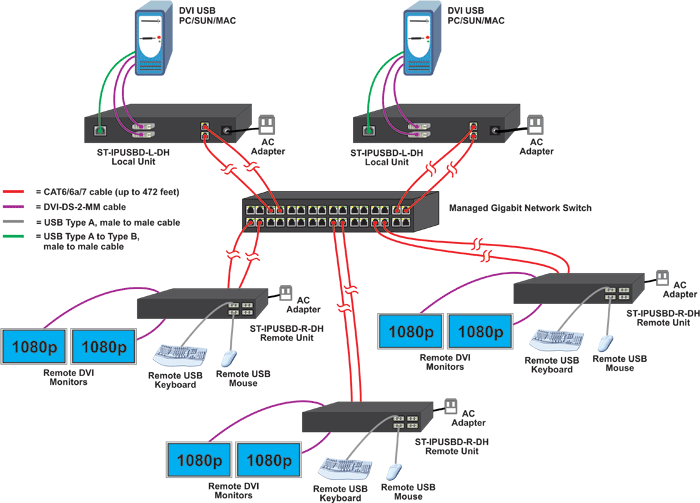

- Extend up to 944 feet in a Point-to-Point, Point-to-Many, or Many-to-Many connection via a managed Gigabit network switch.
- The max length between most switches and the local/remote unit is 472 feet.
- The switch itself will determine the maximum distance.
- HDCP 1.4 compliant.
- USB ports for keyboard, mouse, flash drive, HDD or touchscreen display.
- Four USB 2.0 and four USB 1.1 connectors.
- Keyboard and mouse are hot-pluggable.

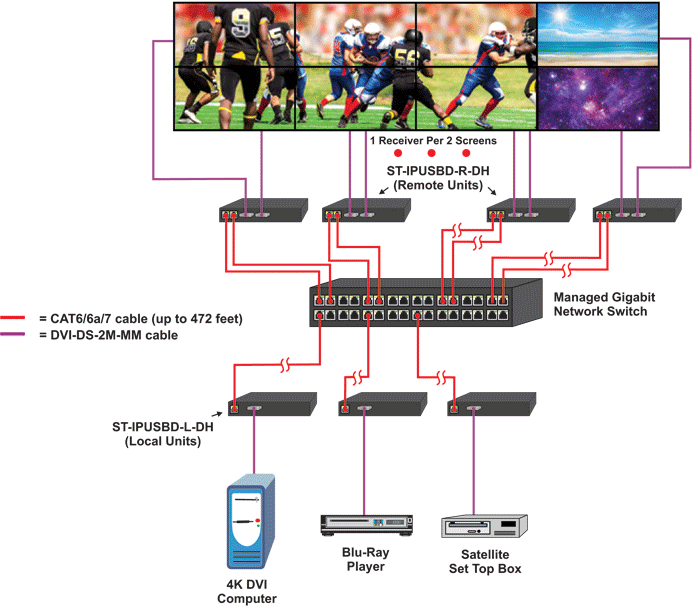

- Supports video wall installations from 1x2 to 4x4 screens.
- Displays can be rotated 180 and 270°.
- Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for managed network switch.)
- Support for Point-to-Many or Many-to-Many connections requires a managed Gigabit network switch with IGMP support and Jumbo frame support.
- Manage transmitter/receiver connections and video wall configuration with web interface or network switch that supports VLAN.
- Each VLAN acts as a separate HDMI Over IP Channel on the network.
- When using multiple remote units, there are two USB control modes - Exclusive Mode and Sharing Mode.
- USB Exclusive Mode: Only one remote unit can have USB control over the source computer at any time.
- USB Sharing Mode: Multiple remote units share the control of the source computer.
- Up to 5 USB devices will be recognized by the computer.
- Customizable EDID table on local unit.
- Supports the DDC2B protocol.
- Extracts audio from an HDMI video source connected to the transmitter using DVI-HD-xx-MM cable and outputs through the 3.5mm stereo audio port on the receiver.
- Selectable through the web interface.
- Easily expandable – add receivers as you add control stations.
- Integrated mounting brackets for easy surface/wall mounting.
Note:
The top layer of the transmitter(s) only pairs with the top layer of the receiver(s), and the bottom layer of the transmitter(s) only pairs with the bottom layer of the receiver(s). For example, the top and bottom layers of one receiver unit cannot display the same video from a single video source connected to a transmitter.
