Rackmount VGA SUN USB KVM Console Drawer 1RU

Rackmount VGA SUN USB KVM Console Drawer 1RU

NTI Part #: RACKMUX-VS17-T-Group

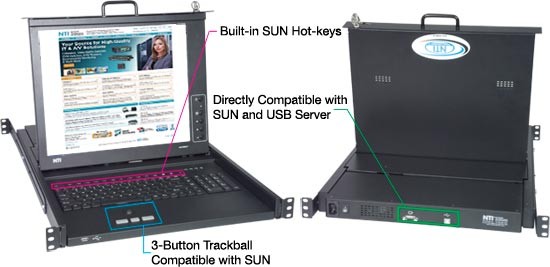

RACKMUX-VS17-NT (Front & Back)

Additional Images/Videos

NTI Part #: RACKMUX-VS17-T-Group

The RACKMUX® VGA SUN USB KVM Drawer combines a rackmount VGA LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.

Also known as: SUN USB KVM Drawer, SUN console drawer, rackmount SUN USB KVM shelf, 1RU rack mount SUN USB keyboard monitor mouse drawer, 17" folding monitor

Single-Person Installation

Designed and Manufactured in the U.S.A.
ROHS Compliant Rackmount VGA SUN USB KVM Console Drawer 1RU
CE Compliant Rackmount VGA SUN USB KVM Console Drawer 1RU

Scroll Down to Get Quote

Overview

The RACKMUX® VGA SUN USB KVM Drawer combines a rackmount VGA LCD monitor, SUN USB keyboard, and trackball mouse in a space-saving 1RU industrial strength drawer.

Forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
- Optional sunlight readable monitor available.
Supports SUN-compatible 1152x900 resolution.
Torque-friction hinges-monitor does not wobble, spring, or slam shut.
Compact, heavy-duty tactile keyboard.
- Available with 17-key numeric keypad or large wrist-rest.

Designed to be a one-person job when installing the drawer.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Available with optional mounting bracket for two-post style telco rack.
Rugged steel construction with durable powder coat finish.
LCD auto-shutoff in closed position.
Internal cable arm provides proper cable management for sliding the drawer open and closed.
Equipped with On Screen Display (OSD).
Front panel security lock.
Front panel USB port to connect an external USB device, such as a flash drive.

Specifications

Host Interface

Compatible with USB-enabled SUN, Windows, Linux, Apple, IBM, and HP computers.
One female 15-pin HD and one female USB Type B connectors.
Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11.

Monitor

Forward-folding 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
1280x1024 video resolution.
- Supports SUN-compatible 1152x900 resolution.
Tilt: up to 120°
Frequency:
- RACKMUX-VS17-NT:
  - Horzontal: 31 to 80 KHz
  - Vertical: 56 to 76 Hz.
Brightness:
- RACKMUX-VS17-NT: 300 nits
Contrast Ratio::
- RACKMUX-VS17-NT: 500:1
Supports DDC1 and DDC2B protocols.
OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.

Devices

Keyboard available in: English(US).
- RACKMUX-VS17-NT: 114-key (US) SUN compatible keyboard with numeric keypad.
Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
Three button trackball mouse.
Front panel USB 1.1 port to connect external USB devices.
- Female USB Type A connector.

Cables

6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
6-foot (1.8-meter) power supply cable included.

Power

•100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
Power Consumption: 30 W
Maximum Inrush Current: 30A

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Dimensions

WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
Weight: 26 lbs. (12 kg)
Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years

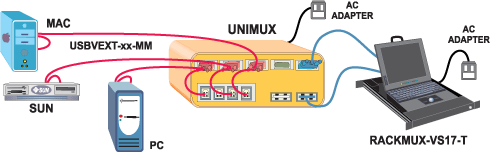

Application Drawings

Rackmount VGA SUN USB KVM Console Drawer 1RU

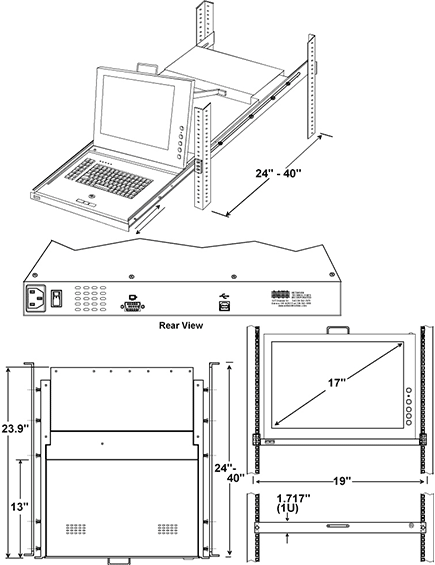

CAD Drawings

Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
SUN USB KVM Drawer with SUN USB Keyboard (RACKMUX-VS17)

Keyboard Layouts

Rackmount SUN USB KVM Console Drawer

RACKMUX-VS17-T-8USBHD, RACKMUX-DS17-T, RACKMUX-VS17-T(S)
Rackmount SUN USB KVM Drawer with Numeric Keypad

RACKMUX-VS17-NT-8USBHD, RACKMUX-DS17-N(T)-xDVIHD, RACKMUX-DS17-NT, RACKMUX-VS17-NT(S)

Downloads

Video:

RACKMUX NTI KVM Drawers: Single-Person Installation
Excluding 20" models

User Manual:

RACKMUX-VS17-T / RACKMUX-DS17-T 411 KB
Rackmount Drawer with SUN Keyboard, LCD Monitor and Trackball

(0)SUN USB KVM Drawers with VGA Monitor

NTI Part #	Description	Screen Size	Qty
RACKMUX-VS17-NT	SUN USB KVM Drawer, Trackball mouse, Numeric keypad	17"

Related Items :

(0)Mounting Bracket for Two-Post Style Telco Rack

NTI Part #	Description	Qty
RL-T15-TEL	Mounting Bracket for Two-Post Style Telco Rack
