DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet

NTI Part #: VOPEX-FODVI-SC4-MDP-Group

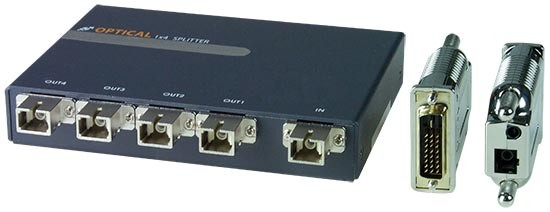

VOPEX-FODVI-SC4-MDP Optical Splitter and ST-1FODVI-R-SC-MDP Remote Unit (Front & Back)

NTI Part #: VOPEX-FODVI-SC4-MDP-Group

The VOPEX® DVI Splitter/Extender simultaneously distributes high resolution DVI video to up to four displays up to 3,280 feet (1,000 meters) from a computer using single-strand SC multimode fiber optic cable.

The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host DVI video source; and a receiver for each remote DVI display. The units are interconnected by single-strand multimode SC fiber optic cable.

Also known as: DVI-D splitter extender fiber, multiple DVI monitors, digital DVI video distribution over SC multimode fiber cable, optical monitor splitter, share video, split DVI video

CE Compliant DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet
FCC Compliant DVI Splitter/Extender via Multimode Fiber Optic Cable up to 3,280 Feet

Scroll Down to Get Quote

Overview

The VOPEX system consists of three components: the optical splitter, which connects to the transmitter and receivers; the transmitter, which connects to the host DVI video source; and a receiver for each remote DVI display. The units are interconnected by single-strand multimode SC fiber optic cable.

Broadcast real-time DVI video to multiple display locations.
Supports crisp and clear resolutions to 1920x1200.
Signal transmission via single strand multimode SC fiber optic cable – no RF interference.
Transmitter and receivers have small form factor for easy connection and placement.
Cables can be installed in conduit prior to transmitter/receiver installation.
EDID learning for the support of any DVI display device.
Complies with DVI 1.0 standard.
Ideal solution for digital signage applications.

Specifications

Optical Splitter

Connectors

Five SC fiber connectors

Cables

Use a FIBER-S-SCSC-50-xM (simplex multimode SC 50-micron) multimode fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (1,000 meters).
Cables not included.

Power

Powered from computer connected to transmitter

Dimensions

WxDxH: 4.72x4.06x0.94 in (120x103x24 mm)

Warranty

Two years

Distances & Resolutions
Distance (feet)	Maximum Resolution
3,280	1024x768 (XGA)
2,300	1280x1024 (SXGA)
1,650	1600x1200 (UXGA)
984	1920x1200 (WUXGA)

Transmitter and Receivers

Video

Connectors (for transmitter and receivers): one male DVI-D single link connector and one SC fiber connector.
Supports resolutions up to 1920x1200 (WUXGA); refer to the resolution chart below for resolutions at different lengths.
EDID learning for the support of any DVI display device.
Low RFI/EMI.
Laser Class 1 Safety compliant.
Optical source: 850 nm VCSEL.
Supports 50/125um SC type multi-mode fiber optic cable.
Frequency Bandwidth : 1.65Gbps (Single Link)

Power

Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapters included.)

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -4 to 158°F (-20 to 70°C).

Regulatory Approval

FCC, CE

Dimensions

WxDxH: 1.57x2.64x0.59 in (40x67x15 mm)

Warranty

Two Years

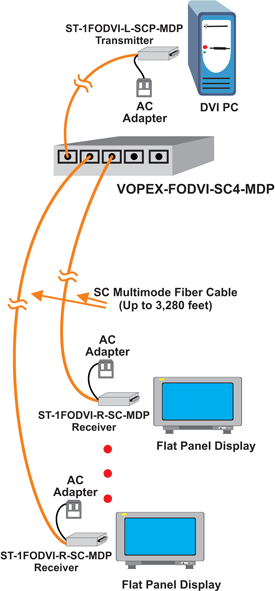

Application Drawings

DVI Splitter/Extender via Multimode Fiber Optic Cable

How to use one computer to display the same high-resolution image on four monitors.

Downloads

Data Sheet:

DVI Splitter/Extender via Multimode Fiber Optic Cable 105 KB

(0)DVI Splitter/Extender via Multimode Fiber Optic Cable

NTI Part #	Description	Qty
VOPEX-FODVI-SC4-MDP	Splitter: 1 SC Fiber Input, 4 SC Fiber Outputs
