Plenum VGA Monitor Cable

NTI Part #: VEXT-PLNM-Group

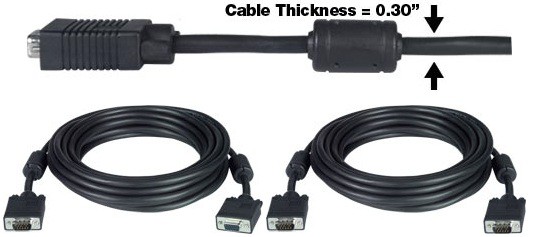

VEXT-PLMN-xx Male to Female (left) - VEXT--PLMN-xx-MM Male to Male (right)
VEXT-PLMN-xx Male to Female (left) - VEXT--PLMN-xx-MM Male to Male (right)
NTI Part #: VEXT-PLNM-Group
Extend a VGA monitor up to 100 feet at high resolutions up to 1920x1200. Ideal for applications in walls and plenum airspaces.
Scroll Down to Get Quote

Overview

  • CMP Rated flame-retardant plenum PVC jacket.
  • No ghosting and no degradation - guaranteed.
  • Ideal for applications in walls and plenum airspaces.
  • Thickness: 0.30" (7.6 mm).
  • Gold plated contacts.
  • Three 75 ohm mini coaxial cables.
  • Supports 1920x1200 (WUXGA) video resolution up to 100 feet (30 meters).
  • The shield consists of mylar foil, braided shield and drain wire.
  • Drain wire and braid connected to connector shell.
  • Male 15HD to female 15HD extension VEXT-PLNM-xx.
  • Male 15HD to male 15HD interface VEXT-PLNM-xx-MM.
  • Available lengths: 25/50/75/100 feet.

(0)Plenum VGA Video Cable, Male to Male

NTI Part # Length Qty
VEXT-PLNM-25-MM 25 feet
VEXT-PLNM-50-MM 50 feet
VEXT-PLNM-75-MM 75 feet
VEXT-PLNM-100-MM 100 feet
