Low-Cost Mini DVI Extender via One CAT5/6/7 up to 100 Feet

NTI Part #: ST-C5DVI-MINI-Group

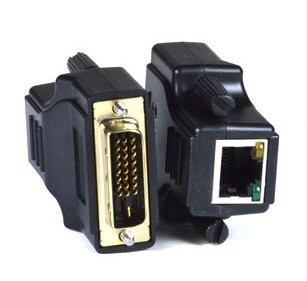

The XTENDEX® Mini DVI Extender transmits digital DVI video signals up to 100 feet away from a DVI source over a single CAT5/6/7 cable. Each video extender consists of two interchangeable units that can be connected to a single link digital DVI source and a DVI display. No power supply is necessary.

Also known as: DVI extender single CAT5, Media center extender, Set-top box extender, cat6 DVI-D monitor extender, remote digital DVI monitor, high definition 1080p extender, extend HDTV video, balun, dvi over cat6 protocol.

Product Highlights

Compact size
No power supply
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.

ROHS Compliant Low-Cost Mini DVI Extender via One CAT5/6/7 up to 100 Feet
Low-Cost Mini DVI Extender via One CAT5/6/7 up to 100 FeetDigital Signage Product
CE Compliant Low-Cost Mini DVI Extender via One CAT5/6/7 up to 100 Feet
FCC Compliant Low-Cost Mini DVI Extender via One CAT5/6/7 up to 100 Feet

Scroll Down to Get Quote

Overview

Transmits a single link digital DVI signal over one CAT5/6/7 cable.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Refer to the resolution chart in the specifications section for resolutions using different CATx cable types and lengths.
Transmitter and receiver units are interchangeable.
No power supply is necessary.
DVI 1.0 compliant.
Built-in default EDID configuration tables.

Specifications

Local & Remote Unit

One male DVI-D connector for connecting to a video source or display.
- Signal type: single link digital DVI.
One female RJ45 connector for sending/receiving high definition video.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.

Dimensions

Local and remote unit WxDxH: 1.97x1.57x0.79 in (50x40x20 mm)

Environmental

Operating temperature: 32 to 104°F (0 to 40°C).
Storage temperature: -4 to 140°F (-20 to 60°C).
Operating/storage relative humidity: 20 to 90% non-condensing RH.

Regulatory Approvals

CE, FCC, RoHS.
TAA compliant.

Warranty

Two years.

Cables

Use CAT5/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Distances and Resolutions for CAT5/5e/6 Cables
Cable	Distance (ft)	Maximum Resolution
CAT5 Solid STP, CAT5e Solid STP/UTP, CAT6 Stranded STP/UTP	100	480p/60Hz
	50	720p/60Hz
	25	1080p/60Hz
	25	1920x1200/60Hz
CAT5e Stranded UTP	50	720p/60Hz
	25	1080p/60Hz
	25	1920x1200/60Hz
CAT6 Solid UTP/STP	100	480p/60Hz
	75	720p/60Hz
	50	1080p/60Hz
	50	1920x1200/60Hz
CAT6a Stranded UTP	50	720p/60Hz
CAT6a Solid STP	75	720p/60Hz
	50	1080p/60Hz
	50	1920x1200/60Hz
CAT7 Solid/Stranded STP	75	720p/60Hz
	50	1080p/60Hz
	50	1920x1200/60Hz
Flat CAT7 Stranded STP	25	1080p/60Hz
Flat CAT7 Stranded STP	25	1920x1200/60Hz

Application Drawings

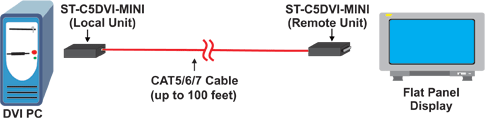

DVI Extender Mini Compact CAT5 1080p WUXGA Remote HDTV Video

Downloads

User Manual:

ST-C5DVI-MINI - Installation & Operation Manual 1.5 MB
