DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)

NTI Part #: ST-1FODVI-SC-Group

The XTENDEX® DVI Extender via Fiber Optic Cable locates a single link digital DVI-D display up to 3,280 feet (1,000 meters) from a computer using a single SC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

Also known as: DVI extender, Single Link DVI Optical extension, long DVI, DVI fiber optic extension system, Fiber Optic extender, DVI to fiber optic, exceed maximum DVI cable length, balun

Supported Features

ROHS Compliant DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)
DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)Digital Signage Product
FCC Compliant DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)

Scroll Down to Get Quote

Overview

Complies with DVI 1.0 standards.
Signal transmission via one strand multimode (50-micron or 62.5-micron) SC fiber optic cable – no RF interference.
Small form factor – for easy connection and placement.
Cables can be installed in conduit prior to extender installation.
EDID learning for the support of any DVI display device.

Low RFI/EMI for sensitive applications.
No software to install.
The DVI Optical Extender is the ideal solution for a wide range of applications. Examples include:
- Remote DVI display monitoring for medical, military, aerospace, industrial and traffic control applications.
- Digital Flat Panel Displays (FPD), Plasma Display Panels (PDP) and projectors in conference rooms and auditoriums.
- Kiosks with digital FPDs.
- Color LED signboards, FPDs and PDPs for information display at stadiums.

Specifications

Connectors (for transmitter and receiver): one male DVI-D single link connector and one SC fiber connector.
Supports resolutions up to 1920x1200 (WUXGA); refer to the resolution chart below for resolutions at different lengths.
EDID learning for the support of any DVI display device.
Low RFI/EMI.
Laser Class 1 Safety compliant.
Optical source: 850 nm VCSEL.
Supports 50/125um SC type multi-mode fiber optic cable.
Frequency Bandwidth : 1.65Gbps (Single Link)

Dimensions

WxDxH: 1.6x2.6x0.6 in (41x66x15 mm)

Power

Local unit: powered from attached computer.
Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)

Distances and Resolutions
Cable	Distance	Maximum Resolution
50-micron	3,280 feet (1,000 meters)	1024x768 (XGA)
	2,300 feet (701 meters)	1280x1024 (SXGA)
	1,650 feet (503 meters)	1600x1200 (UXGA)
	984 feet (300 meters)	1920x1200 (WUXGA)
62.5-micron	3,280 feet (1,000 meters)	1280x1024 at (SXGA)
	2,300 feet (701 meters)	1600x1200 at (UXGA)
	1,650 feet (503 meters)	1920x1200 at (WUXGA)

MTBF

91,952 hours.

Environmental

Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 158°F (-20 to 70°C).

Cables

Use a simplex multimode SC 50-micron (FIBER-S-SCSC-50-xM) or 62.5-micron multimode fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (1,000 meters).

Environmental

Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: -4 to 158°F (-20 to 70°C).

Regulatory Approvals

FCC, RoHS

Package Includes

DVI optical transmitter.
DVI optical receiver.
One power supply.
User manual.

Warranty

Two years

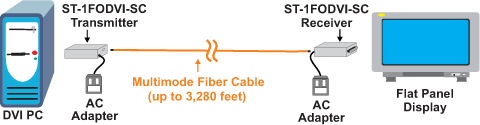

Application Notes

DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet (1,000 meters)

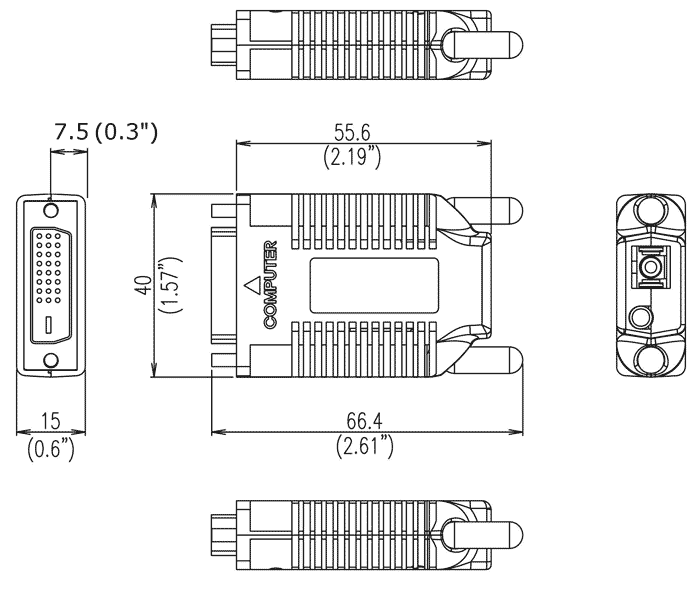

CAD Drawings

DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet - ST-1FODVI-SC

Downloads

Data Sheet:

ST-1FODVI-SC - Data Sheet 550 KB

(0)DVI Female to Female Gender Changer

NTI Part #	Name	Qty
DVII-FF	DVI-I Gender Changer, Female-to-Female

Collapse all Expand all Related Items :

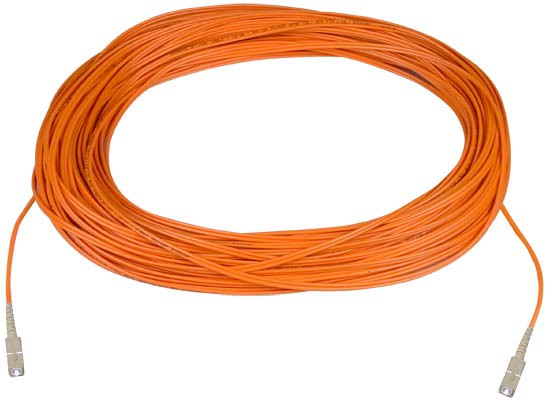

(0)Compatible Simplex 50/125 SC/SC Fiber Optic Cable

NTI Part #	Length	Qty
FIBER-S-SCSC-50-50M	50 meters
FIBER-S-SCSC-50-100M	100 meters
FIBER-S-SCSC-50-300M	300 meters
FIBER-S-SCSC-50-500M	500 meters
FIBER-S-SCSC-50-700M	700 meters
FIBER-S-SCSC-50-1000M	1000 meters

(0)Other

NTI Part #	Qty
ST-1FODVI-SC
