Converts BNC and S-Video signals into VGA video.

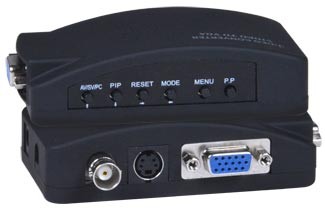

BNCSV-VGA-CNVTR (Front & Back)
BNCSV-VGA-CNVTR (Front & Back)

Additional Images/Videos

BNC/RCA Composite Video + S-Video to VGA Converter

NTI Part #: BNCSV-VGA-CNVTR-Group
The BNC/RCA Composite Video + S-Video to VGA Converter changes Composite video and S-Video signals from surveillance DVRs, security cameras, quad video processors, etc. into a VGA output for computer monitor displays.
Also known as: BNC to VGA converter, S-Video to VGA converter, BNC composite to VGA converter, BNC composite & S-Video converter, BNC/RCA to VGA converter, Composite BNC/S-Video to VGA converter
  • ROHS Compliant BNC/RCA Composite Video + S-Video to VGA Converter
  • CE Compliant BNC/RCA Composite Video + S-Video to VGA Converter
Scroll Down to Get Quote

Overview

The BNC/RCA Composite Video + S-Video to VGA Converter changes Composite video and S-Video signals from surveillance DVRs, security cameras, quad video processors, etc. into a VGA output for computer monitor displays.

  • Supports resolutions to 1920x1200 (WUXGA).
  • Auto-detects NTSC/PAL inputs.
  • Compatible with VGA/SVGA monitors, including LCD flat panel monitors.
  • Use the front panel buttons to switch between video sources and resolutions, control the Picture in Picture (PIP) function, reset the device, and adjust video settings.
    • Adjust video brightness, contrast, saturation, and hue.
      • Auto-saves settings and working status when powered down.
  • Includes a male BNC to female RCA adapter for connecting RCA composite video devices.

Specifications

Video Input
  • One female BNC connector.
  • One female S-Video connector.
  • One female VGA connector.
  • Includes a male BNC to female RCA adapter for connecting RCA composite video devices.
  • Supports NTSC/PAL.
Video Output
  • One female VGA connector.
  • Output resolutions:
    • 4:3 screen: 800x600@60/75Hz, 1024x768@60/75Hz, 1280x1024@60/75Hz, 1600x1200@60Hz.
    • 16:9/16:10 screen: 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz.
Power
  • 110 to 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 1.3W
Dimensions
  • WxDxH (in): 3.94x2.6x1.08 (100x66x26 mm).
Regulatory Approval
  • CE, RoHS
Warranty
  • Two years.
Cables
  • Male BNC to female RCA adapter included.

Downloads

Data Sheet:
User Manual:

(0)BNC + S-Video to VGA Converter

NTI Part # Description Qty
BNCSV-VGA-CNVTR BNC/RCA Composite Video + S-Video to VGA Converter
