4-Port USB 3.0 Extender via Two LC Fiber Optic Cables up to 820 Feet – No Drivers Required

4-Port USB 3.0 Extender via Two LC Fiber Optic Cables up to 820 Feet – No Drivers Required

NTI Part #: USB3-2FOLC-4-Group

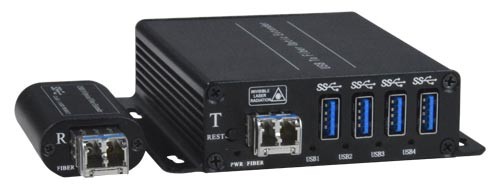

USB3-2FOLC-4 (Local and Remote Unit)

Additional Images/Videos

NTI Part #: USB3-2FOLC-4-Group

The XTENDEX® 4-Port USB 3.0 Extender via Fiber Optic Cable extends four USB devices up to 820 feet (250 meters) using a duplex LC singlemode or multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB 3.0/2.0/1.1 devices. The local and remote units are interconnected via a two-strand LC singlemode or multimode fiber optic cable.

Supports USB 3.0/2.0/1.1 devices

ROHS Compliant 4-Port USB 3.0 Extender via Two LC Fiber Optic Cables up to 820 Feet – No Drivers Required

Scroll Down to Get Quote

Overview

Supports fully transparent USB connections - compatible with USB PC computers (Windows 7/8/8.1/10) and their associated peripherals.
Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.).
Signal transmission up to 820 feet (250 meters) via a two-strand LC 9-micron singlemode or 50-micron multimode fiber optic cable.
Supports super-speed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Compliant with USB 3.0 specifications.
- Backwards compatible with USB 2.0/1.1.
Each port supports full 900mA current.
Supports Plug-n-Play specification.
Low RFI/EMI for sensitive applications.
No drivers required.
Compact design for the transmitter - allows for direct connection to the source.
Integrated mounting brackets on the receiver for easy surface/wall mounting.
Cables can be installed in conduit prior to extender installation.

Specifications

Local Unit

One male USB Type A connector.
Two female LC fiber optic ports.
Compatible with USB PC computers (Windows 7/8/8.1/10)

Remote Unit

Four female USB Type A connectors.
Two female LC fiber optic ports.
Supports super-speed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
Supports self-powered and/or bus-powered USB devices.
Compatible with USB touch screen monitors.

Power

Local unit: powered from attached computer.
Remote unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
- Output: 12VDC, 3A
- Each port supports full 900mA current

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -40 to 185°F (-40 to 85°C).
Operating/storage relative humidity: 0 to 95% non-condensing RH.

Dimensions

Local Unit WxDxH: 1.29x3.38x0.71 in (33x86x18 mm).
Remote Unit WxDxH: 4.09x4.09x1.10 in (104x104x28 mm).

Max Distance

820 feet (250 meters) over a duplex LC 9-micron singlemode or 50-micron multimode (OM2/OM3) fiber optic cable.

Cables

Use a duplex LC 9µm singlemode or 50µm multimode (OM2/OM3) fiber optic cable to extend the receiver from the transmitter up to 820 feet (250 meters). (Cables not included.)

Regulatory Approvals

RoHS

Warranty

Two years

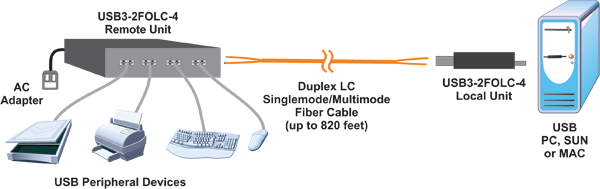

Application Drawings

4-Port USB 3.0 Extender via Two LC Fiber Optic Cables up to 820 Feet

Downloads

Data Sheet:

4-Port USB 3.0 Extender via Two LC Fiber Optic Cables up to 820 Feet 314 KB
