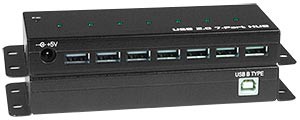

Industrial USB 2.0 Bus-Powered Hub, 7 Port

USB2-HUB-IND-7

USB2-HUB-IND-7

Industrial USB 2.0 Bus-Powered Hub, 7 Port

NTI Part #: USB2-HUB-IND-7

Qty:

Connect up to seven USB 2.0 high-speed peripheral devices to a PC or MAC in harsh environments.

Also known as: 7-port USB HUB, USB splitter, self-powered USB hub, bus-powered USB port expander.

Overview

The Industrial USB 2.0 7 Port Bus-Powered Hub connects up to seven USB 2.0 high-speed peripheral devices to a PC or MAC in a harsh environment.

Connect up to seven USB 2.0 high-speed peripheral devices to a PC or MAC.
Ideal for industrial applications in harsh environments at high temperatures up to 158°F (70°C).
Compliant with USB 2.0 and USB 1.1 specifications.
Hubs can be cascaded to connect up to 127 devices.
Supports Plug-n-Play specification.
Hot-swappable.
Powder coated metal enclosure.
Attached mounting brackets.

Specifications

Connectors

Seven female USB Type A connectors.
- Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
One female USB Type B connector.
- Supports USB-enabled computers (PC and MAC).

Power

Input: 100 to 240 VAC at 50 or 60Hz via AC adapter (included).
Output: 5VDC, 8A
Each port supports full 500mA current
- Overcurrent protection for each downstream port.

Dimensions

WxDxH (in): 6.50x2.09 x0.88 (165x53x22 mm).

Environmental

Operating temperature: 32°F to 158°F (0°C to 70°C).
Storage temperature: -22°F to 185°F (-30°C to 85°C).
Operating/storage relative humidity: 10 to 90% non-condensing RH.

MTBF

354,359 hours

Regulatory Approvals

CE, FCC, RoHS
TAA compliant

Package Includes

7-Port USB Hub
Power adapter
1 ft (305 mm) USB 2.0 male Type A to male Type B male cable.
