Signal Booster, Male A to Female A, 5 Gbps, 10/15 Meters, Daisy-Chainable

SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters

NTI Part #: USB3-AA-xxM-Group
SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters
SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters
NTI Part #: USB3-AA-xxM-Group

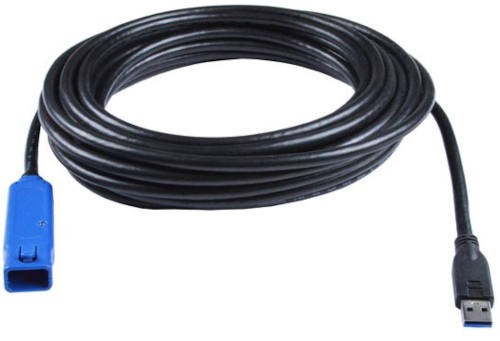

The SuperSpeed USB 3.0 Male-to-Female Type A Active Extension Cable extends a USB device up to 15 meters away from a computer.
  • ROHS Compliant SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters
  • CE Compliant SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters
  • FCC Compliant SuperSpeed USB 3.0 Active Extension Cable, Male-to-Female Type A, 10/15 Meters
Scroll Down to Get Quote

Overview

The SuperSpeed USB 3.0 Male-to-Female Type A Active Extension Cable extends a USB device up to 15 meters away from a computer.

  • Actively buffers the incoming and outgoing signals for maximum reliability and performance over extended distances.
  • Compliant with USB 3.0 SuperSpeed specifications.
    • Backwards compatible with USB 2.0/1.1
    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Compatible with USB-enabled PC and MAC computers.
  • Supports Plug-n-Play specification.
  • Bus-powered — no power supply is necessary.
  • Use with a USB hub to extend multiple USB devices.
  • Locking mechanism on the female end for secure connection.
    • Helps prevent the removal of USB devices by mistake.
  • Available lengths: 10/15 meters.
    • Daisy-chain multiple active cables together to extend the distance.
      • Connect up to four USB3-AA-10M cables to extend one USB device up to 40 meters.
      • Connect up to two USB3-AA-15M cables to extend one USB device up to 30 meters.

Specifications

  • Male USB 3.0 Type A for host connection.
    • Compatible with USB-enabled PC and MAC computers.
    • Multiplatform support: Windows 7/10, Linux, and MAC OS.
  • Female USB 3.0 Type A for USB device connection.
    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
    • Locking mechanism for secure connection.
  • Jacket: PVC
  • Outer diameter: 7.0mm ± 0.15mm
  • Available lengths: 10 meters (32.8 feet) and 15 meters (49.2 feet).
    • Daisy-chain multiple active cables together to extend the distance.
      • Connect up to four USB3-AA-10M cables to extend one USB device up to 40 meters.
      • Connect up to two USB3-AA-15M cables to extend one USB device up to 30 meters.
  • Color: black
Power
  • Bus-powered — no power supply is necessary.
    • Maximum current supply for a USB device without a power supply: 500mA
    • If additional power is needed, use included power supply.
      • Input: 110 to 220 VAC at 50 or 60 Hz via AC adapter.
      • Output: 5VDC, 2A
Environmental
  • Operating temperature: 32°F to 122°F (0°C to 50°C).
Regulatory Approvals
  • CE, FCC, RoHS
