VGA to DVI-D Converter connect convert analog video signal to digital monitor

VGA to DVI Converter

NTI Part #: VGA-DVI-Group

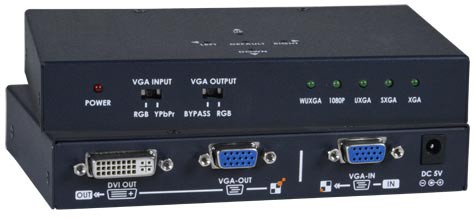

VGA-DVI (Front & Back)
VGA-DVI (Front & Back)
NTI Part #: VGA-DVI-Group
The VGA to DVI Converter changes your computer's analog VGA signal to single link digital DVI video instantly. The converter generates the compatible analog to digital conversion signals to make the connection between the VGA input and the DVI-D output work.
Also known as: VGA DVI converter, vga to dvi-d, digital to analog, VGA to DVI, convert analog video signal to digital monitor
  • ROHS Compliant VGA to DVI Converter
  • CE Compliant VGA to DVI Converter
  • FCC Compliant VGA to DVI Converter
Scroll Down to Get Quote

Overview

The VGA to DVI Converter changes your computer's analog VGA signal to single link digital DVI video instantly. The converter generates the compatible analog to digital conversion signals to make the connection between the VGA input and the DVI-D output work.

  • Connects computers with analog VGA connectors to single link DVI-D monitors or projectors.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Front panel switches:
    • VGA input: RGB or YPbPr.
    • VGA output: Bypass or RGB.
  • Supports VGA/SVGA and DVI-D monitors, including LCD flat panel monitors.
  • Adjustable EDID via preset buttons.
    • Supported resolutions: 1920x1200, 1080p, 1600x1200, 1280x1024.

Specifications

Connectors
  • One female 15-pin HD input connector.
  • One female 15-pin HD output connector.
  • One female DVI-I single link output connector.
Video
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Cables
  • Includes 3-foot (0.91-meter) VGA male to male cable.
Dimensions
  • WxDxH (in): 6.4x4.1x1.1 (163x104x28 mm).
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 3.5W.
Enviromental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -4 to 158°F (-20 to 70°C)
  • Operating and Storage Relative Humidity: 30 to 80% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS.

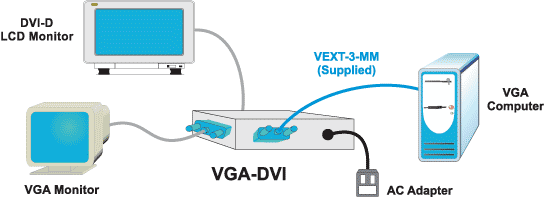

Application Drawings

  • VGA to DVI Converter
    VGA to DVI Converter

Downloads

Data Sheet:
User Manual:

(0)VGA to DVI Converter

NTI Part # Description Qty
VGA-DVI Converts analog VGA signal to single link digital DVI-D video
