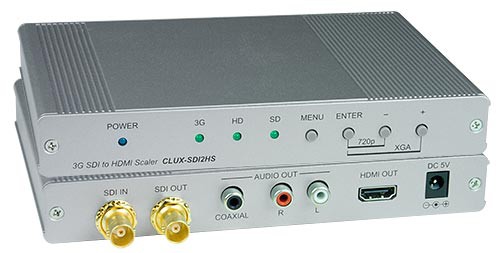

3G-SDI to HDMI with Audio Converter Scaler

Input/Output

• Input connector: one female BNC for SD/HD/3G-SDI
• Output connectors:
  • One female BNC for SD/HD/3G-SDI
  • One female HDMI
  • One female coaxial RCA for digital audio
  • Two female RCA (R&L) for analog audio.
• SMPTE standard: 425 M (1,394 feet), 424 M (1,391 feet), 292 M (958 feet), 259 M (850 feet)
• Video bandwidth: 2.970Gbps, 2.970/1.001Gbps
• Supports HDTV resolutions up to 1080p.
• Maximum SDI cable distance:
  • 3G-SDI: up to 328 ft (100 m)
  • HD-SDI: up to 656 ft (200 m)
  • SD-SDI: up to 984 ft (300 m)

Power

• 110 or 220 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK, or AUS AC adapter included.)

Dimensions

• WxDxH: 7.09x5.59x0.98 in (180x142x25 mm)

Environmental

• Operating temperature: 32 to 104°F (0 to 40°C).
• Storage temperature: -4 to 140°F (-20 to 60°C).
• Operating/storage relative humidity: 20 to 90% non-condensing RH.

Regulatory Approval

• CE, RoHS

Warranty

• Two years
