DVI/HDMI USB KVM Splitter

NTI Part #: VOPEX-USBH-2-Group

The VOPEX® DVI/HDMI USB KVM splitter with built-in USB hub and optional audio allows up to four users (four USB keyboards, USB mice and DVI/HDMI monitors) to access one USB computer and up to three USB devices (printers, scanners, security cameras, etc.).

Also known as: HDMI DVI USB splitter with built-in USB hub, keyboard monitor mouse splitter, reverse KVM switch, four users control one USB PC SUN MAC computer.

Product Highlights

Allow Up to Four Users to Control One DVI/HDMI USB Computer and Connect Three USB Devices
Compatible with USB computers (PC, SUN, MAC)

Designed and Manufactured in the U.S.A.
ROHS Compliant DVI/HDMI USB KVM Splitter
CE Compliant DVI/HDMI USB KVM Splitter

Scroll Down to Get Quote

Overview

The VOPEX^® DVI/HDMI USB KVM splitter with built-in USB hub allows up to four users (four USB keyboards, USB mice and DVI/HDMI monitors) to access one USB computer and up to three USB devices (printers, scanners, security cameras, etc.).

Compatible with USB computers (PC, SUN, MAC)
Built-in hub for multiple USB devices.
Available with optional stero audio.
Access one computer from multiple locations.
Multiple users can enter data into the same program.
Supports HDTV resolutions to 1080i, and up to 1920x1200 (WUXGA).
Compliant with USB 2.0 (low/full speed) standards.
Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards.
Supports Plug-n-Play specifications.
High quality, rugged steel construction with durable, powder-coat finish.

Specifications

Hosts

Female HDMI-A connector.
Female USB Type B connector.
Supports a USB computer (PC, SUN, MAC) with DVI/HDMI video.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Solaris, Linux, FreeBSD, and MAC OS 9/10.

Monitor

Female HDMI-A connectors.
Supports HDTV resolutions to 1080i, and up to 1920x1200 (WUXGA).
Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 standards.

Devices

Female USB Type A connectors for connection of keyboard and mouse.
- Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse^®, Logitech Cordless Elite Duo keyboard and mouse, Gyration keyboard/mouse and Crystal Vision keyboard with touchpad.
- Keyboard and mouse are hot-pluggable.
- Supports international keyboard layouts in auto-detection mode.
Three female USB Type A connectors for connection of USB peripheral devices (printers, scanners, security cameras, etc.)
- Does not support USB touchscreen monitors.
Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.

Regulatory Approvals

CE, RoHS
TAA compliant

Optional Audio

3.5mm stereo audio jacks.
Frequency response: 20 Hz to 20 kHz +/- 1dB.
Total harmonic distortion (THD): 0.012%.
Stereo crosstalk: -82 dB.
Input impedance: 10k Ohms.
CD quality audio output.
Requires powered speakers.

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)

MTBF

VOPEX-USBH-2: 200,241 hours

Dimensions

WxDxH (in): 8.5x6.0x2.6

Environmental

Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Cables

Use the included three-foot DVI-D male to HDMI-A male single link cable to connect a DVI-D source or display.
Use HD-xx-MM cable to connect an HDMI source or display (not included).
One-meter male USB Type A to male USB Type B cable included.

Warranty

Two years.

Control Methods

Press Mode button to cycle through all four modes. LEDs indicate which mode is selected.
User 1 Mode - Only User 1 can type or move the mouse.
User 2 Mode - Only User 2 can type or move the mouse.
User 3 Mode - Only User 3 can type or move the mouse.
User 4 Mode - Only User 4 can type or move the mouse.
Inst Mode - Keyboard or mouse activates immediately.
Delay Mode - Locked out user must wait five seconds after last keystroke or mouse movement occurs on active user.

Application Drawings

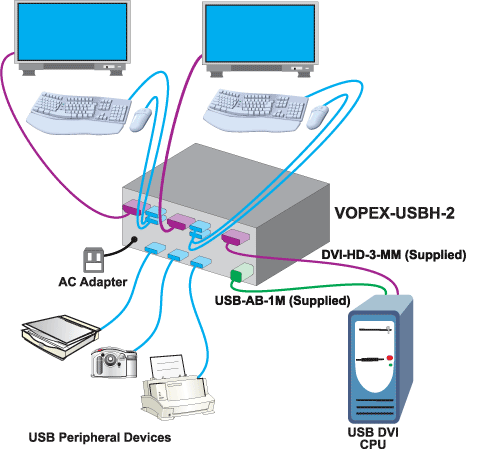

How to allow two users to access one USB enabled computer and up to three USB devices

Downloads

Data Sheet:

HDMI/DVI USB KVM Splitter 310 KB

User Manual:

VOPEX-USBH(A)-2/4 - Installation and Operation Manual 788 KB

"The VOPEX-USBH-2 KVM Splitters are working great. We have not had any problems at all. We are purchasing an additional one as a spare."

Tom Burger

Fairfax County Circuit Court

Fairfax, VA

(0)HDMI DVI USB KVM Splitters

NTI Part #	Number of Ports	Supported Features	Qty
VOPEX-USBH-2	2	KVM, HDMI, DVI
VOPEX-USBH-4	4	KVM, HDMI, DVI
