DVI Video Splitter

NTI Part #: VOPEX-DVIS-4-Group

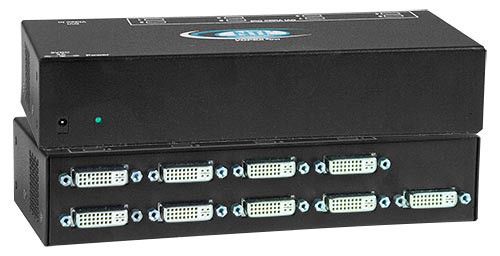

VOPEX-DVIS-8 (Front & Back)
VOPEX-DVIS-8 (Front & Back)

Additional Images/Videos

NTI Part #: VOPEX-DVIS-4-Group
The VOPEX® DVI Video Splitter enables up to 16 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.
Also known as: DVI splitter, video splitter, DVI video splitters, video distribution amplifier, PC video splitter, monitor splitter, multiple monitor, video port expander, dual DVI splitter, quad DVI Splitter.
  • ROHS Compliant DVI Video Splitter
Scroll Down to Get Quote

Overview

The VOPEX® DVI Video Splitter enables up to 16 single link digital DVI displays to be driven by a single digital DVI source with no loss of signal.

  • Supports DVI interface for crisp and clear video quality on flat panel displays.
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • Passes HDMI audio and video signal through DVI-I port.
    • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
  • Available with optional stereo audio for 4 and 8 port units.
  • Compliant with DVI 1.0 and HDCP standards.
  • Supports the DDC2B protocol.
  • EDID learning for the support of any DVI display device.
  • Cascade multiple units for more numerous display configurations.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.

Specifications

Video Input
  • Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI output.
  • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
  • Female DVI-I connector.
  • Signal type: single link digital DVI
  • HDCP compliant
Video output
  • Female DVI-I connectors.
  • Signal type: single link digital DVI.
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA) at 60Hz.
  • HDCP compliant
Optional Audio
  • 3.5 mm stereo audio jacks.
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Total Harmonic Distortion (THD): 0.012%.
  • Stereo Crosstalk: -82 dB.
  • Input impedance: 10k Ohms.
  • CD quality audio output.
  • Requires powered speakers.
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Dimensions
NTI Part # WxDxH (in)
VOPEX-DVIS-4 5.14x3.47x1.68
VOPEX-DVISA-4 5.14x3.47x2.44
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Cables
  • One 3-foot single link DVI-I male-to-male cable included.
  • Use DVI-HD-xx-MM to connect an HDMI source or display (not included).
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two Years
Compatible NTI Products
  • Combine NTI's extenders, switches, splitters and cables for complex applications

Application Drawings

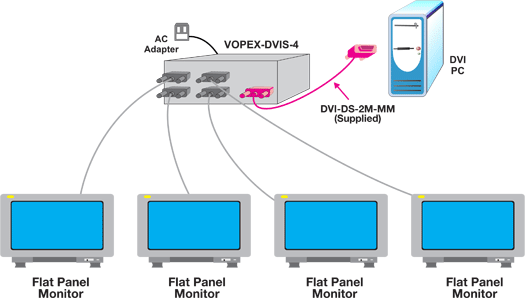

  • DVI Video Splitter
    DVI Video Splitter
    How to drive multiple displays with a single digital DVI source

Application Notes

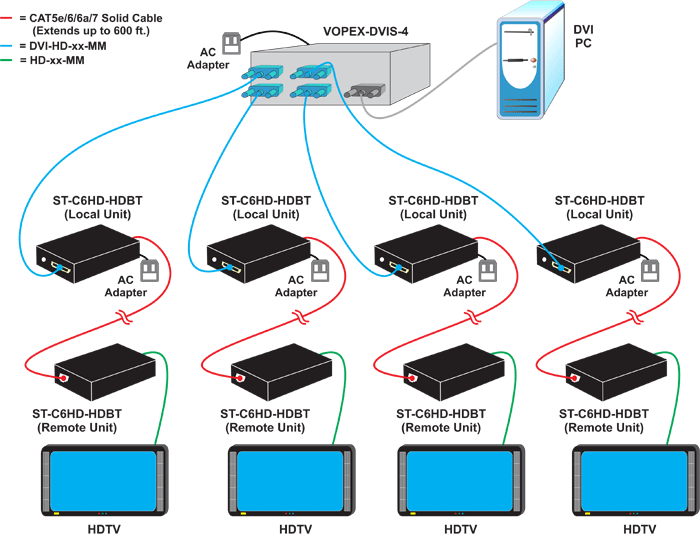

  • How to Split a DVI Video Source and Extend Remote HDMI Video Up to 600 Feet Away
    Loading image...
    The VOPEX-DVIS-x can be used with the HDMI HDBase-T Extender (ST-C6HD-HDBT) to extend each splitter's video output up to 600 feet away over CAT5e/6/6a/7 cable. A DVI-HD-xx-MM cable converts the DVI video output into HDMI signals for connection to the extender's local unit. An HDTV can be connected at the remote end using an HD-xx-MM cable for HDMI displays, or a DVI-HD-xx-MM cable for DVI displays. Note that this configuration does not support audio extension.

    If an HDMI source is connected to the DVI Splitter using DVI-HD-xx-MM, audio will pass through from the source to the extender and HDMI display. This configuration does not support HDCP.

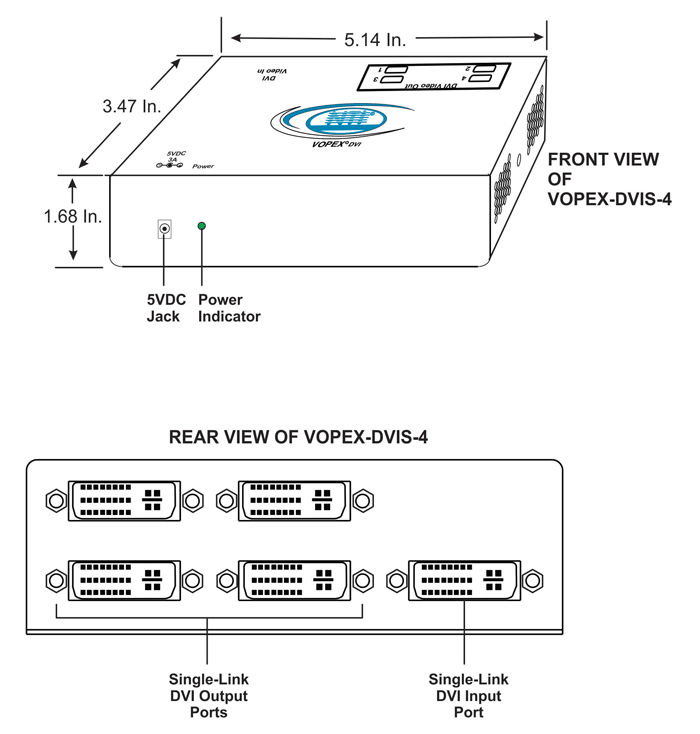

CAD Drawings

  • VOPEX-DVIS-4
    Loading image...

Downloads

Data Sheet:
User Manual:

(0)DVI Video Splitter

NTI Part # Description Qty
VOPEX-DVIS-4 4-port DVI video splitter

Collapse all Expand all Related Items :

(0)DVI Video Splitter with Audio

NTI Part # Description Qty
VOPEX-DVISA-4

(0)DVI-I Cables, Male to Male

NTI Part # Length Qty
DVI-IS-6-MM 6 feet
DVI-IS-10-MM 10 feet
DVI-IS-15-MM 15 feet

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Qty
DVI-HD-1M-MM 1 meter
DVI-HD-2M-MM 2 meters
DVI-HD-3M-MM 3 meters
DVI-HD-5M-MM 5 meters
