DVI/VGA Quad Screen Multiviewer with Built-In KVM Switch

DVI/VGA Quad Screen Multiviewer with Built-In KVM Switch

NTI Part #: SPLITMUX-DVI-4RT-Group

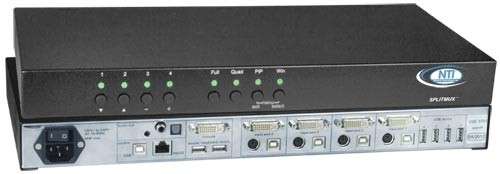

SPLITMUX-DVI-4RT (Front & Back)

Additional Images/Videos

NTI Part #: SPLITMUX-DVI-4RT-Group

The SPLITMUX® DVI/VGA Quad Screen Multiviewer simultaneously displays video from four different computers on a single monitor. Additionally, it can switch one of the four attached computers to a shared keyboard and mouse for operation and to four additional USB devices.

Also known as: Quad screen splitter, USB DVI KVM switch built-in quad splitter, video quad display, quad monitor

Product Highlights

VGA & DVI
USB & PS2
Touch Screen Support
Built-In 4-port USB Hub

ROHS Compliant DVI/VGA Quad Screen Multiviewer with Built-In KVM Switch
CE Compliant DVI/VGA Quad Screen Multiviewer with Built-In KVM Switch
FCC Compliant DVI/VGA Quad Screen Multiviewer with Built-In KVM Switch

Scroll Down to Get Quote

Overview

Quad, Picture in Picture, Full Screen, Dual, Fade Through Black, and Win display modes.
Independent video in to video out resolution.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Supports digital/analog DVI and analog VGA.
Connect analog and digital sources to the splitter, and display images on a digital or analog monitor.
HDCP compliant
Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
Rotate the screen display at different angles – 0°, 90°, 180° & 270°.
Control multiple PCs displayed on a split screen with a single keyboard/mouse – no switching required.
Switch audio independently of video from HDMI sources connected to the DVI-I port.
- Transmit audio and video over a single cable with the DVI-HDMI-xx-MM male DVI-D to male HDMI cable.
Touch Screen support – operate connected computers via USB touch screen monitor.
Control the multiviewer through the front panel interface, keyboard/mouse commands, on screen display (OSD), or RS232.
Cascade SPLITMUX Quad Screen Splitters to display video from up to 16 video sources on one screen.
LED indicators on switch show which port is active.
Built-in 4-port USB hub – switch devices between connected computers.
Compliant with USB 2.0 (high-speed and low/full speed) standards.
Connect BNC/RCA composite video devices, such as a security camera, using NTI's BNCSV-VGA-CNVTR BNC to VGA converter.
Supports KVM over IP extenders to control the Quad Screen Splitter remotely in quad mode or PiP mode.

Specifications

Hosts

Four female DVI-I connectors.
Four female USB Type B connectors.
Four female 6-pin miniDIN connectors.
Supports USB and PS/2 computers.
- Boots PCs SUNs and MACs simultaneously.
Multiplatform support: Windows 2000/XP/Vista/7, Windows Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Supports digital DVI devices, such as DVD players, satellite receivers and HDTV tuners.
Any VGA computer can be connected by using a DVI-I to VGA cable (included).

Monitor

Video resolutions:
- VGA video: Supports resolutions to 1920x1200 (WUXGA).
- DVI video: Supports resolutions to 1920x1200 (WUXGA), and HDTV resolutions to 1080p.
One female DVI-I connector.
A VGA monitor can be connected by using a DVI-I to VGA adapter (included).
Support for touch screens with the following controllers: Elo AccuTouch 2116, Elo IntelliTouch/SecureTouch 2701, TSharc Octopus, 3M Microtouch EX II, and others.
- For other controllers, please contact NTI technical support to determine compatibility.

Devices

Two female USB Type A connectors for keyboard and mouse.
- Compatible with most USB keyboards and mice.
- Keyboard and mouse are hot-pluggable.
- Supports keyboard layouts in multiple languages: English, German, French, Italian, Spanish, and Japanese.
- Connect legacy PS/2 devices by using a USB to PS/2 converter (included).
- USB SUN start-up keys are supported.
- Supports MAC soft (keyboard) power-on.
Four female USB Type A connectors for USB peripheral devices (printers, scanners, security cameras, flash drives, etc.).
- Connect any type of USB device – fully transparent USB connectors.
- Switch USB 2.0 devices between connected computers.
Provides support for high-speed (480 Mbps), full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.

Audio

Connect external speakers or headphones
- Switch audio independently of video from HDMI sources connected to the DVI-I port.
One 3.5mm analog stereo jack
One RCA jack
One TOSLINK optical audio jack

Power

110 or 220 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
Power consumption: 40W

Dimensions

WxDxH (in): 17.17x9.20x1.75
Rackmount kit included

MTBF

320,000 hrs.

Environmental

Operating temperature: 41°F to 113°F (5°C to 45°C)
Storage temperature: 14°F to 140°F (-10°C to 60°C)
Operating and Storage Relative Humidity: 5 to 85% non-condensing RH.

Regulatory Approval

CE, FCC, RoHS

Warranty

Two Years.

Cables

Four 6.5-foot USB male Type A to male Type B cables included.
Two 6.5-foot DVI-I male to male cables included.
Two 6.5-foot DVI-I to VGA male to male cables included.
USB to PS/2 adapter included.
DVI-I male to VGA female adapter included.
Serial update cable and adapter included.
Use DVI-HD-xx-MM DVI-D to HDMI interface cable to connect the video source or display with integrated speakers (not included).

BNC/RCA Composite Video + S-Video to VGA Converter

BNCSV-VGA-CNVTR

Use to connect BNC/RCA composite video devices, such as security cameras, to the SPLITMUX-DVI-4RT
Output Resolutions:
- 4:3 screen: 800x600@60/75Hz, 1024x768@60Hz, 1280x1024@60Hz, 1600x1200@60Hz
- 16:9/16:10 screen: 1280x720@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz.
Video Inputs: one female BNC, one female S-Video, and one female VGA
- Includes a male BNC to female RCA adapter for connecting RCA composite video devices.
Video Output: one female VGA
Supports NTSC/PAL
Includes 5V, 1A power supply.

Control Methods

Display Modes

Quad Mode

In quad mode, the screen is split into four fields of equal size each displaying the entire contents of four different video sources.
- Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.

Full Screen Mode

In full screen mode, one of the four video sources is displayed in full screen size and maximum resolution.

Picture in Picture (PIP) Mode

In PIP mode, the full screen display of one of the four video sources is accompanied by one or three small images (thumbnails) of the three other video sources on the right hand margin of the screen allowing simultaneous monitoring.
Size, position and selection of the thumbnails are customizable.
Scan feature: cycle through two different sources at set intervals for the larger image.

Dual Mode

In dual mode, the left halves of the full screen images from two video sources are displayed side by side at full size.

Fade Through Black

When switching channels or display modes, the previous image fades out to black, and the next image fades in from black.
Customizable with five speed settings, and can be enabled or disabled by the user.

Win Mode

In Win mode, each video source is displayed in its own separate, detached window.
Size, position and selection of the windows are customizable.
Presets of the window positioning can be saved.

Control Methods

Front Panel Interface

Use front panel buttons to locally change ports or to select a display mode.
LEDs indicate currently selected port and display mode.

Keyboard/Mouse

Use hotkey commands or hotmouse commands to select display mode and to select ports.
Control multiple PCs displayed on a split screen with a single keyboard/mouse – no switching required.
- Simply move the mouse across the split screen to the desired PC screen and activate it with a simple left mouse click.

On Screen Display (OSD)

Select display modes and computers with On Screen Display (OSD).
Use the front panel buttons or your keyboard to operate the OSD.
OSD controls for hotkeys, OSD position, quad mode, PIP mode, brightness, contrast, phase, Horz- and Vert-center alignment adjustment.

RS232

Control the unit with XML-based protocol via the RS232 port.
Three DCP modes – off, control, synchronize.
Baud rate: 57600.

Application Drawings

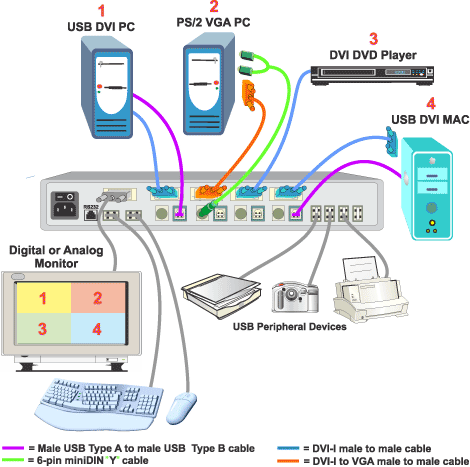

DVI/VGA Quad Screen Multiviewer

How to view up to four video signals on one display

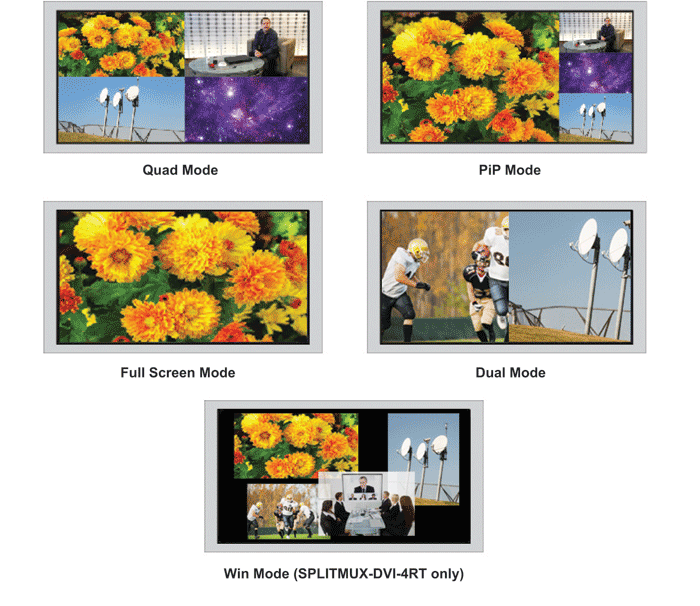

Display Mode Examples:

Application Notes

Display video from four computers simultaneously on multiple screens and switch the audio to different speakers

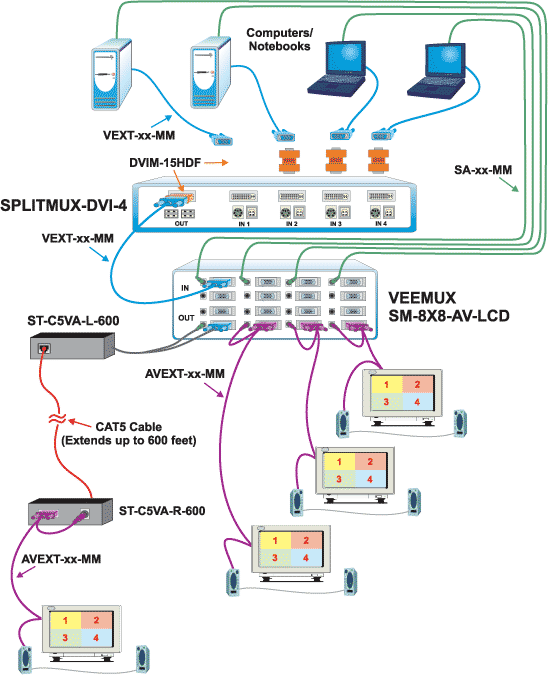

Interconnect the SPLITMUX® Quad Screen Splitter with the VEEMUX® Audio/Video Matrix Switch to simultaneously display video signals from four different computers on multiple screens while switching the audio from each computer to different speakers.

Monitors and speakers can be extended up to 600 feet (183 meters) away by interconnecting the XTENDEX® VGA + Audio Extender and the VEEMUX® switch.

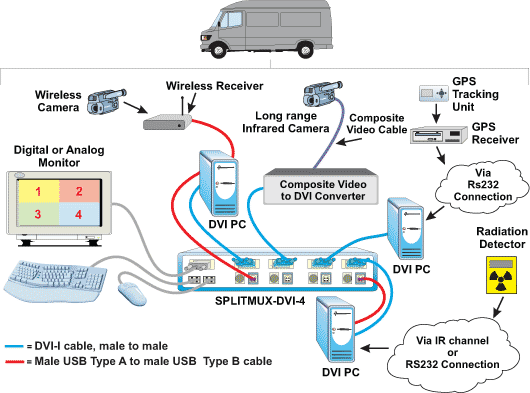

Save Space on Mobile Video Surveillance Missions

Eliminate the need to carry multiple monitors/LCDs on a surveillance mission in a vehicle. The SPLITMUX Quad Screen Splitter splits a screen into various display areas, showing the input from four different video sources at once.

Ideal for counter-terrorism, border patrol, law enforcement, military, or medical and industrial applications.

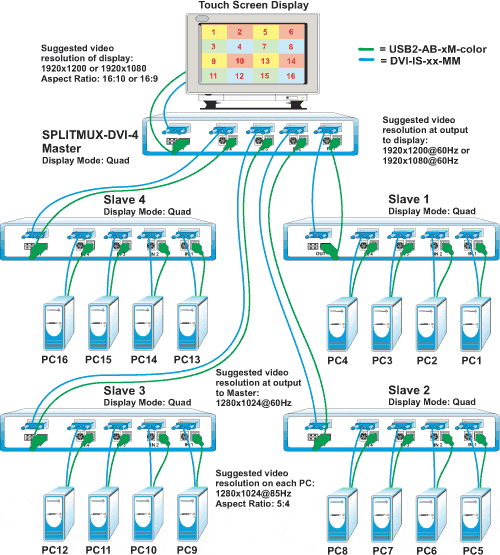

Cascade mulitple Quad Screen Splitters to connect up to 16 video sources to one display.

Display video from up to 16 video sources simultaneously on one touch screen monitor by cascading SPLITMUX® Quad Screen Splitters. With all of the Quad Screen Splitters in Quad Mode, a master splitter connects to four slave splitters, with each slave splitter connecting to four DVI video sources.

If less than four Quad Screen Splitters are cascaded, the unused channels on the master splitter will need to be disabled. Example: If two Quad Screen Splitters are cascaded from the master splitter, and connected to inputs one and two, then inputs three and four would need to be disabled.

Note: Higher refresh rates output smoother video, but the best frame rate that can be displayed for each quadrant on the display is about 15 frames/sec.

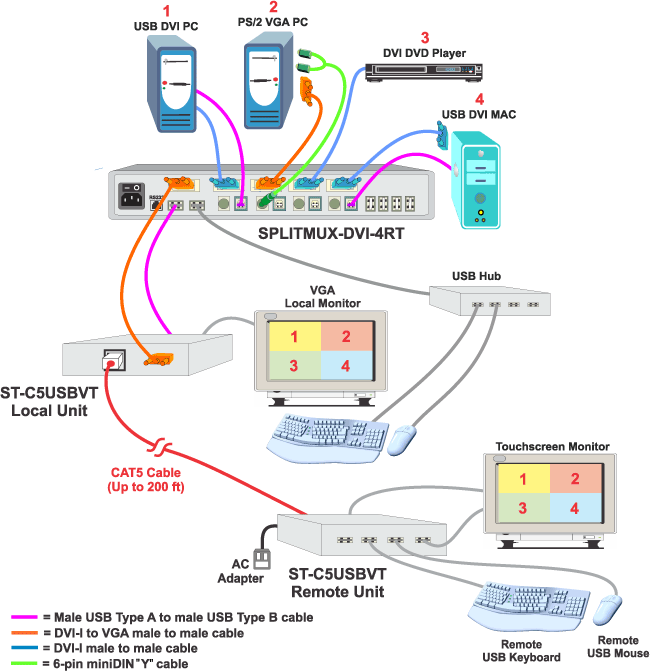

Extend Touchscreen Monitor, Keyboard, & Mouse Up to 200ft Away From Quad Screen Splitter

The ST-C5USBVT Transparent USB Extender with VGA Video can be connected to the SPLITMUX-DVI-4(RT) to locate a remote touchscreen monitor, keyboard, and mouse up to 200 feet away from the quad screen splitter. Use USB male Type A to male Type B and DVI-I male to VGA male cables to connect the local extender unit to the SPLITMUX.

A local monitor can also be connected to the ST-C5USBVT transmitter. To control the local monitor, connect a USB hub to the second SPLITMUX-DVI-4(RT) console USB port to set up a keyboard and mouse.

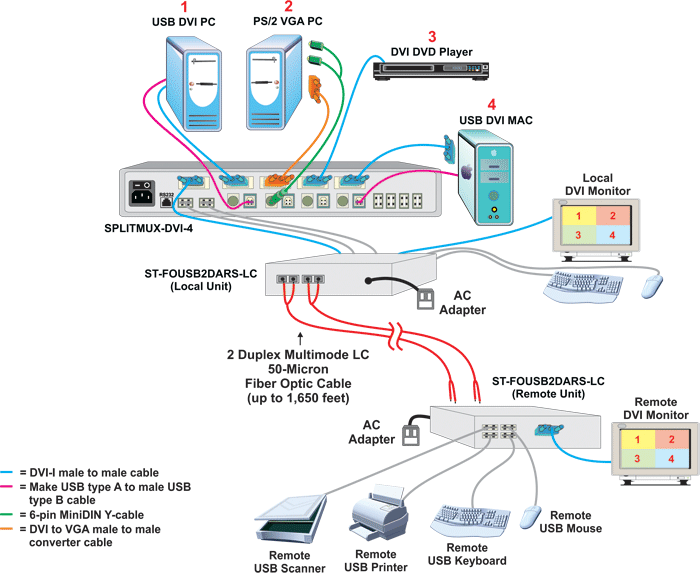

Extend the Quad Screen Splitter Output Up to 1,650 feet (503 meters) Away via Fiber

The ST-FOUSB2DARS-LC DVI USB Fiber Optic Extender can be connected to the SPLITMUX-DVI-4(RT) to locate a remote monitor, keyboard, and mouse up to 1,650 feet (503 meters) away via two duplex multimode LC 50-micron cable. Use the DVI-VGA video converter to connect a VGA monitor to the DVI USB extender.

A local monitor can also be connected to the ST-FOUSB2DARS-LC transmitter. To control the local monitor, connect the keyboard and mouse to the USB Type A ports on the transmitter and enable the "local mode" of USB operation options.

To control the remote monitor, connect the keyboard and mouse to the USB Type A ports on the receiver and enable "remote mode" of USB operation options. Note that control for "local mode" and "remote mode" cannot be activated at the same time, but both local and remote monitors will simultaneously display video. Additional USB devices, such as a USB scanner, USB printer, etc. can also be connected to the receiver and accessed in either operation mode.

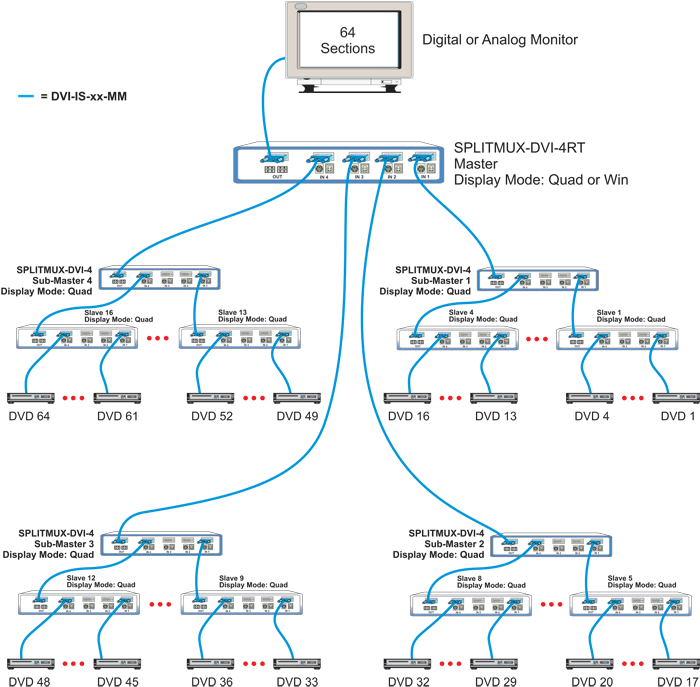

Display Video from 64 Sources on a Single Monitor by Cascading 21 Quad Screen Splitters

Display video from up to 64 video sources simultaneously on one monitor by cascading the Quad Screen Splitters. With all the Quad Screen Splitters in Quad Mode, connect one master splitter to four sub-master splitters, which are connected to four slave splitters each. Each slave splitter is connected to four DVI video sources. If a VGA source or display is used, a DVI-VGA video converter can be used to connect the source to the splitter or the splitter to the display. It is recommended to use the SPLITMUX-DVI-4RT as the master splitter as Win mode will enable a more flexible arrangement of the 64 sources compared to Quad mode. The unused channels on the master splitter will have to be disabled if less units are in the cascade. Example: if the sub-master splitters are connected to inputs one and two, then inputs three and four would need to be disabled. Note: when cascading with 64 sources, the SPLITMUX will only support video. The max recommended cascade with KVM is 16 sources using 6 SPLITMUX units.

Downloads

Data Sheet:

DVI/VGA Quad Screen Multiviewer Data Sheet 503 KB

User Manual:

Firmware:

Download new firmware and MIB files

Knowledge Base:

DVI/VGA Quad Screen Multiviewer

"The SPLITMUX-DVI-4 is a nice product. We used it for our audio multitrack workstations on Stand Up To Cancer, a television show, and it worked very well. We used it again last weekend on a taping of a Kathy Griffin special where it also worked well. I showed it to a number of folks on those shows who were quite impressed.

I've spent time trying to get it to fail (because in live television if it can fail, it will) - powering things in the wrong order, connecting and reconnecting things, changing resolutions, and it always seems to deal with it. Its ability to auto-scale anything seems to work very well. The hotkeys and the "hotmouse" functionality, both of which I thought were gimmicks, ended up being the primary user interface. Note - the ability to set our own hotkey combination is important - we ended up using ctrl-alt-windows because that's available. The default of ctrl-alt is used in too many audio workstations.

One nice small feature - our operators all want to use Kensington trackballs, and Kensingtons will not switch smoothly with any KVM, as Kensington will tell you. I've tried almost all of them. The SPLITMUX unit keeps the connection so when we switch to a computer, the Kensington is operational. Whatever you're doing with the Kensington HID, it works.

Thanks for your policy of demoing this unit - that sold us on its abilities. It's been a big hit here."

Hugh Healy

Denali Video

Burbank, CA

(0)DVI/VGA Quad Screen Multiviewer/Splitter

NTI Part #	Description	Qty
SPLITMUX-DVI-4RT	Advanced quad screen splitter w/ KVM switch & real-time video
