Extend Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display, Multi-channel Audio, USB keyboard/mouse and IR up to 230 feet away from the source

4K 18Gbps HDMI USB KVM Extender via CATx Cable to 230 Feet

NTI Part #: ST-C6USB4K18GB-HDBT230-Group

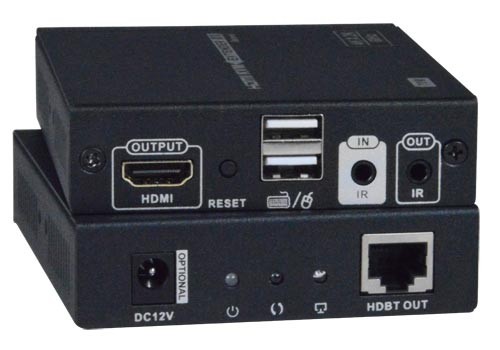

ST-C6USB4K18GB-HDBT230 (Remote and Local Unit)
ST-C6USB4K18GB-HDBT230 (Remote and Local Unit)
NTI Part #: ST-C6USB4K18GB-HDBT230-Group
The XTENDEX® 4K 18Gbps HDMI USB KVM Extender transmits uncompressed digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI signal, USB, and IR up to 230 feet over a single CATx cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse.
  • Extend Ultra-HD 4Kx2K video, USB, and IR to 230 ft via one CATx cable
  • 18Gbps bandwidth
  • Only one power supply required
  • ROHS Compliant 4K 18Gbps HDMI USB KVM Extender via CATx Cable to 230 Feet
  • 4K 18Gbps HDMI USB KVM Extender via CATx Cable to 230 FeetDigital Signage Product
  • CE Compliant 4K 18Gbps HDMI USB KVM Extender via CATx Cable to 230 Feet
  • FCC Compliant 4K 18Gbps HDMI USB KVM Extender via CATx Cable to 230 Feet
Scroll Down to Get Quote

Overview

The XTENDEX® 4K 18Gbps HDMI USB KVM Extender transmits uncompressed digital Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI signal, USB, and IR up to 230 feet over a single CATx cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to a keyboard, monitor and mouse.

  • Transmits an uncompressed high speed HDMI signal over one CAT6/6a/7 cable.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160@60Hz YUV 4:4:4, and HDTV resolutions to 1080p.
  • HDMI features supported:
    • HDMI 2.0
    • 24-bit Deep Color
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • LPCM, Dolby Digital, and DTS Digital
    • Bandwidth up to 600 MHz (18 Gbps).
    • Support for CEC (consumer electronic control) compatible devices.
    • 3D
    • HDR
  • HDCP 2.2 compliant.
  • Bi-directional Infrared Remote (IR) control of HDMI source or display. IR transport channel can be forward or backward per the installation.
  • USB ports for keyboard and mouse.
    • Keyboard and mouse are hot-pluggable.
  • Only one power supply is necessary to power both the local and remote units.

Specifications

Local Unit
  • Compatible with a USB computer or HDTV video source with HDMI output.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female HDMI connector.
  • One female USB Type A connector.
  • Two female 3.5mm ports for connecting an IR emitter and receiver (included).
  • One female RJ45 port for sending/receiving high definition video, audio, IR and USB.
  • Supports HDCP 2.2.
Remote Unit
  • One female HDMI connector for display.
  • Two female USB Type A connectors for keyboard and mouse.
  • Two female 3.5mm ports for connecting an IR emitter and receiver (included).
  • One female RJ45 port for sending/receiving high definition video, audio, IR and USB.
  • Supported video resolutions:
    • Ultra-HD 4Kx2K 60Hz 4:4:4 resolutions (3840x2160 @30/50/60Hz)
    • HDTV resolutions to 1080p
  • Supports HDCP 2.2.
  • Max data rate: 18Gbps
Dimensions
  • WxDxH (in): 3.43x4.31x0.92 (87x109.5x23.4mm)
Power
  • Powered from a single power supply attached to the remote unit.
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
    • Output: 12VDC, 2A
Environmental
  • Operating temperature: 32 to 131°F (0 to 55°C).
  • Storage temperature: -14 to 158°F (-10 to 70°C).
  • Operating and storage relative humidity: 0 to 90% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years
Max Distance
  • 230 feet (70 meters) over CAT6/6a/7 cable.
Cables
  • Interface cables between the video source/display and the transmitter/receiver are required for proper operation.
    • Supports cable lengths to 10 feet for 4Kx2K resolutions and 50 feet for 1080p.
      • Longer cables can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
    • Does not support 4Kx2K resolutions.
  • Use CAT6/6a/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • 1-meter male USB Type A to male USB Type A interface cable included.
Package Includes
  • One transmitter unit
  • One receiver unit
  • Two IR emitters
  • Two IR receivers
  • One power supply
  • One USB Type A to Type A cable
  • User manual

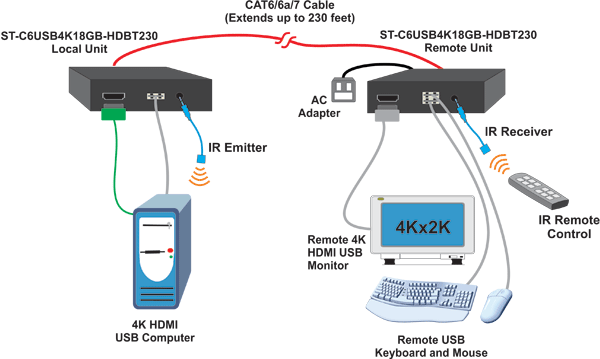

Application Drawings

  • 4K 18Gbps HDMI USB KVM Extender over HDBase-T
    4K 18Gbps HDMI USB KVM Extender over HDBase-T
