Articulating Wall Mount Flat Panel LCD Monitor Arm ergonomic monitor Keyboard mouse brackets
ARM-WL-LCDKB-L
ARM-WL-LCDKB-L

Additional Images/Videos

Wall Mount LCD Arm with Keyboard/Mouse Holder

NTI Part #: ARM-WL-LCDKB-L-Group
The LCD monitor arms and mounting brackets allow effortless height, tilt and rotation adjustment of the monitor by hand.
Also known as: LCD Arms, monitor arms, LCD brackets, monitor brackets, flat panel monitor arm, Flat Panel LCD Arms, Flat Screen Arms, LCD Monitor Arm, Wall Mount, Desk Mount, LCD Custom Mounting Solutions.
  • Save desktop space
  • Ergonomic
Scroll Down to Get Quote

Specifications

  • Swing out adjustable mouse tray.
    • Mouse tray can be switched for right or left hand users.
  • Load capacity: 10 - 18 lbs. (4.5 - 8.2 kg)
  • Range of motion:
    • Arm side-to-side rotation: 180°.
    • Arm vertical adjustment: 90°.
    • Monitor tilt adjustment: 45° up and 25° down.
    • Monitor side-to-side rotation: 180°.
    • Portrait/landscape rotation: 90°
  • Includes:
    • VESA 75 mm (3 in) LCD pivot head
    • VESA 75 mm (3 in) to VESA 100 mm (3.9 in) conversion kit
    • Keyboard platform with mouse tray.
    • 380 mm (15 in) adjustable arm
    • Wall mount bracket (with anchor screws)
  • Color: white
  • Warranty: two years

Application Drawings

  • Wall Mount LCD Arm with Keyboard/Mouse Holder
    Wall Mount LCD Arm with Keyboard/Mouse Holder
    ARM-WL-LCDKB-L (Side View)

CAD Drawings

  • Wall Mount Bracket for LCD Monitor Arms
    Loading image...
  • Wall Mount LCD Arm with Keyboard/Mouse Holder - Top View
    Loading image...
    Product CAD Drawing for ARM-WL-LCDKB-L (Top View)
  • Wall Mount LCD Arm with Keyboard/Mouse Holder - Side View
    Loading image...

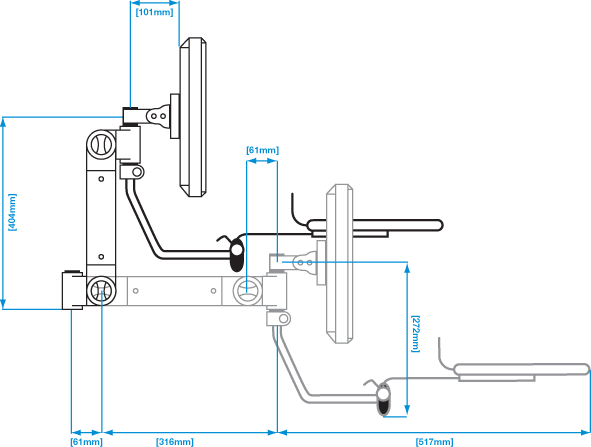

    Product CAD Drawing for ARM-WL-LCDKB-L (Side View)

(0)Monitor Arms

NTI Part # Description Reach (in.) Load (lbs.) Color Qty
ARM-WL-LCDKB-L Wall Mount LCD Arm with Keyboard/Mouse Holder 15 10 - 18 White
