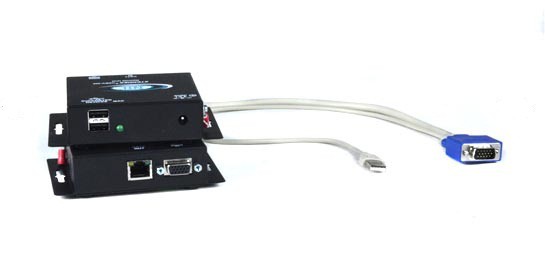

XTENDEX® ST-C5USBV-300 (Remote and Local Units)

Additional Images/Videos

NTI Part #: ST-C5USBV-300-Group

The XTENDEX® ST-C5USBV-300 USB KVM extender extends a USB keyboard/mouse and VGA display up to 300 feet via CAT5/5e/6/6a cable. Each ST-C5USBV-300 consists of a local unit that connects to a computer and provides local keyboard, monitor and mouse connections, and a remote unit that connects to a keyboard, monitor and mouse. The local and remote units are interconnected via CAT5/5e/6/6a cable.

Also known as: CAT5 USB KVM extender, remote keyboard mouse monitor, usb kvm extension 300 feet long, kvm balun.

Works with USB keyboards and mice – does not support other USB devices
Optional audio

Supported Features

Audio
Local Unit Supporting Two Remote Users

Designed and Manufactured in the U.S.A.
ROHS Compliant VGA USB KVM Extender via CAT5 with Audio Option: Extend to 300 Feet
CE Compliant VGA USB KVM Extender via CAT5 with Audio Option: Extend to 300 Feet

Scroll Down to Get Quote

Overview

Supports local and remote access.
Compatible with all video resolutions up to WUXGA (dependant upon CAT5/5e/6/6a extension length).
Supports resolutions to 1920x1440.

High quality, rugged steel construction with durable powder coat finish.
Keyboard and mouse are hot-pluggable.
- Works with USB keyboards and mice only – does not support other USB devices.
Keep-alive keyboard/mouse emulation for flawless operation.
Built-in surge protection.
Available with optional stereo audio.
Integrated mounting brackets for easy surface/wall mounting.
Allows users to back-rack broadcast quality servers without impact to post-production operations.

Specifications

Local Unit

Host Connection
- Supports a USB Computer (PC, SUN, MAC).
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- One male 15-pin HD / one male USB Type A connectors.
- Optional stereo audio support - 3.5 mm stereo plug.
- ST-2C5USBV-L-300: female 15-pin HD connector for downloading DDC table for remote monitor.
Local Access
- Crisp and clear 1920x1440 video resolution.
- One female 15-pin HD connector and two female USB Type A connectors.
- Optional stereo audio support - 3.5 mm stereo plug.
- Supports most USB keyboards and mice, including wireless models.
  - Supports Logitech M100/M-BZ96C/M310 and Dell 0XN967/K251D/XN966/0Y357C mice.
- Local access not available on local units supporting two remote users, ST-2C5USBV-L-300.

Remote Unit

Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
One female 15-pin HD connector and two female USB Type A connectors.
Optional stereo audio support - 3.5 mm stereo plug.
The ST-C5USBV-300 will only work with USB keyboards and mice. It is not designed to support other USB devices.
- Keyboard and mouse must be of the same platform.
- Supports most USB keyboards and mice, including wireless models.
  - Supports Logitech M100/M-BZ96C/M310 and Dell 0XN967/K251D/XN966/0Y357C mice.

Video Quality Adjustment

Video quality adjustment for different lengths of CAT5/5e/6/6a cable is done manually.
Test Pattern for Cable Length

Cables

Use CAT5/5e/6/6a straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Power

ST-C5USBV(A)-300: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
ST-2C5USBV-L-300: powered from attached computer.
Power consumption: 10 W (each - local and remote unit)

MTBF
NTI Part #	MTBF (hrs)
ST-C5USBV-300 (local)	79,100
ST-C5USBV-300 (remote)	81,956
ST-C5USBVA-300 (local)	78,104
ST-C5USBVA-300 (remote)	78,742

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Dimensions

WxDxH: 3.5x3.1x1.3 in (89x79x33 mm)

Regulatory Approvals

CE
RoHS
TAA compliant

Warranty

Two years

Distances and Resolutions for CAT5/5e/6/6a Cables
Cable	Distance	Maximum Resolution
CAT5/5e Solid UTP	300 feet (91 meters)	1280x1024 at 60Hz
	150 feet (46 meters)	1600x1200 at 60Hz
	100 feet (30 meters)	1920x1440 at 60Hz
CAT5/5e Solid STP, CAT6 Solid UTP	300 feet (91 meters)	1024x768 at 60 Hz
	150 feet (46 meters)	1280x1024 at 60 Hz
	100 feet (30 meters)	1600x1200 at 60Hz
CAT6a Solid UTP	300 feet (91 meters)	1024x768 at 60 Hz
	150 feet (46 meters)	1280x1024 at 60 Hz
	100 feet (30 meters)	1920x1200 at 60Hz

Application Drawings

VGA USB KVM Extender via CAT5

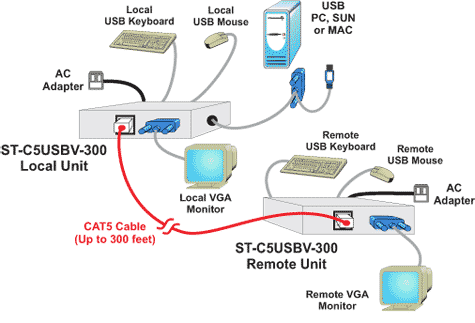

How to extend USB keyboard, USB mouse and VGA monitor up to 300 feet

Application Notes

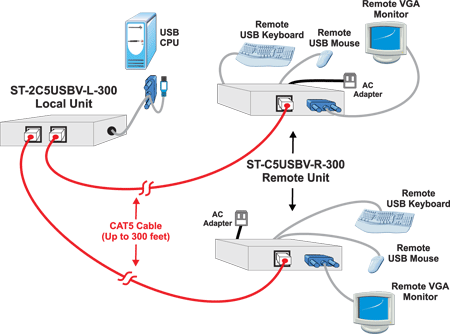

Extend Two Users 300 feet (91 meters) from Computer

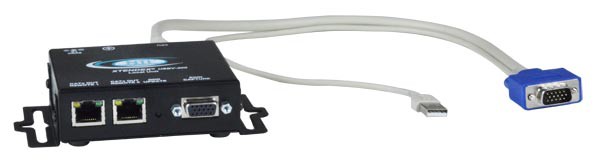

The XTENDEX® ST-2C5USBV-L-300 Dual User Local Unit allows two remote users to access a computer located 300 feet (91 meters) away via CAT5/5e/6 cable.

CAD Drawings

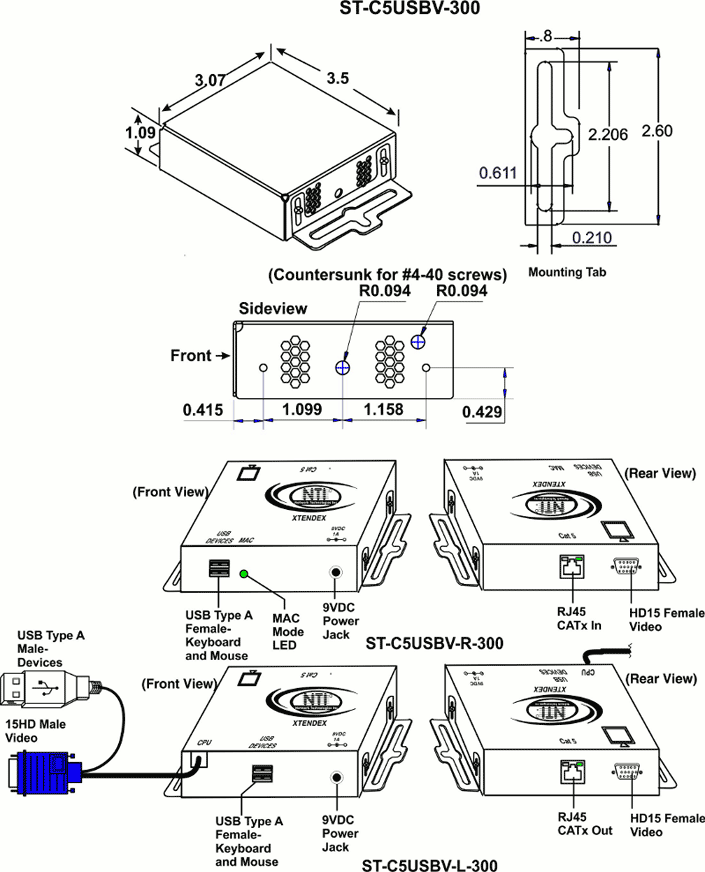

USB KVM Extender via CAT5, up to 300 feet (ST-C5USBV-300)

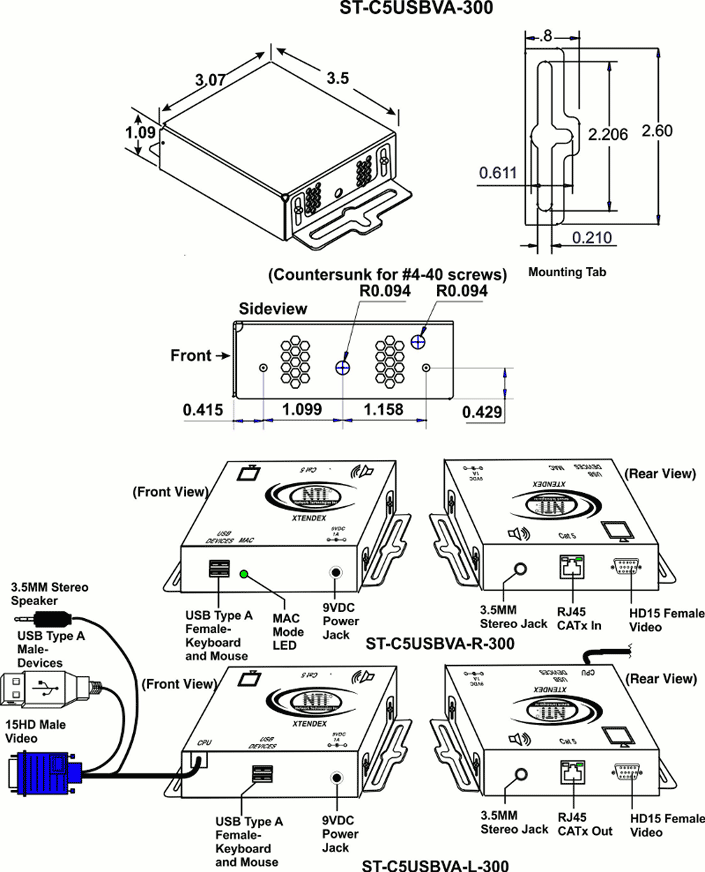

USB KVM Extender via CAT5 with stereo audio, up to 300 feet (ST-C5USBVA-300)

Optional

Options

Stereo Audio

Stereo audio can be heard both locally and remotely.
Frequency response: 20 Hz to 20 kHz, +/-1 dB.
Signal-to-Noise Ratio (SNR): 76 dBA.
Total Harmonic Distortion and Noise (THD+N): 0.017%.
Stereo crosstalk: -70 dB.
Input impedance: 10k Ohms.
Line level output; supports multimedia speakers.
Maximum I/O levels: 3.1Vp-p (line level).

Downloads

"Thank you very much. The ST-C5USBVA-300 has taken care of our problem, and that is a big relief for our hospital.

We have a Xmark tracking and monitoring product called The Hugs Infant Protection System for the healthcare and security markets. It is a Windows based system that constantly monitors the location of infants via an electronic tag and all exits from the department.

This computer system as with any computer system has to have parts, keyboards, etc. replaced from time to time. In our case the computer chassis is in a locked box, hidden away from sight and only the mouse, keyboard, display and audio components are at the nurses station for security. Password protected as well. We had a new USB mouse and keyboard attached to our system via a separate USB extender which caused a lot of intermittent problems, such as computer lock-up, especially after long periods of inactivity. After trying various configurations to no avail, I started researching for new and different manufacturers of a USB KVM + Audio Extender set to simplify and eliminate our problem. NTI's description of their unit had a statement of 'Keep-alive keyboard/mouse emulation for flawless operation' which piqued my curiosity. After talking with a NTI representative about our situation, we decided to try this unit.

We have the ST-C5USBVA-300 in and working, and have not had any more intermittent problems. Our security officer is pleased, as is the nursing staff."

Staate W. Hayward

Holy Family Memorial Hospital

Manitowoc, WI
"I received the ST-C5USBV-300 unit today; already hooked up and working great. We always try to use US manufacturers and I appreciated the Thank You note – nice personal and professional touch!"

Jim Mangrum

Accu-Glass LLC

St Louis, MO

(0)USB KVM Extenders

NTI Part #	Supported Features	Local or Remote	Rackmount or Desktop	Number of Ports
ST-C5USBV-300	KVM	Both	Desktop Unit	1
ST-C5USBVA-300	KVM, Audio	Both	Desktop Unit	1
ST-2C5USBV-L-300	KVM	Local	Desktop Unit	2
ST-C5USBVA-R-300	KVM, Audio	Remote	Desktop Unit	N/A
