VGA to DVI Converter/Extender via Fiber Cable to 1,640 ft

NTI Part #: VGA-DVI-FOSC-Group
The VGA to DVI Converter/Extender converts analog VGA into a digital DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand (simplex) multimode SC fiber optic cable.
Also known as: VGA to DVI converter/extender, VGA optical DVI extender/converter, convert VGA to DVI, VGA to DVI copper fiber converter, VGA to DVI fiber conversion box, VGA to DVI adapter box
Product Highlight
  • Convert VGA into DVI
  • Extend up to 1,640 feet
  • ROHS Compliant VGA to DVI Converter/Extender via Fiber Cable to 1,640 ft
  • VGA to DVI Converter/Extender via Fiber Cable to 1,640 ftDigital Signage Product
  • CE Compliant VGA to DVI Converter/Extender via Fiber Cable to 1,640 ft
  • FCC Compliant VGA to DVI Converter/Extender via Fiber Cable to 1,640 ft
Scroll Down to Get Quote

Overview

The VGA to DVI Converter/Extender converts analog VGA into a digital DVI signal that can be extended up to 1,640 feet (500 meters) using single-strand (simplex) multimode SC fiber optic cable.

The Converter/Extender system has two components: the VGA converter/transmitter, which connects to the VGA source and also supplies video to a local VGA display, and an ST-1FODVI-R-SC500M receiver that connects to a remote DVI monitor. The units are interconnected by a single-strand multimode SC fiber optic cable.

  • Convert a video source with analog VGA signal to a digital DVI signal.
  • Use with an optical receiver (ST-1FODVI-R-SC500M) to extend a remote DVI monitor 1,640 ft (500m).
    • Signal transmission via a single-strand (simplex) multimode (50-micron or 62.5 micron) SC fiber optic cable - no RF interference.
  • Supports resolutions to 1920x1200 (WUXGA).

Specifications

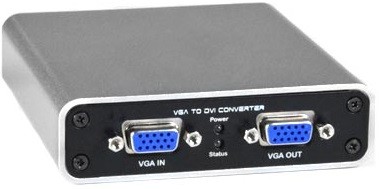

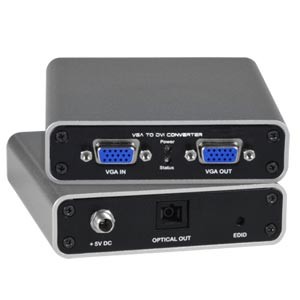

Converter (VGA-DVI-FOSC)
Video Input
  • One female 15-pin HD connector for VGA input.
Video Output
  • One female 15-pin HD connector for VGA output.
  • One female SC fiber connector for optical DVI output.
  • Supports resolutions to 1920x1200.
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -22 to 158°F (-30 to 70°C).
  • Relative humidity: 0 to 85% non-condensing RH.
Dimensions
  • WxDxH in: 4.09x4.41x1.10 (104x112x28 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years

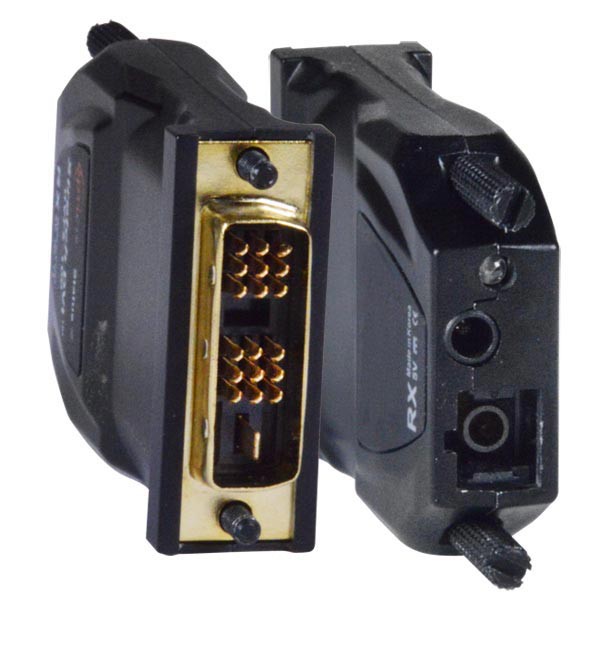

Optical Receiver (ST-1FODVI-R-SC500M)
Video Input
  • One female SC fiber connector for optical DVI input.
Video Output
  • One male DVI-D single link connector for DVI output.
  • Supports resolutions to 1920x1200.
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C)
  • Storage temperature: -22 to 158°F (-30 to 70°C)
  • Relative humidity: 0 to 85% non-condensing RH
Dimensions
  • WxDxH in: 1.54x2.20x0.59 (39x56x15 mm)
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.
Max Distance
  • 1,640 feet (500 meters) over 50µm multimode SC fiber optic cable.
Cables
  • Use a FIBER-S-SCSC-50-xM (simplex multimode SC 50-micron) fiber optic cable to extend the remote unit up to 1,640 ft (not included).
    • Simplex multimode SC 62.5-micron fiber optic cables are also compatible.

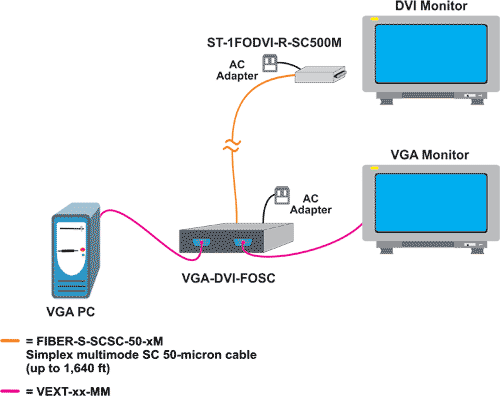

Application Drawings

  • VGA to DVI Converter/Extender via Fiber Cable to 1,640 ft
    VGA to DVI Converter/Extender via Fiber Cable to 1,640 ft

Downloads

Data Sheet:
User Manual:

(0)Converter/Extender via Fiber Cable

NTI Part # Description Qty
VGA-DVI-FOSC VGA Converter/Extender via Fiber Cable
ST-1FODVI-R-SC500M Optical DVI Receiver via Fiber Cable

Collapse all Expand all Related Items :

(0)Compatible Simplex 50/125 SC/SC Fiber Optic Cable

NTI Part # Length Qty
FIBER-S-SCSC-50-50M 50 meters
FIBER-S-SCSC-50-100M 100 meters
FIBER-S-SCSC-50-300M 300 meters
FIBER-S-SCSC-50-500M 500 meters

(0)VGA Video Cables, Male to Male

NTI Part # Length Color Description Qty
VEXT-1-5-MM 1.5 feet Black No Ferrite
VEXT-3-MM 3 feet Black 2 Molded in Ferrite Cores
VEXT-6-MM 6 feet Black 2 Molded in Ferrite Cores
VEXT-10-MM 10 feet Black 2 Molded in Ferrite Cores
VEXT-15-MM 15 feet Black 2 Molded in Ferrite Cores
VEXT-25-MM 25 feet Black 2 Molded in Ferrite Cores
