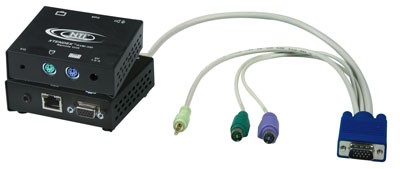

ST-C5KVMA-300 (Remote and Local Unit)
ST-C5KVMA-300 (Remote and Local Unit)

Additional Images/Videos

PS/2 KVM Extender via CAT5: Extend to 300 Feet

NTI Part #: ST-C5KVM-300-Group
The XTENDEX® KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300 feet using CAT5/5e/6/6a UTP cable.
Also known as: KVM extender, cat5 kvm extension, kvm balun, keyboard monitor mouse extend, remote kvm cat 5, kvm range extender.
Supported Features
  • KVM
  • Audio
  • Internal Power Supply
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant PS/2 KVM Extender via CAT5: Extend to 300 Feet
  • CE Compliant PS/2 KVM Extender via CAT5: Extend to 300 Feet
Scroll Down to Get Quote

Overview

The XTENDEX® KVM extender provides local and remote KVM (PS/2 keyboard, PS/2 mouse and VGA monitor) access to a PC or NTI KVM switch up to 300 feet using CAT5/5e/6/6a UTP cable.

  • Sharpest and clearest VGA quality over CAT5 of any manufacturer.
  • Supports two users: one local and one remote.
  • Local unit provides local KVM access.
  • Supports resolutions to 1920x1440.
  • Allows local and remote access to network servers.
  • Built-in surge protection.
  • Optional external surge protection available.
  • Available with optional stereo audio.
  • Keep-alive keyboard/mouse emulation for flawless operation.
  • Use in-house CAT5/5e/6/6a wiring to locate a keyboard, monitor and mouse remotely.
  • Optional VESA mounting bracket is available for mounting the local or remote unit to the back of a flat panel monitor.

Specifications

Local Unit
  • Host Connection
    • Supports a PC, SUN Fire™ V20z, or NTI Switch.
    • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
    • Male 15-pin HD/male 6-pin miniDIN connectors for PC or NTI KVM switch.
    • Optional stereo audio support — 3.5 mm stereo plug.
  • Local Access
    • Crisp and clear 1920x1440 video resolution.
    • Female 15-pin HD connector.
    • Female 6-pin miniDIN connectors.
    • Compatible with Japanese keyboard layout.
    • Supports PS/2 mice including the IBM ScrollPoint mouse.
    • NTI recommends using identical keyboards and mice at local and remote units.
    • Optional stereo audio support — 3.5 mm stereo jack.
Remote Unit
  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
  • Female 15-pin HD connector.
  • Female 6-pin miniDIN connectors.
  • Compatible with Japanese keyboard layout.
  • Supports PS/2 mice including the IBM ScrollPoint mouse.
  • Optional 3.5 mm stereo audio connection.
Video Quality Adjustment
Environmental
  • Operating temperature: 32 to 113°F (0 to 45°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Dimensions
  • ST-C5KVM(A)-300
    • WxDxH: 3.5x3.1x1.2 in (89x79x30 mm)
    • Weight: 1.2 lbs (0.54 kg)
Power
  • ST-C5KVM(A)-300
    • Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Power Consumption: 10 W (each - local and remote unit).

MTBF

NTI Part # MTBF (hrs) NTI Part # MTBF (hrs)
ST-C5KVM-300 (local) 88,969 ST-C5KVM-300 (remote) 86,881
ST-C5KVMA-300 (local) 88,128 ST-C5KVMA-300 (remote) 85,768

Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years

ST-C5KVM-300 Distances and Resolutions for CAT5/CAT5e/CAT6/CAT6a cables
Cable Distance (ft) Maximum Resolution
CAT5/5e Solid UTP 300 1280x1024 at 60 Hz
150 1600x1200 at 60 Hz
100 1920x1440 at 60 Hz
CAT5/5e Solid STP,
CAT6 Solid UTP
300 1024x768 at 60 Hz
150 1280x1024 at 60 Hz
100 1600x1200 at 60 Hz
CAT6a Solid UTP 300 1024x768 at 60 Hz
150 1280x1024 at 60 Hz
100 1920x1200 at 60 Hz

Application Drawings

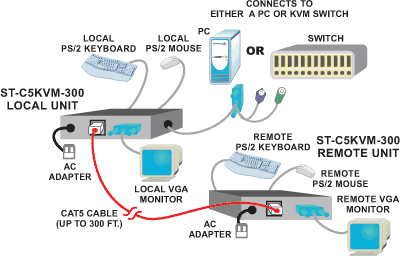

  • XTENDEX extends control up to 300 feet (91 meters) from PC or NTI switch with no loss of signal
    XTENDEX extends control up to 300 feet (91 meters) from PC or NTI switch with no loss of signal

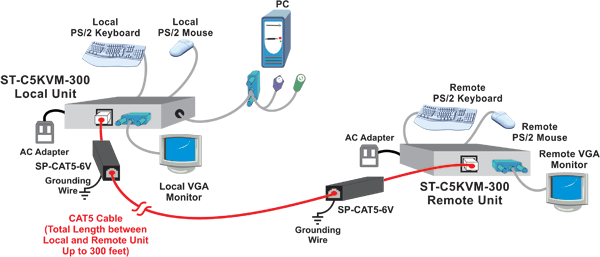

  • Surge Protection for CATx Cable
    Loading image...
    The SP-CAT5-6V CATx Surge Protector protects equipment running on CATx unshielded twisted pair (UTP) cable against the effects of electrostatic discharge, faulty wiring and lightning. Use a protector on each end of the line to provide increased protection on each end against surges.

CAD Drawings

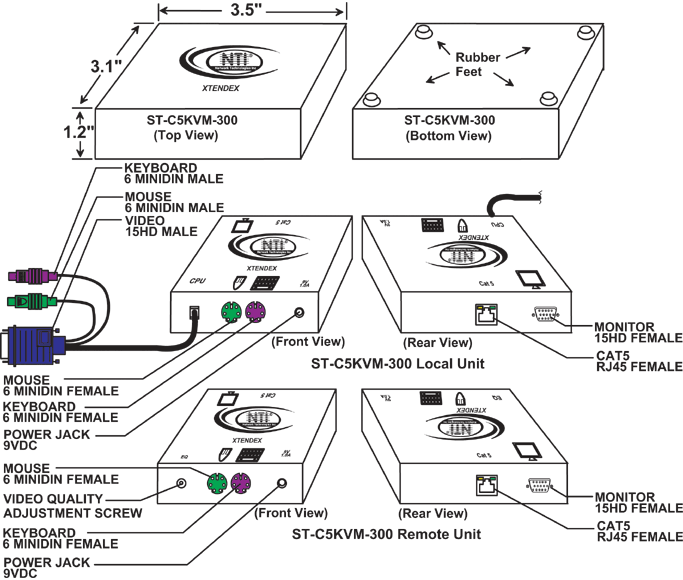

  • ST-C5KVM-300
    Loading image...

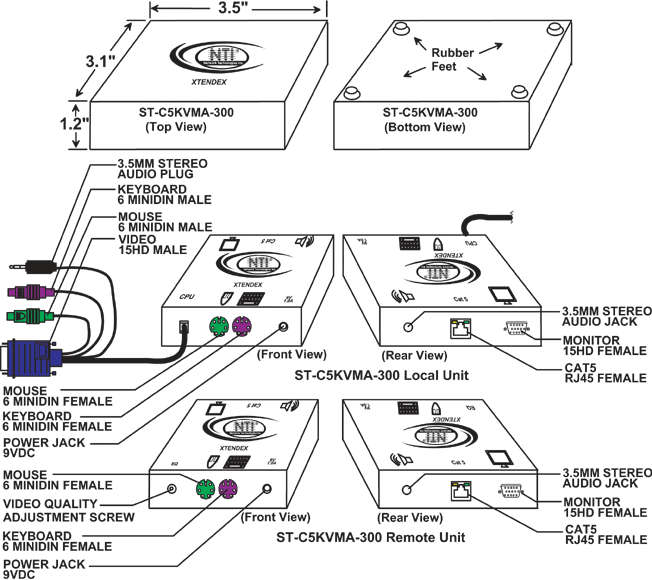

  • ST-C5KVMA-300
    Loading image...

Optional

Stereo Audio
  • Stereo audio can be heard both locally and remotely.
  • Frequency response: 20 Hz to 20 kHz, ±1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
  • Maximum I/O levels: 3.1Vp-p (line level).
  • CD quality audio output.
CATx Surge Protector
  • Protects equipment running on CATx unshielded twisted pair (UTP) cable against the effects of electrostatic discharge, faulty wiring and lightning.
  • The use of two protectors on each end of the line will provide increased protection for each end against surges.
  • Protected Pins: (1,2) (3,6) (4,5) and (7,8) pass through
  • Impedance: 85 to 115 Ohms
  • Surge Suppression: 22Vpeak @ 100A 2/10µs
  • Dimensions WxDxH: 1x3.6x0.9 in (25x91x23 mm)
VESA Mounting Bracket
  • Use to mount the local or remote unit to the back of a flat panel monitor.
  • Compliant to VESA 75 and 100 mm (3 and 3.9 in) mounting hole patterns.
  • Dimensions WxH (in): 9.7x4.8
  • Compatible with the local or remote unit.
