VGA PS/2 KVM Splitter

NTI Part #: VOPEX-2KVIM-A-Group

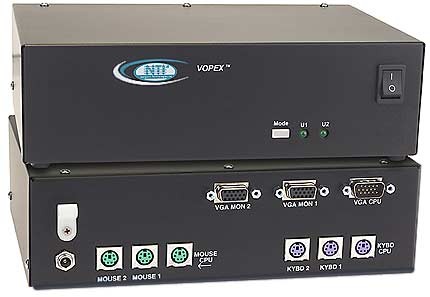

VOPEX-2KVIM-A (Front & Back)

Additional Images/Videos

NTI Part #: VOPEX-2KVIM-A-Group

The VOPEX® KVM splitter with optional audio allows up to four users to share the use of one PS/2 computer.

Also known as: video splitter, VGA splitter, splitter, keyboard monitor mouse splitter, PS/2 keyboard splitter, VGA video splitter, reverse KVM switch

Designed and Manufactured in the U.S.A.
ROHS Compliant VGA PS/2 KVM Splitter
CE Compliant VGA PS/2 KVM Splitter

Scroll Down to Get Quote

Overview

The VOPEX^® VGA PS/2 KVM splitter allows up to four users to share the use of one PS/2 computer.

Access one computer from multiple locations.
Multiple users can enter data into the same program.
Interconnect NTI switches and splitters for complex applications.
Allows access to a PC from inside and outside of a clean room.

Specifications

Host Connection

Male 15-pin HD connector.
Female 6-pin miniDIN connectors.
Compatible with PS/2 style PCs, RS6000, SGI, and HP9000.

Monitor

Female 15-pin HD connectors for VGA monitor.
Bandwidth is 150 MHz.
Supports 1920x1200 resolution.

Devices

Female 6-pin miniDIN connectors.
Keyboards and mice are hot-pluggable.

Cables

One 3-ft male-to-female VGA cable and two 6-ft male-to-male PS/2 cables are provided to connect your PS/2 keyboard, mouse and video ports.
Use VKMEXT 3-in-1 cable to extend keyboard, monitor and mouse to 100 feet (30 meters).

Power

110 or 220 VAC at 50 or 60 Hz via AC adapter.
Power consumption: 10 W

MTBF

2 port: 81,566 hrs
4 port: 79,417 hrs

Dimensions

WxDxH: 8.5x6x2.6 in (216x152x66 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -20 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS
TAA compliant

Warranty

Two years.

Control Methods

Press MODE button to cycle through all 6 modes. LEDs indicate which mode is selected.
USER 1 Mode – Only USER 1 can type or move the mouse.
USER 2 Mode – Only USER 2 can type or move the mouse.
USER 3 Mode – Only USER 3 can type or move the mouse.
USER 4 Mode – Only USER 4 can type or move the mouse.
INST Mode – All user(s) have immediate access after last keystroke or mouse movement occurs on active user.
DELAY Mode – Locked out user(s) must wait five seconds after last keystroke or mouse movement occurs on active user.
In Inst or Delay Mode, typing or mouse movement activates user control.

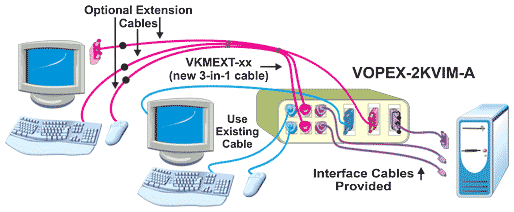

Application Drawings

VGA PS/2 KVM Splitter

Application Notes

Provide Local and Switched Access to Multiple Computers

A network manager can access multiple computers, while each user has individual access to their own computer.

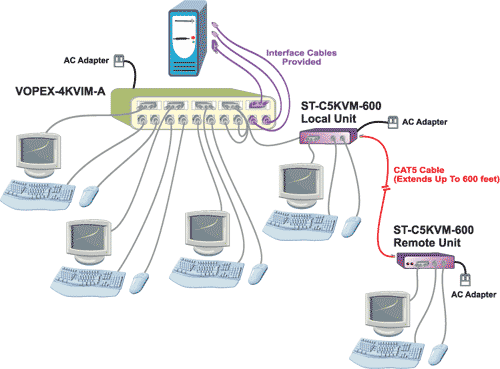

Access One PC from Multiple Control Locations up to 600 Feet Away Using CAT5 Cable

Interconnect the VOPEX® KVM Splitter, VOPEX-xKVIM-A, with XTENDEX™ KVM Extenders via CAT5, ST-C5KVM-600 to access one PC from multiple control locations located up to 600 feet away using CAT5 UTP cable.

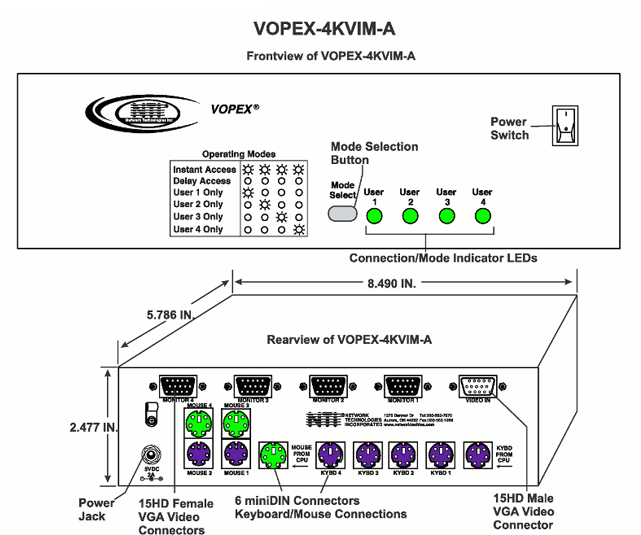

CAD Drawings

VOPEX-4KVIM-A

Downloads

Data Sheet:

PS/2 KVM Splitter 302 KB

User Manual:

VOPEX-2/4KVIM-A - Installation and Operation Manual 237 KB

"Thank you for filling a niche at an affordable price. Your KVM Splitter (VOPEX-4KVIM-A) was just what I was looking for- it is a great way to quickly and painlessly share a PC."

Laura Demont

Headway

Milpitas, CA
"The VOPEX-4KVIM-A 4-port KVM splitter worked great and did exactly what we needed with perfect resolution."

Fred Springer

Point360

Burbank, CA
"I just wanted to let you know how pleased I am with your VOPEX-4KVIM-A 4-Port KVM Splitter. We have had it in service for almost two years and have had no problems. It works as advertised and is very reliable. Thanks for a great product."

Richard Dreher

Palm Beach County Water Utilities

West Palm Beach, FL
"I want to thank you for sending my order so quickly. I have two dental operatories, which are connected to one CPU. Your splitter allows me to run two keyboards and mice. In addition, I have four monitors in the rooms that allow the patients to view their x-rays and treatment plans easily as well as me having private access to write my notes when needed. The installation was so easy that I completed it in less than one hour. Thank you again for your help and the excellent product that Network Technologies provides."

Lloyd M. Smith, D.D.S.

Janesville, WI

(0)VGA PS/2 KVM Splitters

NTI Part #	Number of Ports	Supported Features	Qty
VOPEX-2KVIM-A	2	KVM, PS/2
VOPEX-4KVIM-A	4	KVM, PS/2
