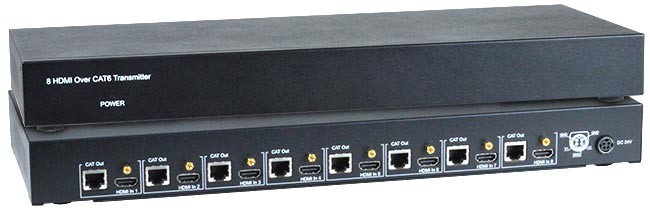

The XTENDEX® Multiple HDMI Extender Over HDBase-T with Power Over Ethernet transmits uncompressed digital HDMI signals from 8 sources to 8 remote displays and speakers, each located up to 328 feet away via CAT6/6a/7 cable using HDBase-T technology. Each input corresponds to a specific output in a point-to-point connection: input 1 is always connected to output 1, and so on. Power Over Ethernet (PoE) provides power to all connected receivers.
- Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (30Hz) and 2096x2160 (30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
- With CAT6/6a/7 (23 AWG): 328 feet.
- With CAT5e (24 AWG): 250 feet.
- Each input is directly connected to a corresponding output – point-to-point extension.
- Input 1 is connected to output 1, input 2 is connected to output 2, etc.
- HDCP compliant.
- Supports Power over Ethernet (PoE) – power supply not required at the remote unit.
- HDMI features supported:
- 4K x 2K - 3840x2160 and 4096x2160 resolutions
- 24/36-bit Deep Color
- x.v.Color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
- 3D
- Bandwidth up to 300 MHz (10.2 Gbps)
- Support for CEC (consumer electronic control) compatible devices
- Lip Sync
- No loss of audio or video quality between the transmitter and remote units.
- Reads EDID from the connected display.
- Compact 1RU design.
