Extend HD 1080p, multi-channel audio, IR, optional RS232/Ethernet up to 600 feet using HDBaseT technology
XTENDEX® ST-C6HD-HDBT (Remote & Local Unit)
XTENDEX® ST-C6HD-HDBT (Remote & Local Unit)

Additional Images/Videos

HDMI HDBaseT Extender with IR & Optional RS232/Ethernet via One CAT6a/7: Extend up to 600 Feet

NTI Part #: ST-C6HD-HDBT-Group
The XTENDEX® HDMI HDBaseT Extender transmits uncompressed digital HDMI signal, IR, optional RS232 and optional Ethernet up to 600 feet over a single CAT6a/7 solid cable using HDBaseT technology. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.
Also known as: HDBase-T extender, HDMI extender single CAT5, cat6 HDMI monitor extender, remote digital HDMI monitor, HDMI IR RS232 Ethernet transmitter/receiver, high definition 1080p extender over cat5, extend HDTV video, digital video balun.
  • Extend 1080p video & IR control to 600 ft via One CAT6a/7 Solid Cable
  • Optional RS232, Ethernet
  • Only One Power Supply Required
  • Uses HDBaseT technology
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant HDMI HDBaseT Extender with IR & Optional RS232/Ethernet via One CAT6a/7: Extend up to 600 Feet
  • HDMI HDBaseT Extender with IR & Optional RS232/Ethernet via One CAT6a/7: Extend up to 600 FeetDigital Signage Product
  • CE Compliant HDMI HDBaseT Extender with IR & Optional RS232/Ethernet via One CAT6a/7: Extend up to 600 Feet
Scroll Down to Get Quote

Overview

The XTENDEX® HDMI HDBaseT Extender transmits uncompressed digital HDMI signal, IR, optional RS232 and optional Ethernet up to 600 feet over a single CAT6a/7 solid cable using HDBaseT technology. Each video extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

  • Transmits an uncompressed high speed HDMI signal over one CAT6a/7 solid cable.
  • Supports HDTV resolutions to 1080p.
    • ST-C6HD-HDBT supports 1920x1200 (WUXGA), but ST-C6HDE-HDBT does not.
    • Extend up to 450 feet with solid CAT5e/6 cable.
    • Extend up to 600 feet with solid CAT6a/7 cable (23 AWG).
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • Only one power supply is necessary to power both the local and remote units.
  • HDMI features supported:
    • x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
    • Bandwidth up to 154 MHz (3.76 Gbps).
    • Support for CEC (consumer electronic control) compatible devices.
    • Lip Sync
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • Available models:
    • HDMI + IR (ST-C6HD-HDBT)
    • HDMI + IR + bi-directional RS232 + Ethernet (ST-C6HDE-HDBT)
      • Optional Ethernet port on the transmitter and receiver for connecting network devices such as 100Base-T routers, hubs, smart TVs or smart Blu-Ray players.
  • Integrated mounting brackets for easy surface/wall mounting (ST-C6HDE-HDBT only).
  • High quality, rugged steel construction with durable powder coat finish.

Specifications

Local Unit
  • Compatible with a computer or HDTV video source with HDMI output.
  • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR emitter (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart Blu-Ray player; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
Remote Unit
  • Supports HDTV resolutions to 1080p.
    • ST-C6HD-HDBT supports 1920x1200 (WUXGA), but ST-C6HDE-HDBT does not.
  • ST-C6HD-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for sending/receiving high definition video, audio, IR, and DDC signals.
  • ST-C6HDE-HDBT: one female HDMI connector; one female 3.5mm port for IR receiver (included); one female RJ45 port for RS232; one female RJ45 100BaseT Ethernet port for connecting network device such as a 100Base-T router, hub, or smart TV; one female RJ45 port for sending/receiving HD video, audio, IR, DDC, Ethernet, and RS232 signals.
Dimensions
  • ST-C6HD-HDBT WxDxH (in): 2.54x3.08x1.08
  • ST-C6HDE-HDBT (in): 6.06x3.05x1.08
Power
  • Powered from a single power supply attached to either the local or remote unit.
  • Local or remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Environmental
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating/storage relative humidity: 5 to 90% non-condensing RH.
Max Distance
  • 450 feet (137 meters) over CAT5e/6 cable.
  • 600 feet (183 meters) over CAT6a/7 cable (23 AWG).
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display.
  • Use DVI-HD-xx-MM cable to connect a DVI source or display.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
    • CAT5e/6 solid: up to 450 feet.
    • CAT6a/7 solid (23 AWG): up to 600 feet.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant.
Warranty
  • Two years

Application Drawings

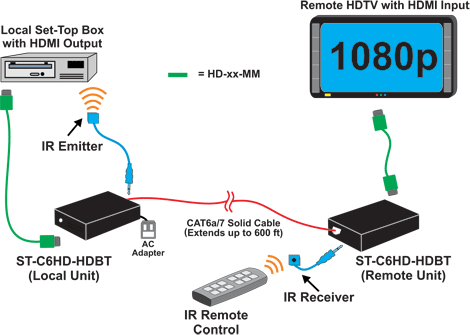

  • HDMI HDBase-T Extender with IR and RS232 via One CATx Cable
    HDMI HDBase-T Extender with IR and RS232 via One CATx Cable
    How to extend HDMI video up to 600 ft using the XTENDEX HDMI HDBase-T Extender with IR via One CAT6a/7

  • "We received the ST-C6HD-HDBT extender. I hooked it up, and it is very stable at 450 feet of CAT5e cable. That's over twice the distance that we will be using them at. I have been running it without a problem. Very impressive!"

    Mike M.
    The Villages Entertainment
    The Villages, FL
  • "The ST-C6HD-HDBT extenders work very well. We are using them for extending video to multiple projectors setup in a gallery space. This saved us time and cost of having to install additional equipment in this space, and allowed us the flexibility to extend the video from another physical location. We have tried other extender products in the past, but now only use NTI due to their reliability."

    Sean P.
    Peabody Essex Museum
    Salem, MA
  • "We just bought our second pair of ST-C6HD-HDBT extenders from you...The products do a great job at their intended use. We have it installed on the back of a virtual camera... We really want to keep using your products. Thanks!"

    Casey S.
    The Third Floor Inc
    Los Angeles, CA
  • "The ST-C6HD-HDBT is great; I have not had any issues with it. The single side power and single cat5e cable are really the reason I bought it. We are using it as a plug in our conference room. The fact that I can keep the power in the server room and not under the conference table is great!"

    Logan G.
    Digital Results Group Inc
    Boston, MA
  • "We installed the ST-C6HD-HDBT in a brand new building that we ran CAT6 throughout. The extender works great! We get 1080i! Thanks!"

    Wayne K.
    Interlake Steamship Company
    Middleburgh Heights, OH

(0)HDMI HDBase-T Extender Models

NTI Part # Supported Features Qty
ST-C6HD-HDBT HDMI, IR
ST-C6HDE-HDBT HDMI, IR, RS232, Ethernet
