Low-Cost HDMI Quad Screen Splitter/Multiviewer

Low-Cost HDMI Quad Screen Splitter/Multiviewer

NTI Part #: SPLITMUX-HD-4LC-Group

SPLITMUX-HD-4LC (Front & Back)

Additional Images/Videos

NTI Part #: SPLITMUX-HD-4LC-Group

The SPLITMUX® Low-Cost HDMI Quad Screen Splitter/Multiviewer allows you to simultaneously display real-time HDMI video from four different sources on a single monitor. It is capable of displaying the video sources in quad, dual, PiP or full screen mode.

HDMI & DVI
Resolutions up to 1080p
Quad, Dual, Picture in Picture & Full Screen modes

ROHS Compliant Low-Cost HDMI Quad Screen Splitter/Multiviewer
Low-Cost HDMI Quad Screen Splitter/MultiviewerDigital Signage Product
CE Compliant Low-Cost HDMI Quad Screen Splitter/Multiviewer

Scroll Down to Get Quote

Overview

Quad, Dual, Picture in Picture, and Full Screen display modes.
Supports HDTV resolutions to 1080p:
HDMI features supported:
- 10-, 12-, and 16-bit xvYCC, RGB, and YCbCr.
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS, LPCM 7.1, and LPCM 2.
- Bandwidth up to 340 MHz (8 Gbps)
- Lip Sync
HDCP compliant.
Seamlessly scan between up to four sources at set intervals.
Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
Any DVI source can be connected by using the DVI-HD-xx-MM cable (not included).
Control the multiviewer through front panel buttons, IR remote or RS232
Built-in EDID table

Specifications

Video Input

Four female HDMI connectors
Input resolutions: 480p, 576i, 720p, 1080i, 1080p.
Supports digital HDMI devices such as DVD/Blu-Ray players, satellite receivers and HDTV tuners.
A DVI source can be connected by using the
DVI-HD-xx-MM cable (not included).
Supports HDCP 1.2

Video Output

One female HDMI connector.
Output resolutions: 720p, 1080p.
Supports HDCP 1.2

Power

Input: 100 to 240 VAC at 50 to 60 Hz via AC adapter. (US AC adapter included.)
- Optional universal power plug adapters available (not included).
Output: 12 VDC, 1A
Power consumption: 7W.

Dimensions

WxDxH (in): 9.96x5.66x1.57 (253x144x40 mm)

Regulatory Approvals

CE, RoHS
TAA compliant

Environmental

Operating temperature: 14 to 158°F (-10 to 70°C).
Storage temperature: -4 to 185°F (-20 to -85°C).
Operating and storage relative humidity: 95% non-condensing RH.

Cables

Use HD-xx-MM HDMI cables to connect to an HDMI source or display up to 100 feet away from the multiviewer.
- Video Input: Supports HDMI cables up to 75ft
- Video Output: Supports HDMI cables up to 100ft
Use DVI-HD-xx-MM cables to connect a DVI or HDMI source to the multiviewer.
Cables not included.

Warranty

Two years

Package Includes

One HDMI multiviewer
One 12V, 1A power supply
One IR remote
Wall mount screws
User manual

Control Methods

Front Panel Interface

Use front panel buttons to locally change ports and select a display mode.

RS232

Configuration and control can be done through the serial ports.
- Female DB9 connector.

Infrared Remote Control

Use to change ports and select a display mode.

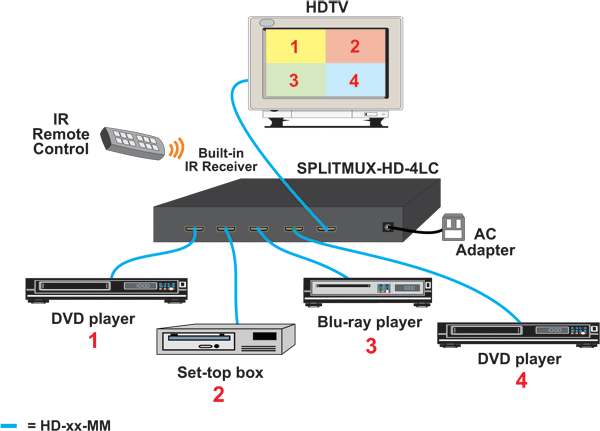

Application Drawings

Low-Cost HDMI Quad Screen Splitter/Multiviewer

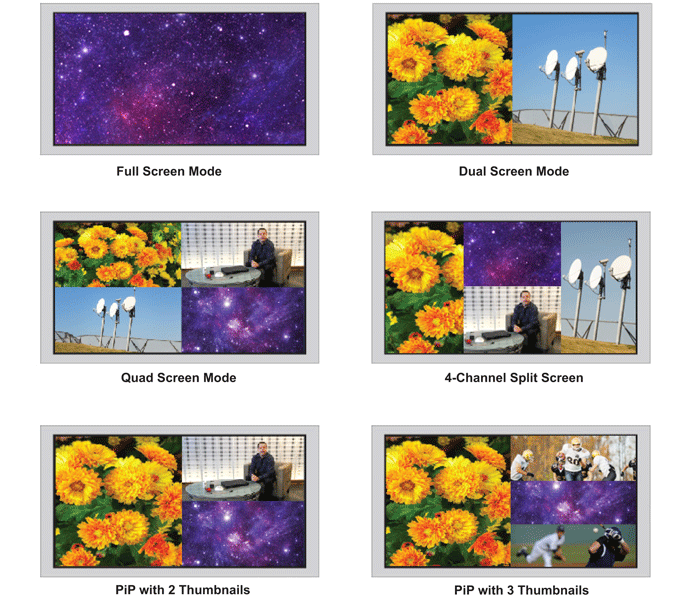

Display Mode Examples

Optional

Display Modes

Quad Mode

In quad mode, the screen is split into four fields of equal size each displaying the entire contents of four different video sources.
Fluid, real-time video performance with 60 frames per second (fps) is all four quadrants.

Dual Mode

In dual mode, the screen is split into two fields of equal size displaying the entire contents of two different video sources side-by-side.
- The original image can be stretched or retain its aspect ratio.
Fluid, real-time video performance with 60 frames per second (fps).

Full Screen Mode

In full screen mode, one of the four video sources is displayed in full screen size and maximum resolution.
Scan feature: cycle through four different sources at set intervals.

Picture in Picture (PiP) Mode

In PiP mode, the full screen display of one of the four video sources is accompanied by two or three small images (thumbnails) of the three other video sources allowing simultaneous monitoring.
- If there is no video source connected to the thumbnail, its screen will remain black.
Scan feature: cycle through two or four different sources at set intervals for the larger image.

Downloads

Data Sheet:

Low-Cost HDMI Quad Screen Splitter/Multiviewer 225 KB

User Manual:

SPLITMUX-HD-4LC – Installation and Operation Manual 494 KB

"We have been using the SPLITMUX-HD-4LC and it is just perfect for our needs. It provides great video quality, and is very simple to operate."

Dusan T.

DLIFLC PAO

Monterey, CA
