8K DisplayPort 1.4 Extender via Two LC Singlemode Fiber Optic Cables

Cables

• Use DP14-xx-MM to connect a DisplayPort source/display up to 15 feet from the transmitter/receiver.
  • Two 3-ft DisplayPort 1.4 cables (DP14-3-MM) included.
  • ST-2FODP14-LC9 only supports 8K@30Hz (4:2:2, 8-bit) and 4K@120Hz (4:2:2, 8-bit) resolutions (23.76 Gbps) when used with NTI’s DP14-xx-MM cables. All other DP 1.4 cables will support resolutions to 3840x2160@60Hz (4:4:4, 8-bit).
• Use DP8K-FO-xxM-MMLC to connect a DisplayPort source/display up to 100 meters from the transmitter/receiver (not included).
  • Maximum resolution supported with ST-2FODP14-LC9 is 3840x2160@60Hz.
• Use USB3C-DP4K-xx-MM to connect a computer, tablet, or smartphone with USB Type C connector up to 10 feet from the transmitter (not included).
  • Supports resolutions to 3840x2160@60Hz.
• Use DP-VGA-xx-MM to connect a VGA display up to 15 feet from the receiver (not included).
  • Supports resolutions to 1920x1200@60Hz.

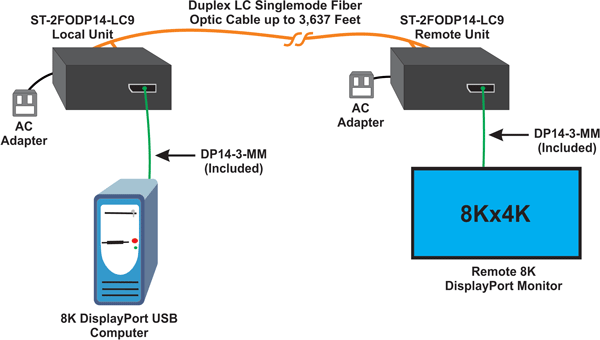

• Use a duplex LC singlemode 9/125-micron fiber optic cable to extend the receiver from the transmitter up to 3,637 feet (1,200 meters) (not included).

Environmental

• Operating temperature: 32 to 122°F (0 to 50°C).
• Storage temperature: -4 to 158°F (-20 to 70°C).
• Operating and storage relative humidity: 20 to 80% non-condensing RH.

Dimensions

• Local and remote unit WxDxH (in): 2.95x5.63x1.15 (75x143x29 mm)

Regulatory Approval

• CE, FCC, RoHS
• TAA Compliant

Warranty

• Two years
