External 48VDC to +5VDC, 2A Power Converter
External 48VDC to +5VDC, 2A Power Converter

External 48VDC to +5VDC, 2A Power Converter

NTI Part #: PWR-48V-5V2A
Accepts 36 ~72 V DC (48 VDC nominal). Outputs +5 V DC and can handle 2 A load.

Overview

  • External DC-DC converter.
  • Use the power converter to install NTI products in a Telecom environment.
  • Accepts 36~72 VDC (48 VDC nominal).
  • Accepts positive or negative polarity.
  • Outputs +5 VDC and can handle 2 A load.
  • 3-pole detachable screw terminal for connecting 48 V input.
  • 2.1x5.5 mm (0.083x0.22 in) male DC power jack.
  • Dimensions WxDxH: 3.18x3.09x1.08 in (81x78x27 mm)
  • Includes a 3-foot (0.91-meter) female-to-female DC power cable.
  • MTBF: 120,636 hrs
  • Operating temperature: -13 to 158°F (-25 to 70°C).
  • Efficiency: 80%, ±5%
  • Regulatory Approvals: CE, RoHS

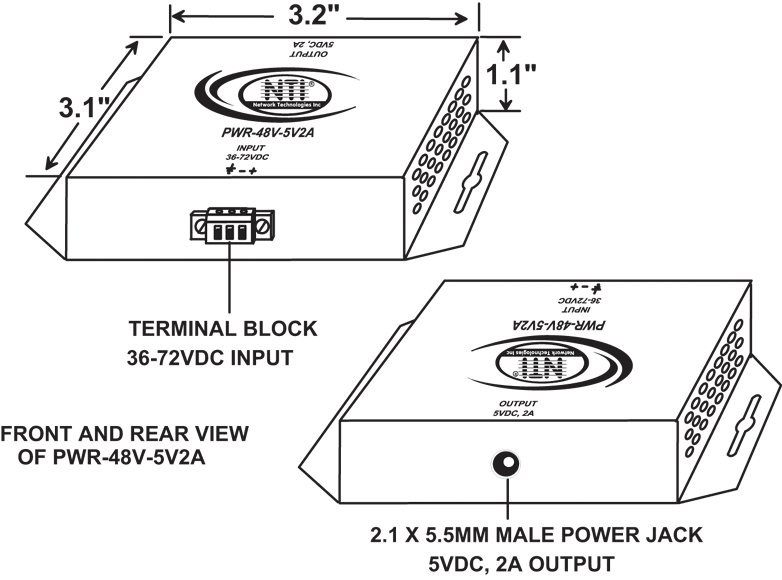

CAD Drawings

  • External 48VDC to +5VDC, 2A Power Converter (PWR-48V-5V2A)
    External 48VDC to +5VDC, 2A Power Converter (PWR-48V-5V2A)
