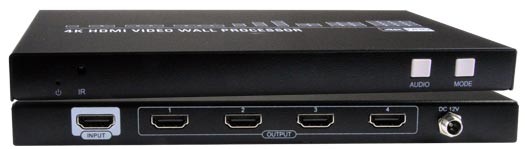

2x2 HDMI Video Wall Processor – 4K 60Hz HDMI 2.0 Video Input & Four 1080p Outputs

The SPLITMUX® HDM Video Wall Processor displays video from one 4Kx2K 60 Hz HDMI video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall. Additionally, it can be used as a video splitter.

• Supports video wall configurations with displays in landscape orientation – 1x2, 1x3, 1x4, 2x1, 3x1, 4x1, 2x2
  • In 2x2 Rotation Mode, the top two images will be rotated 180 degrees.
  • In 1x1 Mode, use as a video splitter – all monitors simultaneously display the same image.
• Supported resolutions:
  • Input: Ultra-HD 4Kx2K resolutions to 3840x2160 (60Hz) and HDTV resolutions to 1080p.
  • Output: 1920x1080 (fixed for each port).
• Cascade processors up to six levels to create large video walls up to 64x64 or 1x4096.
• HDMI features supported:
  • HDMI 2.0
  • Up to 36-bit Deep Color
  • RGB, YCbCr 4:4:4, YCbCr 4:2:0
  • LPCM 2/5.1/7.1, Dolby, DTS
  • YUV 4:4:4 and 4:2:0
• HDCP 2.2 and 1.4 compliant.
• Fluid, real-time video performance with 60 frames per second (fps).
• Each monitor simultaneously plays the audio.
• Quick and easy plug-and-play installation – no drivers or software.
• Control the video wall controller through front panel buttons or IR remote (included).
• Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.
