Extend four USB devices up to 820 feet (250 meters) using a single SC singlemode or multimode fiber optic cable

4-Port USB 2.0 Extender via Fiber Optic Cable up to 820 Feet – No Drivers Required

NTI Part #: USB2-FOSC-4-Group

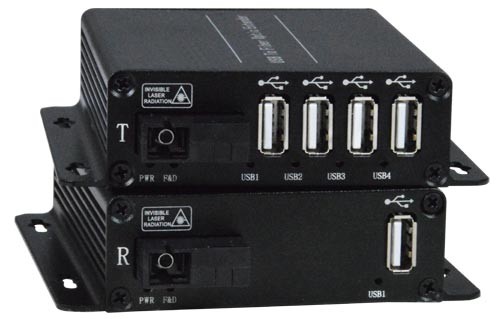

USB2-FOSC-4 (Remote and Local Unit)
USB2-FOSC-4 (Remote and Local Unit)

Additional Images/Videos

NTI Part #: USB2-FOSC-4-Group
The XTENDEX® 4-Port USB 2.0 Extender via Fiber Optic Cable extends four USB devices up to 820 feet (250 meters) using a single SC singlemode or multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via a single-strand SC singlemode or multimode fiber optic cable.
  • ROHS Compliant 4-Port USB 2.0 Extender via Fiber Optic Cable up to 820 Feet – No Drivers Required
Scroll Down to Get Quote

Overview

The XTENDEX® 4-Port USB 2.0 Extender via Fiber Optic Cable extends four USB devices up to 820 feet (250 meters) using a single SC singlemode or multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to four USB devices. The local and remote units are interconnected via a single-strand SC singlemode or multimode fiber optic cable.

  • Supports fully transparent USB connections - compatible with USB PC computers (Windows 7/8/8.1/10) and their associated peripherals.
  • Extend self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.).
  • Signal transmission up to 820 feet (250 meters) via a single SC singlemode or multimode fiber optic cable.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Compliant with USB 2.0 specifications.
  • Each port supports full 500mA current.
  • Supports Plug-n-Play specification.
  • Low RFI/EMI for sensitive applications.
  • No drivers required.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Cables can be installed in conduit prior to extender installation.

Specifications

Local Unit
  • One female USB Type A connector.
  • One simplex female SC fiber optic port.
  • Compatible with USB PC computers (Windows 7/8/8.1/10)
Remote Unit
  • Four female USB Type A connectors.
  • One simplex female SC fiber optic port.
  • Supports high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Supports self-powered and/or bus-powered USB devices.
  • Compatible with USB touch screen monitors.
Power
  • Local unit: powered from attached computer.
  • Remote unit:85 to 265 VAC at 50 or 60 Hz via AC adapter.
    • Each port supports full 500mA current
Environmental
  • Operating temperature: -4 to 158°F (-20 to 70°C).
  • Storage temperature: -40 to 185°F (-40 to 85°C).
  • Operating/storage relative humidity: 0 to 95% non-condensing RH.
Dimensions
  • WxDxH: 4.09x4.09x1.10 in (104x104x28 mm).
Regulatory Approvals
  • RoHS
Max Distance
  • 820 feet (250 meters) over a single SC singlemode or multimode fiber optic cable.
Cables
  • 0.5-meter USB Type A male-to-male interface cable included.
  • Use a simplex SC singlemode/multimode fiber optic cable to extend the receiver from the transmitter up to 820 feet (250 meters).(Cables not included.)
    • Use FIBER-AD-SS-LCFSCM to convert a male simplex LC singlemode connector to a male simplex SC singlemode connector.
    • Use FIBER-AD-SS-STFSCM to convert a male simplex ST singlemode connector to a male simplex SC singlemode connector.
Package Includes
  • One transmitter unit
  • One receiver unit
  • One 0.5-meter USB Type A male-to-male cable
  • One power supply
  • User manual

Application Drawings

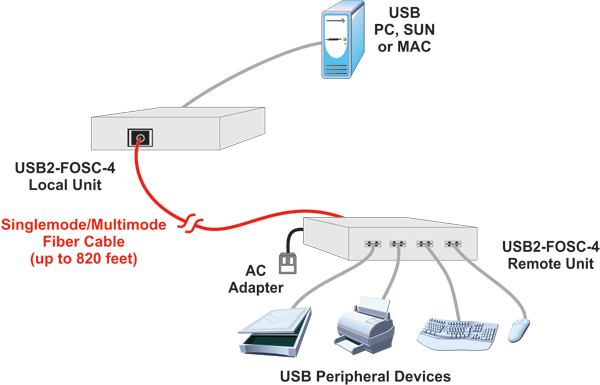

  • 4-Port USB 2.0 Extender via Fiber Optic Cable up to 820 Feet
    4-Port USB 2.0 Extender via Fiber Optic Cable up to 820 Feet
    How to extend four USB devices up to 820 feet (250 meters) using a single SC singlemode or multimode fiber optic cable

Downloads

Data Sheet:
User Manual:

(0)USB 2.0 Extender via Fiber Optic Cable, 4-Port

NTI Part # Description Qty
USB2-FOSC-4

Related Items :

(0)Fiber Optic Connector Adapters

NTI Part # Description Qty
FIBER-AD-SS-LCFSCM Female LC to Male SC Simplex Singlemode Fiber Optic Adapter
FIBER-AD-SS-STFSCM Female ST to Male SC Simplex Singlemode Fiber Optic Adapter
