E-STSP-xx
E-STSP-xx

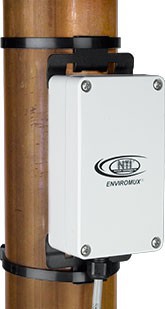

Pipe Temperature Sensor, -40 to 185°F (-40 to 85°C)

NTI Part #: E-STSP-7
Mount to the outside of a thin walled steel, copper, or aluminum pipe (up to 1/4" wall).
Copper contact transmits surface temperature to thermal sensor.

Overview

  • Mount to the outside of a thin walled steel, copper, or aluminum pipe (up to 1/4" wall).
  • Copper contact transmits surface temperature to thermal sensor.
  • Weatherproof enclosure designed to IP65 specifications.
  • Applications from -40 to 185°F (-40 to 85°C).
  • Accurate to within ±1.0°F (±0.5°C).
  • MTBF: 3,540,911 hours.
  • Response time: <1 minute for temperature changes of ±2°F.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • Self centering mounting bracket available for 1-3" (25 mm) diameter pipe, and 3-6.5" (76 mm) diameter pipe (included).
    • Included adjustable cable ties secure mounting bracket to pipe.
  • Length: 7 feet.
  • Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
  • Current consumption: 14mA @ 5VDC.
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
  • Regulatory approvals: CE, RoHS.
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
