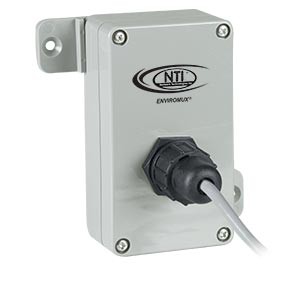

Outdoor Temperature Sensor, -40 to 185°F (-40 to 85°C)

NTI Part #: E-STS-O
Applications from -40°F to 185°F (-40°C to 85°C). Weatherproof enclosure designed to IP67 specifications.

Overview

  • Applications from -40 to 185°F (-40 to 85°C).
  • Accurate to within ±0.9°F (±0.5°C).
  • Weatherproof enclosure.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • Quick release waterproof RJ45 connector.
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m).
  • MTBF: 1,860,032 hours.
  • Dimensions WxDxH (in): 4.53x2.56x2.13 (115x65x54 mm).
  • Current consumption: 14mA @ 5VDC.
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
