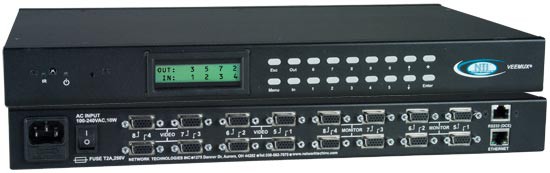

VGA video matrix switch, 8 in 8 out, Ethernet/RS232 control, rackmounted

NTI Part #: SM-8X8-15V-LC
VGA video matrix switch, 8 in 8 out, Ethernet/RS232 control, rackmounted
VGA video matrix switch, 8 in 8 out, Ethernet/RS232 control, rackmounted
NTI Part #: SM-8X8-15V-LC
Video Matrix Switch, 8 input and 8 output

Overview

Video Matrix Switch, 8 input and 8 output

Specifications

Video Input
  • Eight female 15-pin HD connectors.
  • Impedance: 75 Ohms.
Video Output
  • Eight female 15-pin HD connectors.
  • 1920x1200 video resolution with no degradation.
  • Impedance: 75 Ohms.
  • Bandwidth: 200 Mhz, fully loaded
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 5 W
Cables
  • Interface cables between the computers and the switch are required for proper operation.
  • Recommended NTI video cables:
    • VGA interface cable (VEXT-xx-MM).
    • VGA to BNC cable (VINT).
  • Cables not included.
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
