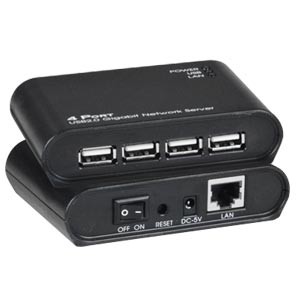

XTENDEX® USB-IP-4LC
XTENDEX® USB-IP-4LC

Low-Cost USB Over IP Extender

NTI Part #: USB-IP-4LC
The XTENDEX® USB Over IP Extender allows Windows PCs to connect to four USB devices on the same subnet, eliminating the need for locally-attached host PCs.

Overview

The XTENDEX® USB Over IP Extender allows Windows PCs to connect to four USB devices on the same subnet, eliminating the need for locally-attached host PCs. USB peripheral devices can be centrally managed and monitored from a remote server or PC via the web interface.


USB-IP-4LC supports USB devices such as USB hard drives, USB flash drives, USB card readers, USB webcams, USB scanners, USB to serial converters, USB multi-function printers (MFP), or other USB devices to be shared on a network.


  • Extends USB cabling distance to 330 feet (100 meters).
    • Extend past 330 feet (100 meters) by connecting multiple hubs/switches within the same subnet.
  • Transfer data over a 1000Base-T Gigabit Network.
    • Will not communicate to another subnet.
  • Creates systems redundancy and increases security since host PC can be placed in a remote location.
  • Access and monitor devices over a TCP/IP connection.
  • Simplifies operations and reduces IT support.
  • Supports true plug-and-play functionality.
  • USB 1.1 and 2.0 compatible.
  • Acquires IP address via DHCP when plugged in to a network.
    • IP address can be changed.
    • Once a static IP address is assigned, it can be directly connected to the LAN port of a PC - no crossover cable required.
