Environment monitoring system management software, manage 50 ENVIROMUX and IPDU-S4/8 units

NTI Part #: E-MNG-0050
E-MNG-0050
E-MNG-0050
NTI Part #: E-MNG-0050

Optional Management Software for E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), and IPDU-S4/8 units. Monitor and configure up to 50 E and IPDU-S4/8 units.

Overview

Optional Management Software for E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), and IPDU-S4/8 units.

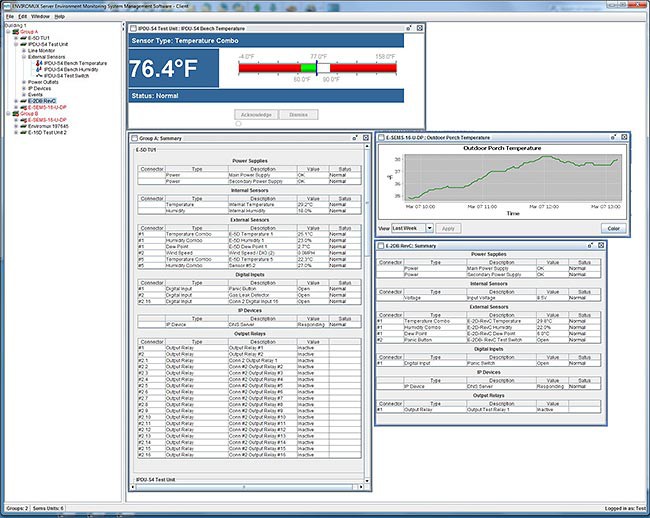

  • Intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), IPDU-S4/8 units and all connected sensors via Ethernet.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with Advanced-Cascade Configuration of E-2D/5D/16D units.
  • Units may be monitored and configured individually or in a group.
    • Changes can be pushed to all units in a group at once.
      • E.g. new users, mail server, network settings, security settings, system settings, etc.
  • Display values and status for individual sensors or list of sensors.
  • Scrolling sensor summary pages can include selected sensors from a specific unit, all units, or a pre-configured group of units.
    • Filter specific sensors from multiple units for close monitoring.
  • Sensor history graph shows readings from up to the last 120 days.
  • Client/server architecture
    • Server application actively polls all units for status information as well as listen for alerts from all units.
    • Client application communicates with the server to read statuses and to deploy configuration changes.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Requires Java Runtime Environment 1.5 or later.
  • NTI will provide customer, without charge, copies of any appropriate updates/enhancements for 12 months. This software update service is optionally extendable every twelve months for 20% of list price.
Request Server/Client Software Evaluation

(Requires ENVIROMUX unit)

Request Client Software Demo

(Does NOT require ENVIROMUX unit)
