Mini DisplayPort to VGA Converter onverts digital DisplayPort signal to analog VGA video
DP-VGA-CNVTR
DP-VGA-CNVTR

Additional Images/Videos

DisplayPort to VGA Converter

NTI Part #: DP-VGA-CNVTR-Group
The DisplayPort to VGA Converter changes your computer's digital DisplayPort signal to analog VGA video. The converter generates all the compatible digital to analog conversion signals to make the connection between the DisplayPort input and the VGA output work.
Also known as: DisplayPort VGA converter, MAC compatible mini DisplayPort to vga, digital to analog, DP to VGA adapter cable, convert digital video signal to analog monitor
Product Highlight
  • MAC Compatible
  • ROHS Compliant DisplayPort to VGA Converter
  • CE Compliant DisplayPort to VGA Converter
Scroll Down to Get Quote

Overview

The DisplayPort to VGA Converter changes your computer's digital DisplayPort signal to analog VGA video. The converter generates all of the compatible digital to analog conversion signals to make the connection between the DisplayPort input and the VGA output work.
  • Available in two models.
    • Male DisplayPort to female VGA adapter cable
    • Male mini DisplayPort to Female VGA adapter cable
  • Supports computer resolutions to 1920x1200 and HDTV resolutions to 1080p.
  • Compliant with DisplayPort 1.1 standards.
  • Supports Plug-n-Play specification.
  • Hot-plug capability.
  • Supports the DDC2B protocol.
  • No external power supply.

Specifications

Video
  • Input connector:
    • DP-VGA-CNVTR: male DisplayPort
    • DPM-VGA-CNVTR: male mini DisplayPort
  • Output connector: female 15-pin HD
  • Supports computer resolutions to 1920x1200 and HDTV resolutions to 1080p.
  • Compliant with DisplayPort 1.1 standards at 1.62/2.7 Gbps data rate (Low bit rate/High bit rate)
  • Supports the DDC2B protocol.
Regulatory Approvals
  • DPM-VGA-CNVTR: CE, RoHS
Dimensions
  • DP-VGA-CNVTR
    • VGA Connector WxDxH: 1.76x1.764x.60 in (44.7x44.8x15.2 mm)
    • Cable Length: 5.9 inches (150 millimeters)
  • DPM-VGA-CNVTR
    • VGA Connector WxDxH: 1.4x1.9x0.8 in (36x48x20 mm)
    • Cable Length: 6.75 inches (171 millimeters)
Warranty
  • Two years

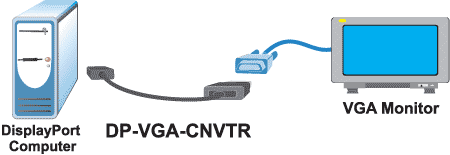

Application Drawings

  • DisplayPort to VGA Converter
    DisplayPort to VGA Converter
    How to connect a DisplayPort computer to a VGA Monitor

(0)DisplayPort to VGA Converters

NTI Part # Description Qty
DP-VGA-CNVTR DisplayPort to VGA Converter
DPM-VGA-CNVTR DisplayPort to VGA Converter
