E-S60VDC
E-S60VDC

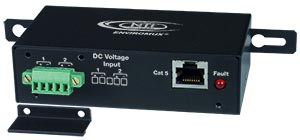

DC Voltage Monitor

NTI Part #: E-S60VDC
Monitors up to two DC voltages: -60VDC ~ 0VDC or 0VDC ~ 60VDC.

Overview

  • Monitors up to two DC voltages: -60VDC ~ 0VDC or 0VDC ~ 60VDC
  • Accuracy: ± 100mV ± 1% reading
  • Connector: Screw Terminal, 5-position
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m)
  • Current consumption: 30mA @ 12VDC.
  • Powered by E-2D/5D/16D.
  • Includes Mounting Hardware
  • Regulatory approvals: CE, RoHS
