E-BCN-R
E-BCN-R

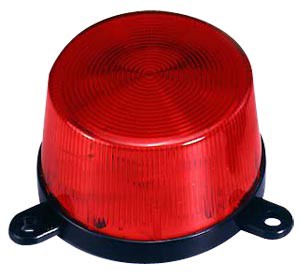

Alarm Beacon – Small: 2.75x1.69 in (70x43 mm)

NTI Part #: E-BCN-R
Emits flashing red light when activated. Flash rate: 90 per minute. Screw Terminal.

Overview

  • Emits flashing red light when activated
  • Flash Rate: 90 per minute
  • 2-wire interface
  • Input voltage: 12VDC
  • Power consumption: 3W
  • Maximum cable length: 500 ft (152 m)
  • Dimensions WxH: 2.75x1.69 in (70x43 mm)
  • Material: ABS resin base, polycarbonate/acrylic lens
  • Current consumption: 180mA @ 12VDC
  • Powered by E-2D/5D/16D
  • Operating temperature: -22 to 140°F (-30 to 60°C).
  • Regulatory approvals: RoHS
