E-WIFI-RE
E-WIFI-RE

WiFi Range Extender, 300 Mbps

NTI Part #: E-WIFI-RE
Environment Monitoring System WiFi Range Extender
Use with an ENVIROMUX® unit to create a Wireless Environment Monitoring System

Overview

  • Use with an ENVIROMUX unit to create a Wireless Environment Monitoring System.
    • Configure, monitor, and receive alerts without the use of a wired network connection.
  • Ideal in areas where connecting to a wired network is difficult.
  • Connect to the ENVIROMUX system using the push button, a web browser, or mobile app.
  • Wireless speeds up to 300 Mbps
  • Works with any Wi-Fi router or wireless access point.
  • Frequency range: 2.4 to 2.5 GHz
  • Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Wireless security: 64-bit, 128-bit, 152-bit, WEP WPA-PSK, WPA2-PSK
  • Dimensions WxDxH(in): 3.15x3.06x3.04 (80x77.8x77.3mm)
  • Environmental:
    • Operating Temperature: 32 to 104°F (0 to 40°C)
    • Storage Temperature: -40 to 158°F (-40 to 70°C)
    • Operating Humidity: 10 to 90% non-condensing
    • Storage Humidity: 5 to 90% non-condensing
  • Power:
    • Input: 110 to 240 VAC at 50 or 60 Hz.
    • Power plug: NEMA 1-15P
    • Max current: 300 mA
  • Compatible with:

Application Drawings

  • How to Create a Wireless Environment Monitoring System

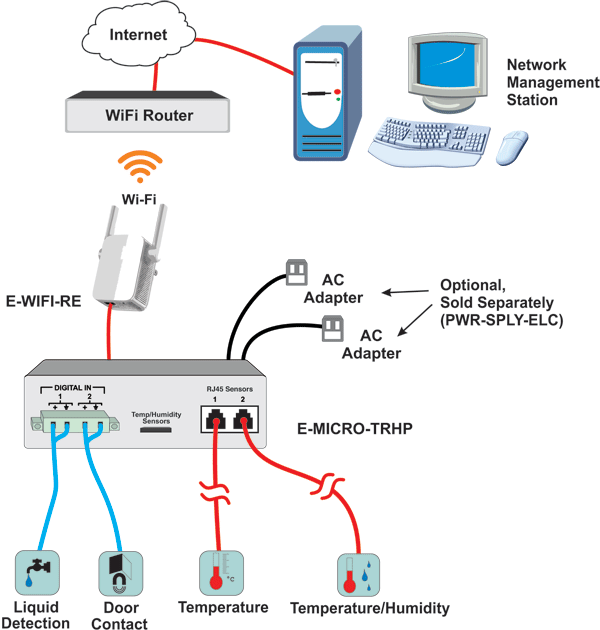

    How to Create a Wireless Environment Monitoring System
    Use the E-MICRO-T(RHP) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System. This will allow you to configure, monitor, and receive alerts without the use of a wired network connection.

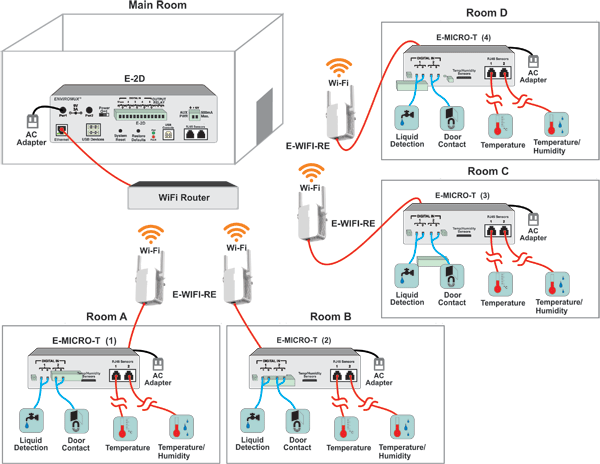

  • How to Wirelessly Connect Remote Temperature/Humidity Sensors over IP to the E-2D
    Loading image...
    The E-MICRO-T(RHP) Remote Temperature/Humidity Sensors over IP can function as an IP-connected remote sensor for the E-2D. To add a remote IP sensor, access the web interface and select Monitoring > IP Sensors. Click on the "Add New IP Sensor" link on the bottom and key in the description and IP address of the E-MICRO-T(RHP) to connect it to the E-2D. Up to eight remote IP sensors can be connected. All sensors connected, including the Remote Temperature/Humidity Sensors over IP, to the E-2D can be viewed on one summary page. Using a wireless router, connect the E-MICRO-T(RHP) to a Wi-Fi Range Extender to create a Wireless Environment Monitoring System. This will allow you to configure, monitor, and receive alerts without the use of a wired network connection.
