Ultrasonic Level Transmitter

NTI Part #: E-ULT
For small tanks 49.2 in. or less. Enables flexible design applications for system integration or retrofit of floats, conductance and pressure sensors.

Overview

  • General purpose, non-contact ultrasonic level transmitter provides real-time monitoring of fluid levels
    • Updates readings at a minimum rate of 1 second intervals.
  • Compact sensor with 2" (51 mm) dead band and beam width optimized for small tanks 49" (1,245 mm) or less.
  • Provides two-wire 4-20 mA analog output.
  • Includes Fob USB interface tool for configuring the transmitter.
  • For use in small tanks with non-foaming, non-condensing or highly vaporous media such as chemical, water, wastewater, diesel fuel, and oil.
    • Ideal for fluid handling and chemical feed applications integrating process or control automation of small tanks mounted on tools, skids or machines.
  • Requires the E-S420MA-24V to operate with E-2D/5D/16D.
    • Maximum cable length: 1000 ft (305m)
    • Powered by E-2D/5D/16D.
  • Regulatory approvals: CE, cFMus
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.

Application Notes

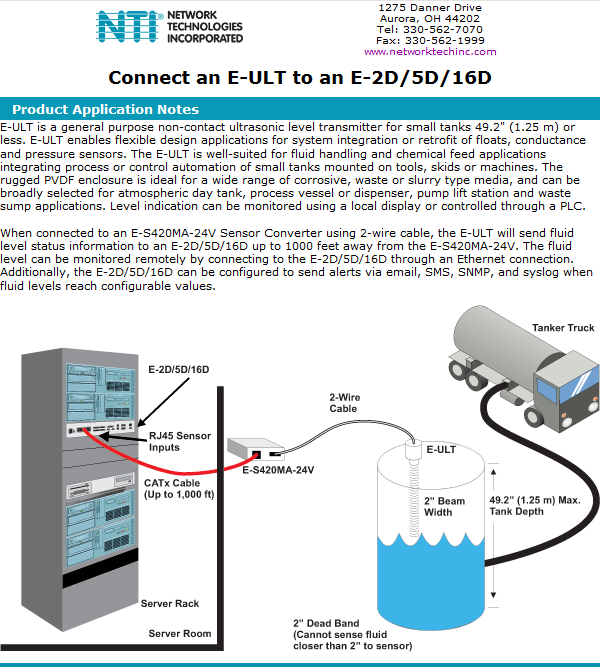

  • Application Note: Connect an E-ULT to an E-2D/5D/16D
    Application Note: Connect an E-ULT to an E-2D/5D/16D
