Spot Liquid Detector with Built-In Visual & Audible Alarm
Spot Liquid Detector with Built-In Visual & Audible Alarm

Additional Images/Videos

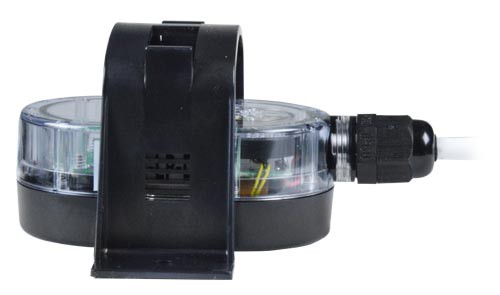

Spot Liquid Detector with Built-In Visual & Audible Alarm

NTI Part #: E-SLDO-A
Use to detect fluids in confined areas. SPDT alarm contacts. Audible alarm signal – continuously on.

Overview

  • Use to detect conductive fluids in confined areas
    • Place the sensor on a flat surface under HVAC equipment, dishwashers, washing machines, refrigerators, compressors, or electrical switchgear rooms and other potential leakage areas.
  • Water level detection range: 0.03 to 0.53" (0.79 to 13 mm).
  • DPDT alarm contacts.
  • Audible alarm signal: 85 dB at 1 foot distance.
  • Red LED for visual alarm signal.
  • Green LED for power
  • Current consumption: 30mA typical, 85mA maximum @ 12VDC.
  • Dimensions WxDxH: 2x4.13x0.19 in (51x105x30 mm).
  • Includes adjustable mounting bracket attached via adhesive strips or two screws.
  • Operating temperature: 32 to 140°F (0 to 60°C).
  • Powered by E-2D/5D/16D.
  • Cable length: 4.9 ft (1.5 m)
    • Maximum cable length: 1000 ft (305m)
  • Regulatory approvals: CE, RoHS.
