E-GBS
E-GBS

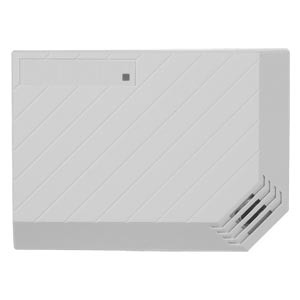

Glass Break Detection Sensor

NTI Part #: E-GBS
Acoustically detects the cracking of glass. Adjustable sensitivity.

Overview

  • Acoustically detects the cracking of common framed glass types such as plate, tempered, wired and laminate.
  • Adjustable sensitivity and digital signal processing for greater detection sensitivity and improved false alarm immunity.
  • Includes mounting hardware for wall and ceiling.
  • Detection range: 25 feet.
    • Reduced by drapes and/or blinds.
  • Connect to RJ45 or digital input sensor ports.
  • Screw terminal
    • To connect to the RJ45 inputs use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the unterminated end to the sensor screw terminal.
  • Maximum cable length: 1,000 ft (305 m).
  • Powered by E-2D/5D/16D.
