Enterprise Server Environment Monitoring System

Enterprise Server Environment Monitoring System

NTI Part #: E-SEMS-16U-Group

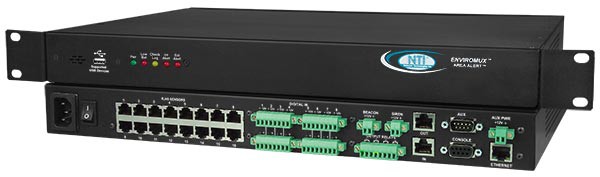

E-SEMS-16U (Front & Back)

Additional Images/Videos

NTI Part #: E-SEMS-16U-Group

The E-SEMS-16 supports 16 external configurable sensors, 8 digital inputs, and 4 output relays for control of external devices. The system also includes three internal sensors: temperature, humidity and power. It is available with an optional USB port for USB modem or USB flash drive.

Also known as: Remote Environment Monitoring System, monitor networking closets, server room alert, IP temperature sensor, humidity sensor, computer room humidity probe

Product Highlights

Now Supporting SNMPv3
USB option for flash drives and user-programmable IP camera snapshots

Designed and Manufactured in the U.S.A.

Scroll Down to Get Quote

Overview

The ENVIROMUX® Server Environment Monitoring System monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, LEDs, alarm beacon, siren, web page, network management (SNMP), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via external GSM). The system includes three internal sensors: temperature, humidity and power. It also supports 16 external configurable sensors and eight digital input sensors.

Monitor and manage server room environmental and security conditions over IP.
Create alarm signals with customized input parameters.
Four output relays for control of external devices.
- Relays activate upon alarm or via the user interface.
Supports IP network video cameras for live view of any facility.
- One integrated view - see different Web cameras side-by-side with physical and environmental parameters.
- With the USB option, any programmed event can trigger a snapshot from an IP camera.
Monitor (ping) up to 64 IP network devices.
- Alerts are sent if devices are not responding.
Available sensors include: temperature, humidity, smoke, water, glass break, motion, vibration, 4-20 mA converter, voltage detector, and more.
Stores up to 1,000 event and data entries in system data log.
- The log can be downloaded as a tab-delimited plain text file, viewed via the web interface, or sent to up to 16 remote IP addresses using syslog.
- Automatically log to USB flash drive w/ USB model.

Integrates with various Open Source monitoring packages — Nagios and MRTG.
Provides power supply for all sensors.
Internal battery backup.
- Alerts are sent when there is a power outage and when power returns.
Available with optional dual power for connection to two separate power sources.
Available with optional 48VDC or 24VDC power.
Up to six units can be used together to increase the number of sensors connected.
- Connect up to six units via Ethernet connection or up to four units using CAT5 expansion cables to increase the number of sensors connected.
- Uses a single Web interface for all systems connected.
Available with optional USB port for downloading log data to USB flash drive.
Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 E-SEMS-16 units and all connected sensors.
1RU rack mount case is standard.
- The ENVIROMUX system can be mounted so that the sensor connectors are facing the front of the rack. Call an NTI product consultant for details.
Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.

Specifications

1. Power Port

110 or 230 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
Power consumption: 100 W max.
Connection for Earth Ground.
Fuse protection.
Optional 48VDC power (not shown).
- Accepts 36~72VDC (48VDC nominal).
Optional 24VDC power (not shown).
- Accepts 20~32VDC (24VDC nominal).
Optional dual power (not shown).
- Available on AC, 48VDC, and 24VDC models.
- If the first power source fails, the unit will automatically, without interruption, switch over to the second power source before switching to the battery backup.

2. RJ45 Sensor Ports

Sixteen RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, liquid detection, smoke detection, glass break, vibration and motion sensors.

3. Digital Inputs

Eight screw terminals pairs for connecting dry contact devices.
Input voltage: 0VDC to +25VDC.
Provides +12VDC, 50 mA.
Fuse protection.

4. Output Relays

Four screw terminal pairs.
Potential-free relay switch contacts.
Maximum switching load: 0.5A at 100 VAC, 1A at 30VDC

5. Beacon Port

One screw terminal pair.
Provides +12VDC, 180 mA to supply an alarm beacon.
Fuse protection

6. Siren Port

One screw terminal pair.
Provides +12VDC, 180 mA to supply a siren.
Fuse protection

7. Expansion Ports

Two RJ45 jacks.
A maximum of 4 systems can be cascaded to increase the number of sensor ports.
Uses a single Web interface for all systems connected.

8. Console Port

One female DB9 RS232 serial port for terminal access.

9. AUX Port

One male DB9 RS232 serial port for controlling and monitoring external equipment, such as a GSM or 3G modem.
- GSM modems supported: Teltonika WirelessCom/G10, Enfora GSM1218, MultiTech MTCBA-G-F2, Wavecom Fastrack M1306
3G modems supported: NetComm N3GS003, Option iCON 452

10. AUX Power Port

Provides +12 VDC, 150 mA.
Fuse protection

11. Ethernet Port

One 10/100 Base-T Ethernet port with RJ45 Ethernet connector.

Protocols

HTTP, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, Telnet, DHCP, SSL
Operates and configures via HTTP/HTTPS web page, Telnet or RS232 interface.
Alerts are sent using email, syslog, SMS messages and/or SNMP traps when any monitored environmental condition goes out of range of a configurable threshold.
- Alerts are posted in message log, which is accessible through Web user interface. The log can be downloaded as a tab-delimited plain text file.
- Sends notifications of alerts to a maximum of 17 email addresses, SNMP addresses and/or cell phone numbers. The users can configure the schedule when they will be alerted, as well as customize the e-mail subject line for each sensor alert.
- SNMP traps have unique OID's (Object Identifiers) for each sensor.
- OIDs for sensor and contact values for ENVIROMUX-SEMS-16.

Internal Temperature Sensor

Applications from 32 to 104°F (0 to 40°C).
Accurate to within ±1.35°F (±0.75°C).

Internal Humidity Sensor

Applications from 20 to 80% relative humidity at temperatures between 32 to 104°F (0 to 40°C).
Accurate to within ±5% relative humidity.

Internal Power Sensor

Measures mains voltage: 0 to 255 VAC.
Measures battery voltage: 0 to 20 VDC.
Alerts are sent when there is a power outage and when power returns.

Back-up Battery

Rechargeable sealed lead-acid battery.
- Battery removal/disposal instructions.
Provides back-up for one hour.

Optional USB Port

Female USB Type A connector for downloading log data to USB flash drive.

Dimensions

WxDxH: 19x9.5x1.75 in (483x241x44 mm)

Environmental

Operating temperature: 32 to 100°F (0 to 38°C).
Storage temperature: -22 to 140°F (-30 to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

MTBF

ENVIROMUX-SEMS-16: 56,709 hrs.

Regulatory Approvals

CE, RoHS

Warranty

Two years

Control Methods

Web Interface (view product demo)

Full configuration via Web-page.
Support for Extended ASCII characters.
Configure sensor thresholds and timing, alarm methods, alert formats and system data log.
View current sensor values and alert status.
- All sensors connected to the E-SEMS-16 can be viewed on one summary page.
- "Simulate"/"Clear" buttons for each sensor to test alert settings.
View entries stored in the system data log.
- The log can be downloaded as a tab-delimited plain text file.
Configure IP information (address, subnet mask, default gateway, DNS, etc.) and user administrative settings.
Administrate up to 16 users plus a root administrator.

Permissions, schedule and alert methods are configurable for each user.
Up to 8 users can access the web page at one time.

RS232 Control

Display and configure network settings (IP address, subnet mask, default gateway, DNS, SMTP, etc.), Enterprise settings, and time settings.
View current values and alert statuses for sensors/digital inputs/IP devices.
Configure SNMP
Serial baud rate: 9,600 to 115,200bps.
Data format: 1 start bit, 8 data bits, no parity, 1 stop bit.

Telnet

Similar functions as RS232 Control.
Security is ensured by password.

Network Operation

SNMP support, allowing integration into network management platforms.
Updating the system firmware.

Front Panel LED Indicators

"INT ALERT" — internal sensor goes out of range of a configurable threshold.
"EXT ALERT" — external sensor goes out of range of a configurable threshold.
"LOW BAT" — backup battery is low.
"CHECK LOG" — message is posted to the log.
"PWR" — indicates device is powered.

Open Source Monitoring Integration

Optional Management Software

Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 E-SEMS-16 units and all connected sensors.

Request Software Demo

"We have been using the NTI E-SEMS-16 sensor system for a few weeks now. So far we have been more than pleased with the scalability, ease of configuration, and functionality of the unit. We recommend this product to data centers of every size."

Nick Gray

Cyber Wurx LLC

St Louis, MO, USA
"I'd like take this opportunity to thank you for the outstanding level of service I have received from you. Our E-SEMS-16 has been installed and is the fit that we were looking for to monitor potential environmental threats. The interface is very user friendly. We will be purchasing additional sensors as the need arises and would highly recommend your product."

Josh Bell

Shields Health Care

Velancia, CA, USA
"We have been using the NTI E-SEMS-16 sensor system for a few weeks now. So far we have been more than pleased with the scalability, ease of configuration, and functionality of the unit. We recommend this product to data centers of every size."

William Bakhenberg

DBS International

Bethlehem, PA, USA
"NTI's E-MINI has allowed our federal agency to monitor temperature in critical areas should the building's HVAC fail. I was so impressed by it that we upgraded our main server room from the E-MINI to the E-SEMS-16, which will allow us to send cellular messages during power failures that affect our demarc. As the Network Engineer responsible for monitoring the agency's network faults and environmental variables, I can fulfill my duties knowing that NTI's products will alert me of a potential failure long before anyone becomes affected by it."

Philip Hutinet

Washington, DC, USA
"While shopping for environment monitoring equipment for our remote facilities, I came across NTI's website. One call got me all the information I needed on the E-SEMS-16. After sharing the information with everyone, we couldn't believe the flexibility of these units. NTI allowed us to demo one of the units for 30 days. The quality and flexibility of the product is great, plus NTI has a sensor for most anything you want to monitor. We placed another call to order two more units and all the sensors we needed. Now we can completely monitor and protect our remote sites just by logging in through a web browser."

Patrick Beard

Rice Belt Telephone Co

Weiner, AR, USA
"Between myself and my assistant, we are responsible for approximately 360 network devices at 4 different facilities. Several of these 360+ devices are wireless access points, routers, switches and our biggest nemeses, network based IP time clocks which are used for time and attendance purposes as well as logging on and off of jobs to track time.

"Being able to ping for up status of the non PC network IP devices through the E-SEMS-16 allows my assistant and I to attack a down device before it becomes a crisis."

Michael Wagner

Metal Technologies, Inc.

West Allis, WI, USA
"I am very satisfied with the performance of the E-SEMS-16, and I especially like the ease of operation."

James Husband

Reserach Data Inc

Richmond, VA, USA

(0)Enterprise Environment Monitoring System Management Software - Client/Server Architecture Supports E-2D/5D/16D, E-MICRO, and E-1W. Requires Java.

NTI Part #	Description	Qty
E-MNG-0010	Manage 10 ENVIROMUX and IPDU-S4/8 units
E-MNG-0050	Manage 50 ENVIROMUX and IPDU-S4/8 units
E-MNG-0100	Manage 100 ENVIROMUX and IPDU-S4/8 units
E-MNG-0500	Manage 500 ENVIROMUX and IPDU-S4/8 units
E-MNG-3000	Manage 3000 ENVIROMUX and IPDU-S4/8 units

(0)Temperature/Humidity Sensors

NTI Part #	Description	Qty
E-RTDT-140	100 Ohm Platinum RTD Transmitter, -20°F to 140°F (-28°C to 60°C)
E-RTDT-240	100 Ohm Platinum RTD Transmitter, -30°F to 240°F (-1°C to 115°C)
E-RTDT-1562	High-Accuracy Platinum RTD Transmitter, -328°F to 1562°F
E-RTDS-MP240	Mini Probe 100 Ohm RTD Sensor, -67°F to 240°F
E-RTDS-A221	All-Purpose 100 Ohm RTD Sensor, -67°F to 221°F
E-RTDS-D240	Duct 100 Ohm RTD Sensor, -67°F to 240°F
E-RTDS-ER230	Rugged Encapsulated 100 Ohm RTD Sensor, -30°F to 230°F
E-STS-O	Outdoor Temperature Sensor, -40 to 185°F (-40 to 85°C)

Collapse all Expand all Related Items :

(0)Smoke/Gas/Dust, Air Flow/Velocity, Weather/Outdoor, Pressure, Noise

NTI Part #	Description	Qty
E-WSS	Wind Speed Sensor/Anemometer
E-BPT	Barometric Pressure Transmitter
E-SDS-120V	Smoke Detection Sensor – 120VAC Wire-In with Battery Backup
E-RLY-SDS120V	Smoke Alarm Relay Module Compatible with E-SDS-120V
E-SDS	Smoke Detector with Built-In Fixed-Temperature 135°F (57°C) Heat Sensor – UL Approved
E-AV-K	Air Velocity Sensor - Requires E-S5VDC
E-CMD	Carbon Monoxide Detector - CO
E-CO2	Carbon Dioxide Detector - CO2
E-GD-MBP	Gas Detector — Methane, Butane, Propane

(0)Liquid & Chemical Detection Sensors

NTI Part #	Description	Qty
E-LD-SPDT	Liquid Detection, Spot Detector
E-SLDO-14	Compact-Size Spot Liquid Detector, Point Leak Detection Sensor
E-SLDO-A	Spot Liquid Detector with Built-In Visual & Audible Alarm
E-TLD-xx	Tape-Style Liquid Detector. To order, select Configure to specify Length of Tape Sensor (x)	Configure
E-CDSx-y	Legacy Chemical Detection Sensor. To order, select Length of Chemical Detection Cable (x), and length of 2-Wire Cable (y).	Configure
E-LDSx-y	Legacy Liquid Detection System, Rope-Style. To order, select Configure to specify Length of Water Sensor Cable (x), and length of 2-Wire Cable (y)	Configure

(0)Motion/Intrusion/Vibration Sensors

NTI Part #	Description	Qty
E-EBS	Emergency / Panic Button
E-GBS	Glass Break Detection Sensor
E-IMD-LC	Low-Cost Infrared Motion Sensor – CE Compliant
E-IMD-O	Outdoor Infrared Motion Detector
E-IMD-CM	Ceiling Mount Infrared Motion Sensor

(0)Access Control

NTI Part #	Description	Qty
E-ACK	Digital Keypad
E-EDR-SF	Electric Strike Door Release (fail safe)
E-EDR-SCR-P	Electric Strike Door Release (fail secure)

(0)Alert/Communications Accessories

NTI Part #	Description	Qty
E-BCN-R	Alarm Beacon – Small: 2.75x1.69 in (70x43 mm)
E-BCN-RL	Alarm Beacon – Large: 3.94x3.46 in (100x88 mm)
E-SRN-M	Piezo Siren, 108 dB

(0)Power Relays and Sensors

NTI Part #	Description	Qty
E-S60VDC	DC Voltage Monitor

(0)System Accessories

NTI Part #	Qty

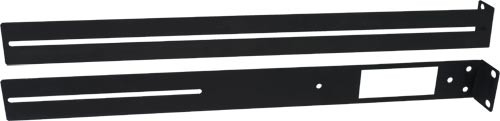

E-RL-16D

(0)Sensor Accessories

NTI Part #	Description	Qty
E-S5VDC	12VDC Sensor Converter
E-S420MA-24V	4-20mA Sensor Converter
E-2W-xx-CONF	22 AWG Bonded Parallel Cable. To order, select Configure to specify Length of Cable (x)	Configure
E-CLP10-LD	Self-Adhesive Clips for Liquid/Chemical Sensor Rope
