E-EBS
E-EBS

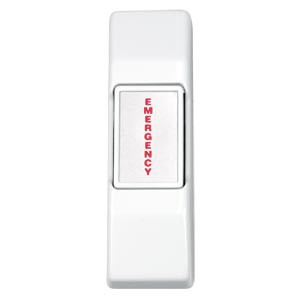

Emergency/Panic Button

NTI Part #: E-EBS
Sends activation signal when button is pressed. For normally closed or normally open circuit connections. 2-wire interface. Screw terminal.

Overview

  • Sends activation signal when button is pressed.
  • For normally closed or normally open circuit connections.
  • Screw terminal.
    • Connect to digital input or RJ45 sensor port on an ENVIROMUX system.
      • To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
      • To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
  • Maximum cable length: 1,000 ft (305 m)
  • Dimensions WxDxH: 0.9x0.6x3 in (23x14x76 mm)
  • Regulatory approvals: RoHS
