E-S420MA-24V
E-S420MA-24V

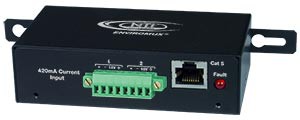

4-20mA Sensor Converter

NTI Part #: E-S420MA-24V
External RJ45 device monitors up to two 4-20mA analog sensors. Supports ISA Type 2, ISA Type 3, and ISA Type 4 sensors.

Overview

  • External RJ45 device monitors up to two 4-20 mA analog sensors
  • Supports ISA Type 2, ISA Type 3, and ISA Type 4 sensors
  • Provides 24VDC, 25mA for each sensor
  • Connector: Screw Terminal, 8-position.
  • Supports CAT5/5e/6 cable up to 500 ft. (152 m)
  • Includes Mounting Hardware
  • Dimensions (WxDxH): 4.15x2.3x1.2" (105x58x30 mm)
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
  • Regulatory approvals: RoHS.
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the E unit.
