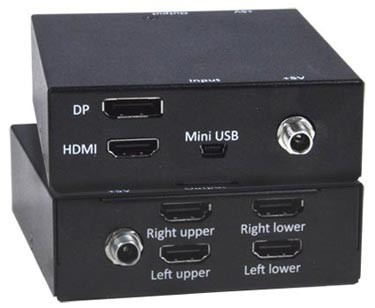

SPLITMUX-VWC-HDDPI-4HDO (Front & Back)
SPLITMUX-VWC-HDDPI-4HDO (Front & Back)

2x2 1080p Video Wall Processor – HDMI/DisplayPort Input & HDMI Outputs

NTI Part #: SPLITMUX-VWC-HDDPI-4HDO
Display the video from one HDMI or DisplayPort video source across four 1080p HDMI monitors. Cascade processors to create large video walls – 4x4, 8x8, 16x16, 32x32, etc

Overview

The SPLITMUX® HDMI/DisplayPort Video Wall Processor displays video from one HDMI or DisplayPort video source across four 1080p HDMI monitors to form one large screen – 2x2 video wall.

  • Use to create a 2x2 video wall – 4 monitors tiled together to form one large screen.
  • Supports 1920x1080 and 1920x1200 (WUXGA) input resolutions, and 1920x1080 output resolution (fixed for each port).
  • Cascade processors to create large video walls – 4x4, 8x8, 16x16, 32x32, etc.
  • Compliant with HDMI 1.4 and DisplayPort 1.2a specifications.
  • Fluid, real-time video performance with 60 frames per second (fps).
  • Each monitor simultaneously plays the audio.
    • Supported audio formats: LPCM 2/5.1/7.1, Dolby, DTS.
  • Any DVI source or display can be connected by using the DVI-HD-xx-MM cable (not included).
  • Quick and easy plug-and-play installation - no drivers or software.
  • Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.

NOTE: Does NOT support HDCP.
