E-S5VDC
E-S5VDC

12VDC Sensor Converter

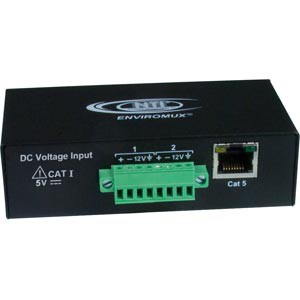

NTI Part #: E-S5VDC
5 V DC Sensor Converter. External RJ45 device monitors up to two linear DC sensors, 0 ~ 5 V DC. 8-position Screw Terminal. Compatible with E-2D/5D/16D.

Overview

  • External RJ45 device monitors up to two linear DC sensors, 0VDC ~ 5VDC
  • Output for each sensor: 12VDC, 25 mA
  • Connector: Screw Terminal, 8-position.
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m)
  • Includes Mounting Hardware
  • Powered by E-2D/5D/16D.
  • MTBF: 1,956,288 hrs.
  • Compatible with E-2D/5D/16D.
  • Regulatory approvals: CE, RoHS.

Application Notes

  • Measure Air Velocity in a Server Room

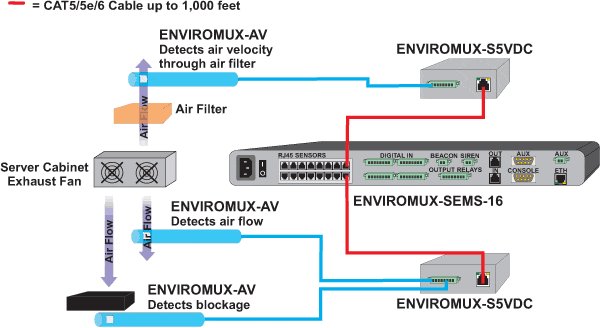

    Measure Air Velocity in a Server Room
    The ENVIROMUX-AV is a reliable sensor for measurement of air velocity. Up to two air velocity sensors can be connected to the ENVIROMUX-S5VDC sensor converter box. The ENVIROMUX-S5VDC can be located up to 1,000 feet (305 meters) away from the ENVIROMUX-2D/5D/16D via CAT5/5e/6 cable.

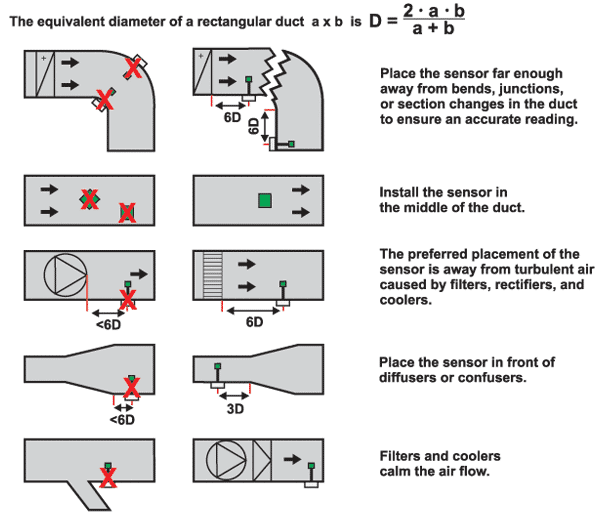

  • Air Velocity Sensor Placement in Air Duct
    Loading image...
    Correct positioning the ENVIROMUX-AV Air Velocity Sensor is critical for reliable and accurate readings of air velocity in ducts. The Air Velocity sensor should be placed far enough from sources of air turbulence in the duct. The minimum distance the sensor should be placed from the source of turbulence is a function of the duct's diameter.
